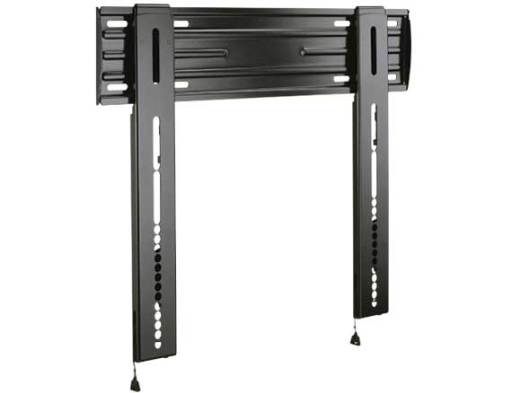

HDPro® Super Slim Fixed-Position Wall Mount for 32" - 50" flat-panel TVs
Super slim fixed-position wall mount for 32"-50" displays, featuring lateral shift and ClickStand® cable access
The Sanus ML11-B2 HDPro® Super Slim mount is designed to provide an ultra-low profile installation, placing displays as close to the wall as possible for a sleek aesthetic. This fixed-position mount is engineered to support 32" to 50" flat-panel TVs with a weight capacity of 100 lbs (45.4 kg). To assist with post-installation placement, the mount features ProSet® technology for height and leveling micro-adjustments, alongside lateral shift capabilities that allow the TV to move left and right on the wall plate to accommodate off-center studs. For cable management, integrated ClickStand® technology maintains a small gap at the bottom of the TV to allow for easy access to connections without removing the display. Additionally, the mount includes hidden quick-release tabs on both mounting brackets to facilitate unlocking the TV from the wall plate. This UL Certified mount is compatible with a wide range of VESA patterns, including 400 x 400mm and 500 x 500mm, ensuring universal fitment for most modern displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 3.15 in (8 cm) |
| Height | 18 in (45.7 cm) |
| Package Depth | 6.9 in (17.5 cm) |
| Package Height | 1.8 in (4.6 cm) |
| Package Width | 28.7 in (72.9 cm) |
| Product Weight | 6.7 lbs (3 kg) |
| Shipping Dimensions | 29.71" x 7.24" x 1.93" (754.7 x 183.9 x 49.1 mm) |
| Shipping Weight | 9.27 lbs (4.2 kg) |
All other specifications 10
| Typical Screen Size | 32" - 50" (813mm - 1270mm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 22.7 in (57.7 cm) |
| Adjustability | FixedLateral Shift |
| Application | Wall |
| Color | Black |
| Installation Items | 3/16" Drill Bit3/8" Masonry Bit - Concrete InstallationsAwlElectric DrillHammerLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Universal Mounting | Yes |
| UPC | 793795527844 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm500 x 500mm |
Resources
Verified fitment
Questions about this part
Will the Sanus ML11-B2 fit my specific TV?
Yes, it is verified against 11,104 display models from 268 manufacturers. Examples include Samsung 320MP, Sony 50BZ30P, LG 26LC2, and Panasonic 55VW3KD.
How do I access cables behind the TV without unmounting it?
The ML11-B2 features ClickStand® technology which holds the bottom of the TV away from the wall, and quick-release tabs on the mounting brackets for easy access.
Can I adjust the TV position after it is mounted to the wall?
Yes. Use the lateral shift feature to move the TV side-to-side and the ProSet® feature for height and leveling micro-adjustments.
What tools do I need to install the ML11-B2?
Required tools include an electric drill, hammer, level, tape measure, pencil, stud finder, Phillips head screwdriver, 3/16" drill bit, and a 3/8" masonry bit for concrete.
What is the maximum weight capacity for this mount?
The ML11-B2 is rated for a weight capacity of 100 lbs (45.4 kg) for displays in the 32" to 50" size range.
