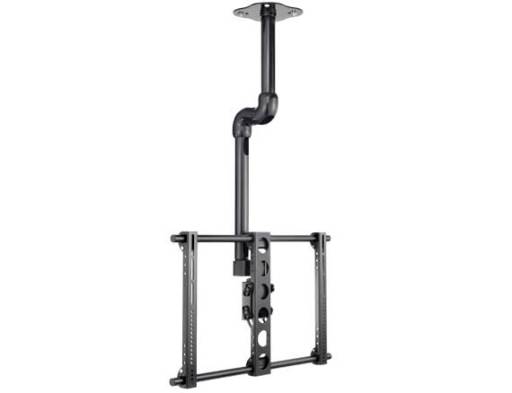

Tilt & Swivel Ceiling Mount for 37" - 70" flat-panel TVs - LC1A-B1
Ceiling mount for 37" to 70" displays with Virtual Axis tilt, 55° swivel, and integrated cable management
The Sanus LC1A-B1 is a tilt and swivel ceiling mount designed for 37" to 70" flat-panel TVs. This solution is ideal for installations where wall mounting is not feasible, such as corner placements or high-ceiling environments. It features Sanus Virtual Axis® technology, which allows you to tilt the display up or down with a simple touch of a finger. This mount offers a swivel range of +55° / -55° and a tilt range of +15° / -5° to ensure optimal viewing angles from various positions in a room. To maintain a clean installation, the unit includes a dedicated wire management channel to conceal and route cables from the ceiling to the TV. The mount provides a 6° rotation capability to help ensure the display is perfectly level after mounting. This UL Listed assembly includes adapters for wood joists or solid surface ceilings and two pipe lengths for multiple configuration options. It is compatible with a wide variety of VESA mounting patterns for universal support.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 46 in (116.8 cm) |
| Package Depth | 14.5 in (36.8 cm) |
| Package Height | 3.5 in (8.9 cm) |
| Package Width | 30.25 in (76.8 cm) |
| Shipping Dimensions | 31" x 15" x 3.75" (787.4 x 381 x 95.3 mm) |
| Typical Screen Size | 37" - 70" (940mm - 1778mm) |
| Weight Capacity | 175 lbs (79.4 kg) |
| Width | 29.5 in (74.9 cm) |
All other specifications 11
| Adjustability | SwivelTilt |
| Application | Ceiling |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/16" Drill BitAwlElectric DrillPhillips Head ScrewdriverStud FinderWrench |
| Roll | -6° / +6° |
| Swivel | +55° / -55° |
| Tilt | +15° / -5° |
| Universal Mounting | Yes |
| UPC | 793795363305 |
| VESA Mounting Pattern | 200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm600 x 100mm600 x 200 mm600 x 300mm600 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will this mount fit my display?
The LC1A-B1 is compatible with 37" to 70" displays and supports a wide range of VESA patterns, including 200x100mm, 400x400mm, and 600x400mm.
How much weight can the LC1A-B1 support?
This ceiling mount has a total weight capacity of 175 lbs (79.4 kg) for your flat-panel display.
What tools are required for installation?
Installers will need an electric drill, a 3/16" drill bit, a stud finder, a wrench, a 1/2" socket wrench, a Phillips head screwdriver, and an awl.
How much rotation and tilt is available?
The mount provides a swivel range of +55° / -55° and a tilt range of +15° / -5° to achieve the correct viewing angle.
Which document is needed for submittals?
The LC1A - Technical Drawing (PDF) is available for technical submittals and dimensional verification.
