TiLED™ Right dvLED Wall Mount for SHARP NEC E Series, 3 Displays Tall
Right-side structural component for SHARP NEC E Series dvLED video walls, supporting 3 displays in landscape orientation

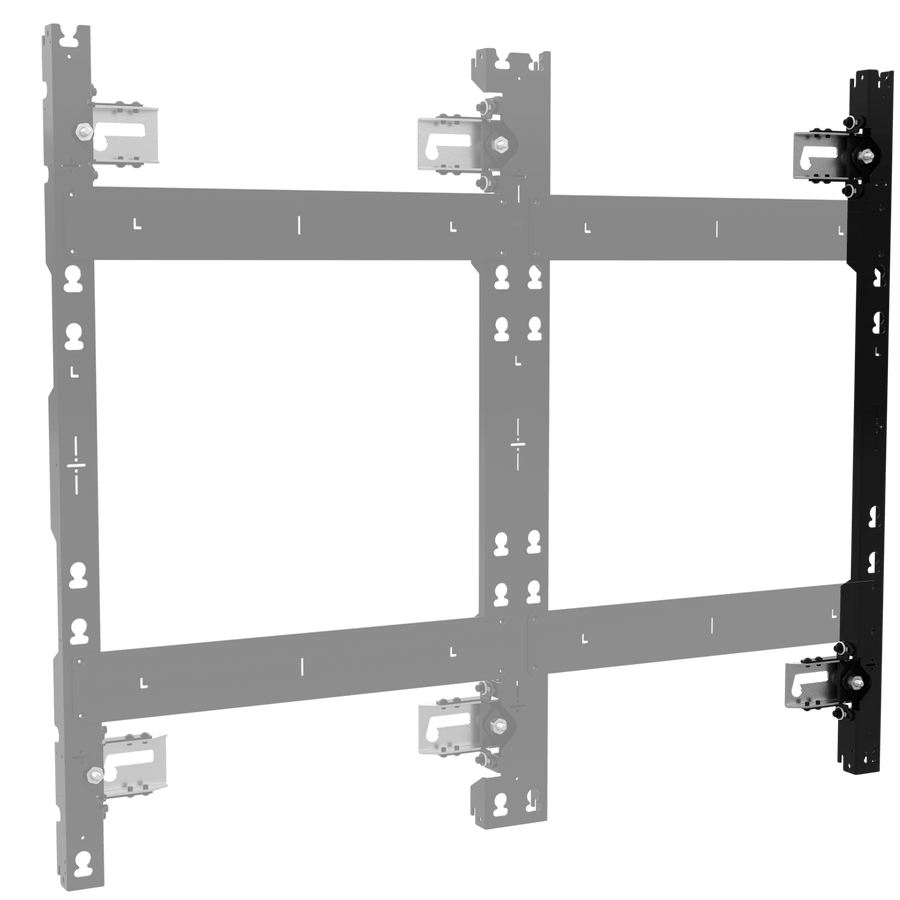

The Chief TILD1X3NEC1-R is a specialized right-side structural mounting component designed for SHARP NEC E Series dvLED video walls. This part is part of a modular system that allows integrators to build custom configurations by combining left, middle, and right components. This specific SKU is configured for a 3-display landscape orientation, providing the necessary structural support for a multi-display array. Precision is critical in LED video wall installations, and the TiLED™ system facilitates exact alignment through three axes of adjustment. The X-axis lateral shift enables precise horizontal positioning, while the Y-axis vertical shift allows for perfect cabinet-to-cabinet alignment. To ensure a perfectly flat mounting surface, the system includes Z-axis plumb adjustments of 0.75" (19 mm) to compensate for wall imperfections. This mount accommodates an equipment depth range of 3.29" to 4.04" (84mm-103mm) per display. Each individual display in the array must not exceed a weight capacity of 20 lbs (9.1 kg).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | SHARP NEC E Series |
All other specifications 6
| Manufacturer | SHARP |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177977 |
You'll need these with it
Verified fitment
Questions about this part
Will the TILD1X3NEC1-R fit my SHARP NEC E Series displays?
Yes, it is verified for SHARP NEC E Series models including LED-E012I, LED-E012I-108, LED-E012I-217, LED-E015I, LED-E015I-135, LED-E018I-162, and LED-E025I-217.
How do I achieve perfect alignment between my LED cabinets?
The system features X-axis lateral shift for horizontal positioning, Y-axis vertical shift for cabinet-to-cabinet alignment, and Z-axis plumb adjustment for a flat surface.
What is the maximum weight per display for this mount?
Each display in the array has a weight capacity of 20 lbs (9.1 kg).
Does this mount require custom lead times for shipping?
TiLED™ dvLED mounting solutions are kept in stock and are ready to ship without requiring custom lead times or project registration.
Can I use this mount with in-wall storage solutions?
Yes, this system is compatible with PAC526 and PAC525 In-Wall Storage Boxes.
