TiLED™ Middle dvLED Wall Mount for SHARP NEC E Series, 5 Displays Tall

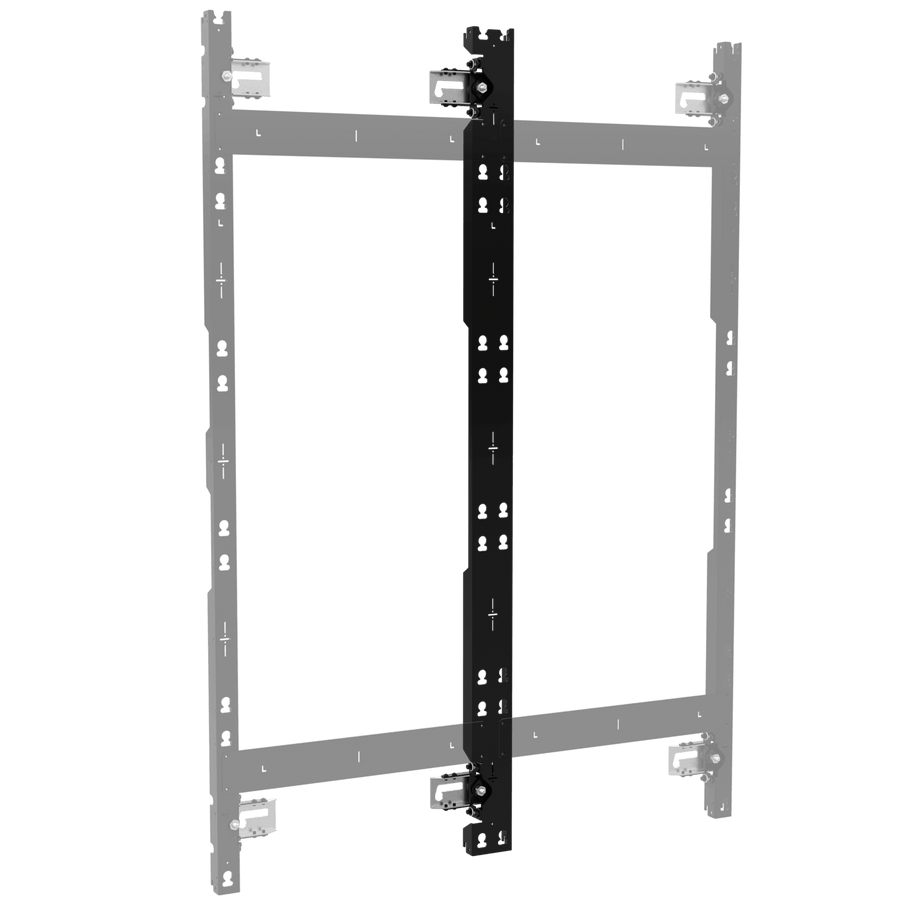

Middle mounting component for SHARP NEC E Series dvLED video walls, designed for a 5-display tall configuration in landscape orientation
The TILD1X5NEC1-M is a specialized middle structural component for the TiLED™ modular video wall system, specifically engineered for SHARP NEC E Series displays. This part is designed to be used in a 5-display tall configuration to create a seamless, professional-grade direct view LED video wall. As part of a modular system that includes left and right structural components, this middle section allows installers to mix and match components to achieve the exact height required for a custom installation. The mount features essential X, Y, and Z-axis adjustments to facilitate precise alignment. Specifically, X-axis lateral shift and Y-axis vertical shift adjustments enable perfect cabinet-to-cabinet positioning, while Z-axis plumb adjustments provide 0.75" (19 mm) of compensation to correct for wall imperfections. This ensure a perfectly flat, aligned mounting surface for all displays, which is critical for the visual integrity of the LED video wall.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | SHARP NEC E Series |
All other specifications 6
| Manufacturer | SHARP |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872178028 |
You'll need these with it
Verified fitment
Questions about this part
Will this mount fit my SHARP NEC E Series displays?
Yes, this is verified for use with SHARP NEC E Series models, including LED-E012I, LED-E015I, LED-E012I-108, LED-E012I-217, LED-E018I-162, and LED-E025I-217.
How many displays can I stack using this component?
The TILD1X5NEC1-M is specifically the middle component for a 5-display tall video wall configuration.
What is the weight capacity for this mounting component?
The mounting system supports a weight capacity of 20 lbs (9.1 kg) per display.
How do I handle uneven walls during installation?
You can use the integrated Z-axis plumb adjustment, which provides up to 0.75" (19 mm) of compensation to achieve a flat mounting surface.
What else do I need to order to complete the video wall?
This is a middle component; you will also need the corresponding left and right structural components for the TiLED™ modular system to complete the installation.
