TiLED™ Middle dvLED Wall Mount for SHARP NEC E Series, 4 Displays Tall
Middle wall mount component for SHARP NEC E Series video walls, supporting a 4-display high configuration

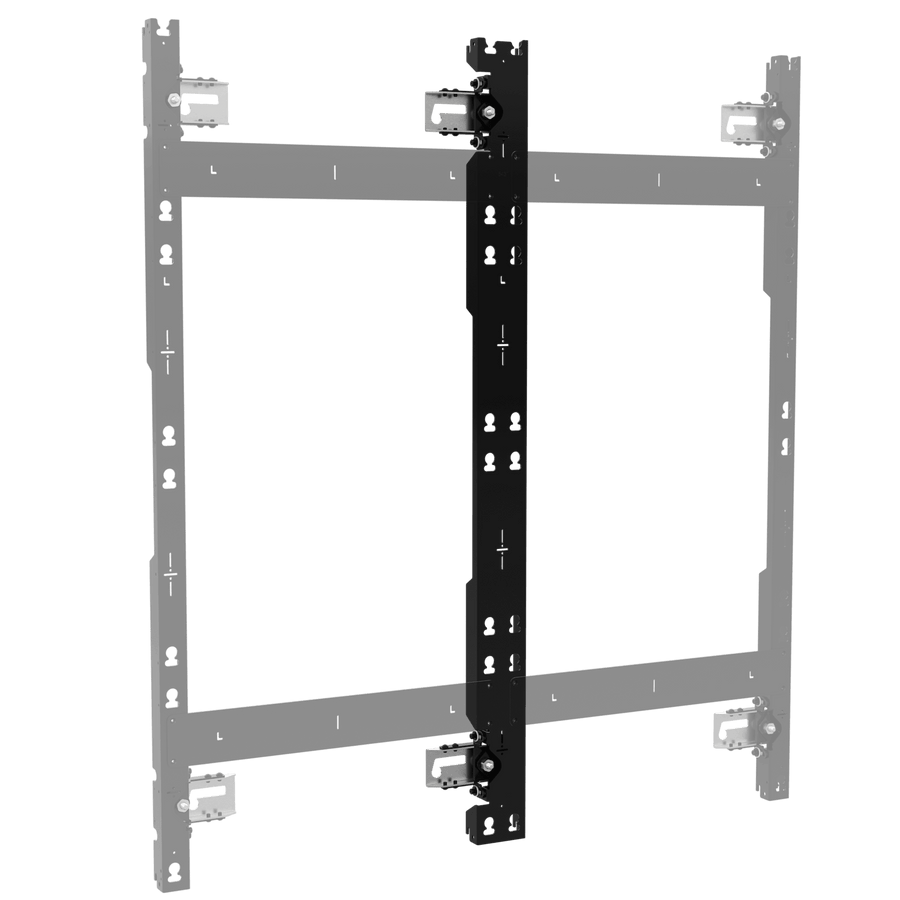

The Chief TILD1X4NEC1-M is a middle structural component designed specifically for the TiLED™ modular mounting system used with SHARP NEC E Series dvLED displays. This specific SKU is configured for a video wall that is 4 displays tall. As part of a modular system, it is designed to work alongside left and right structural components to create continuous video wall configurations. To ensure a flawless visual surface, this mount provides essential X, Y, and Z-axis adjustments. These include X-axis lateral shift for precise positioning, Y-axis vertical shift for perfect cabinet-to-cabinet alignment, and Z-axis plumb adjustments of 0.75” (19 mm) to compensate for wall imperfections and maintain a flat mounting surface. Each display is supported with a weight capacity of 20 lbs (9.1 kg) per unit. This component is intended for landscape orientation within a multi-display video wall setup.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 62.5" x 8.75" x 3.5" (158.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | SHARP NEC E Series |
All other specifications 6
| Manufacturer | SHARP |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177991 |
You'll need these with it
Verified fitment
Questions about this part
Will this mount fit my SHARP NEC E Series display?
Yes, this component is verified for use with SHARP NEC E Series models, including the LED-E012I-108, LED-E015I-135, LED-E012I-217, LED-E018I-162, and LED-E025I-217.
What is needed to complete a full 4-high video wall installation?
This is a middle component. You will also need to order the corresponding left and right structural components from the TiLED™ series to complete your specific configuration.
How do I handle uneven walls during installation?
The mount features Z-axis plumb adjustments of 0.75” (19 mm) to compensate for wall imperfections and ensure a level, flat mounting surface.
Can this mount be used to align LED cabinets vertically?
Yes, the integrated Y-axis vertical shift adjustments allow for precise alignment between adjacent cabinets in the video wall.
What is the depth requirement for the mounting surface?
The equipment depth range for this mounting solution is 3.29” – 4.04” (84mm-103mm).
