TiLED™ Middle dvLED Wall Mount for SHARP NEC E Series, 3 Displays Tall
Middle structural component for 3-high SHARP NEC E Series dvLED video walls, featuring X, Y, and Z-axis micro-adjustments

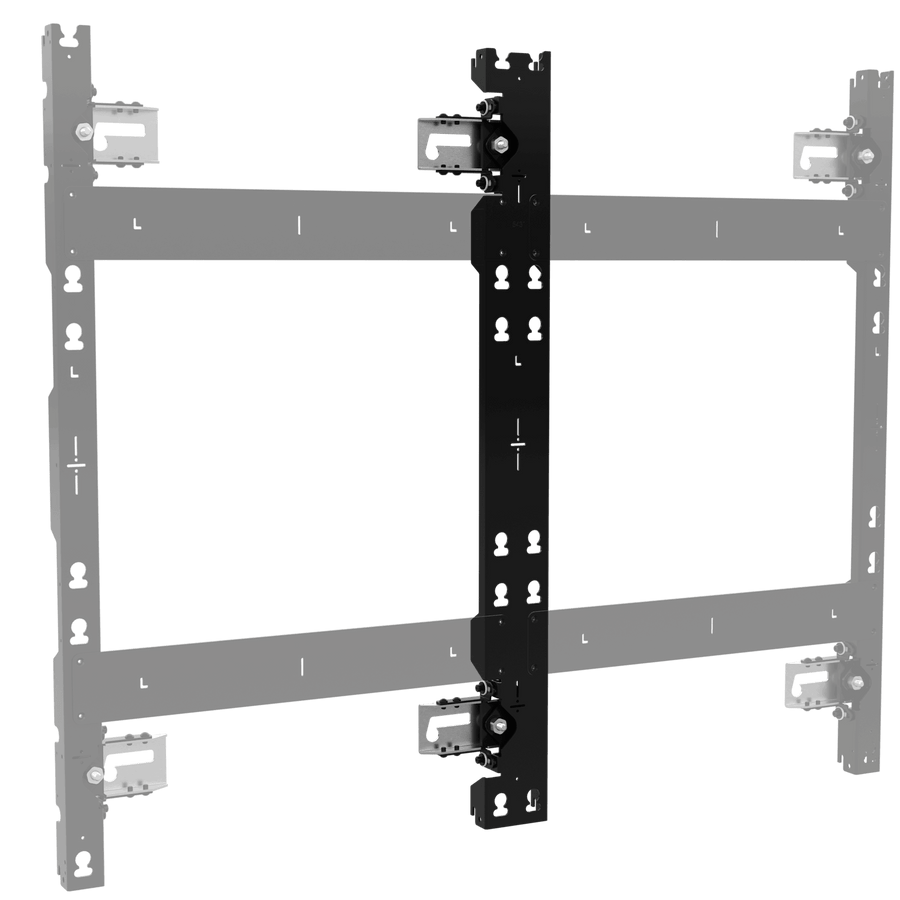

The TILD1X3NEC1-M is the middle structural component for a 3-high TiLED™ video wall system designed specifically for the SHARP NEC E Series. This modular system allows installers to construct customized video wall configurations by combining left, middle, and right components. This specific middle unit is intended for a vertical stack of 3 displays in a landscape orientation. To achieve a flawless, seamless finish, the mount provides essential micro-adjustability across all three axes. X-axis lateral shift adjustments allow for precise horizontal positioning of individual LED cabinets. Y-axis vertical shift adjustments ensure perfect cabinet-to-cabinet alignment for a continuous visual surface. Additionally, Z-axis plumb adjustments of up to 0.75” (19 mm) help compensate for wall imperfections, ensuring the mounting surface remains perfectly flat. Each display in this 3-high configuration has a weight capacity of 20 lbs (9.1 kg). The system accommodates an equipment depth range of 3.29” – 4.04” (84mm–103mm).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Shipping Weight | 14.38 lbs (6.5 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 7
| LED Display Model | SHARP NEC E Series |
| Manufacturer | SHARP |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177960 |
You'll need these with it
Verified fitment
Questions about this part
Will the TILD1X3NEC1-M fit my SHARP NEC E Series displays?
This middle component is designed for SHARP NEC E Series models, including the LED-E012I, LED-E012I-108, LED-E012I-217, LED-E015I, and LED-E018I-162.
What is the weight capacity of this mount?
The mount supports a weight capacity of 20 lbs (9.1 kg) per individual display.
How much adjustment do I get for uneven walls?
You can achieve a perfectly flat mounting surface using the Z-axis plumb adjustment, which offers up to 0.75” (19 mm) of movement.
What other components are needed to complete a 3-high video wall?
This is the middle component; you will also need the corresponding left and right structural components to complete the 3-high configuration.
Can I use this for a 4-high or 5-high video wall?
No, this specific SKU is designed for a 3-high configuration; however, the TiLED™ modular system offers components to support 3, 4, or 5 displays in height.
