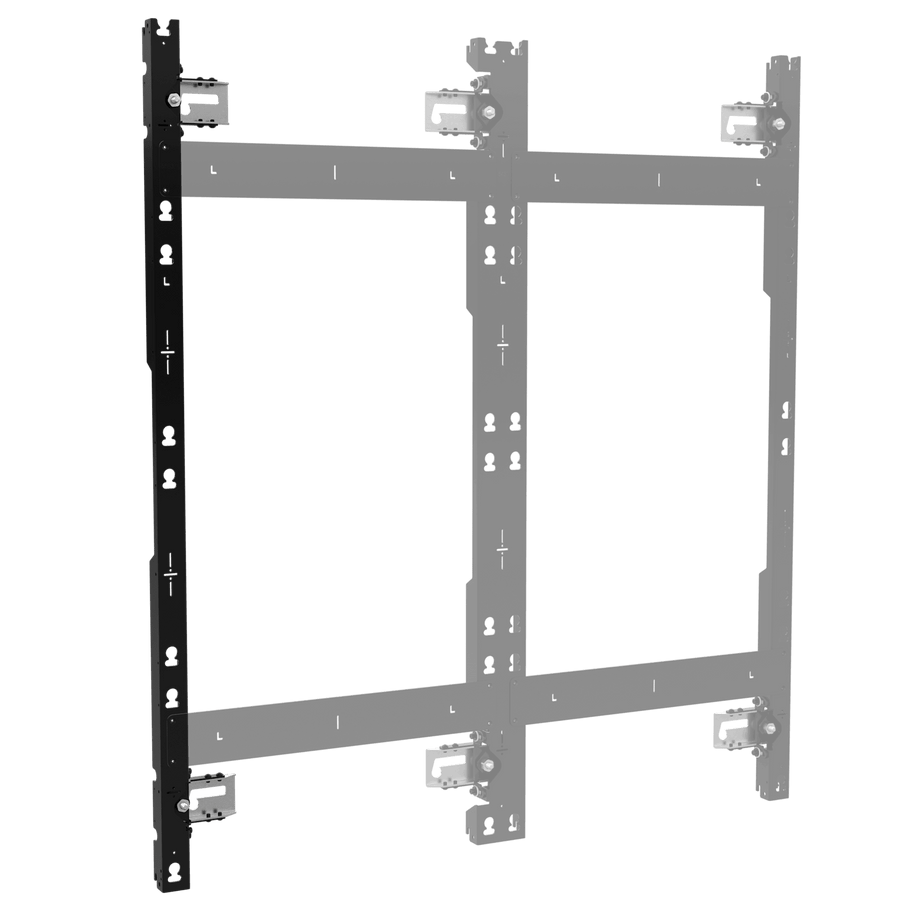

TiLED™ Left dvLED Wall Mount for SHARP NEC E Series, 4 Displays Tall
Left wall mount for SHARP NEC E Series video walls, supporting 4 displays in landscape orientation
The Chief TILD1X4NEC1-L is a modular left-side structural component designed for TiLED™ direct view LED video wall configurations. This specific SKU is the left component for a 4-display high column supporting SHARP NEC E Series displays. Because the TiLED™ system is modular, this part works alongside middle and right structural components to create custom video wall heights of 3, 4, or 5 displays. Each display in this 4-high configuration requires an individual mounting solution to maintain a seamless visual surface. To ensure perfect alignment in a professional installation, this mount provides critical three-axis adjustments. The X-axis lateral shift allows for precise horizontal positioning, while Y-axis vertical shift adjustments manage cabinet-to-cabinet alignment. To compensate for wall imperfections and ensure a perfectly flat mounting surface, the Z-axis plumb adjustment provides 0.75” (19 mm) of movement. This system is designed for landscape orientation and supports equipment with an equipment depth range of 3.29” – 4.04” (84mm-103mm). Each display in the array has a weight capacity of 20 lbs -9.1 kg.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 62.5" x 8.75" x 3.5" (158.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | SHARP NEC E Series |
All other specifications 6
| Manufacturer | SHARP |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177984 |
You'll need these with it
Verified fitment
Questions about this part
Will this mount fit my SHARP NEC E Series display?
Yes, this mount is verified for SHARP NEC E Series models including the LED-E012I-108, LED-E015I-135, LED-E012I-217, LED-E018I-162, and LED-E025I-217.
What other components do I need to complete the video wall?
This is a left-side component. To complete a 4-display high configuration, you will also need the corresponding middle and right structural components from the TiLED™ modular system.
How does the Z-axis adjustment help with installation?
The Z-axis plumb adjustment offers 0.75" (19 mm) of movement, which allows installers to compensate for wall imperfections to achieve a perfectly flat mounting surface.
Can I use this for an in-wall installation?
For in-wall requirements, the system is compatible with PAC525 and PAC526 in-wall storage boxes.
How much weight can each display support?
This mount is rated for a weight capacity of 20 lbs -9.1 kg per individual display.
