TiLED™ Left dvLED Wall Mount for SHARP NEC E Series, 3 Displays Tall
Left mounting component for Sharp NEC E Series video walls, supporting 3 displays in landscape orientation

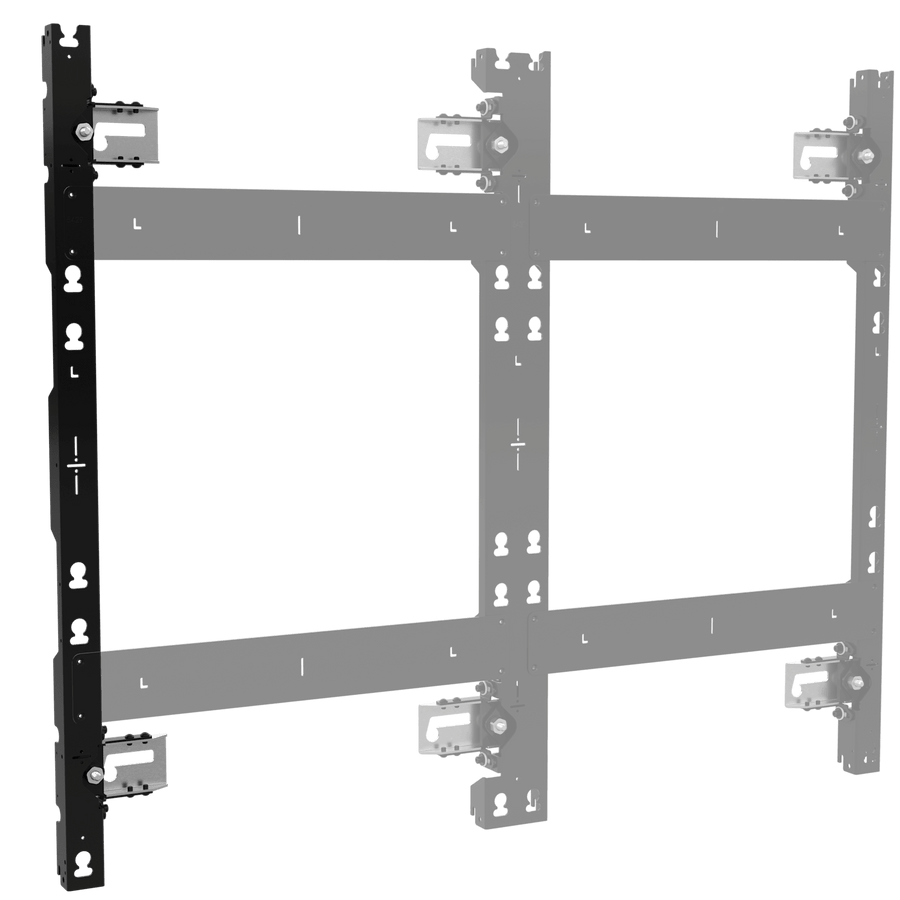

The TILD1X3NEC1-L is a left-side structural component of the Chief TiLED™ modular mounting system, specifically designed for SHARP NEC E Series direct view LED displays. This specific SKU is the left-hand version for configurations that are 3 displays tall. Because the TiLED™ system is modular, this component works alongside middle and right structural components to build custom video wall layouts. The system offers critical X, Y, and Z-axis adjustments to ensure perfect alignment. Lateral shift (X-axis) adjustments facilitate precise horizontal positioning, while vertical shift (Y-axis) adjustments allow for exact cabinet-to-cabinet alignment. To compensate for wall imperfections and ensure a perfectly flat mounting surface, the system includes a 0.75” (19 mm) plumb adjustment (Z-axis). Each display in this 3-high configuration carries a weight capacity of 20 lbs (9.1 kg). The equipment depth range for this mount is 3.29” – 4.04” (84mm-103mm). This left mount is intended for landscape orientation.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | SHARP NEC E Series |
All other specifications 6
| Manufacturer | SHARP |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177953 |
