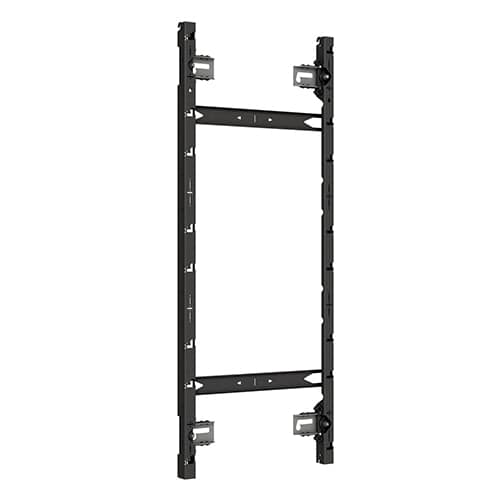

TiLED™ 1x4 dvLED Wall Mount for Absen Acclaim Plus & Acclaim Pro Series
Modular 1x4 dvLED wall mount for Absen Acclaim Plus and Pro series, featuring three-axis adjustability for flawless alignment
The Chief TiLED™ TIL1X4AP is a modular mounting solution designed to support four vertically stacked LED displays from the Absen Acclaim Plus and Acclaim Pro series. This 1x4 configuration allows installers to build continuous video walls by stacking displays to create a seamless visual surface. The system is engineered for high-precision alignment, offering X-axis lateral shift, Y-axis vertical shift, and Z-axis plumb adjustments to compensate for wall imperfections and ensure a perfectly flat mounting surface. To protect the sensitive edges of LED cabinets, the mount utilizes offset mounting slots that prevent damaging friction during the installation process. The modular architecture allows the TiLED™ system to attach to the top, bottom, or sides of other mounts, supporting complex and creative video wall designs. This TAA compliant and UL listed solution is an off-the-shelf product, meaning it is ready to ship without the need for custom lead times or project registration. For installation, the mounting system uses keyhole slots to facilitate a fast and efficient setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.8 in (4.6 cm) |
| Height | 53.4 in (135.6 cm) |
| Overall Dimensions | 53.4" x 21.4" x 1.8” (1356 x 544 x 46 mm) |
| Shipping Weight | 25.9 lbs (11.8 kg) |
| Weight Capacity | 80 lbs (36.3 kg) |
| Width | 21.4 in (54.4 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedLateral ShiftMicro-Adjustable |
All other specifications 10
| Application | Wall |
| Base Series | Acclaim Plus and Acclaim Pro Series |
| LED Display Model | Absen Acclaim PlusAbsen Acclaim Pro |
| Manufacturer | Absen |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video Wall |
| TAA Compliant | Yes |
| UPC | 841872174457 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
TiLED™ 1x2 dvLED Wall Mount for Absen Acclaim Plus & Acclaim Pro Series
TIL1X2AP$423.20
TiLED™ 1x5 dvLED Wall Mount for Absen Acclaim Plus & Acclaim Pro Series
TIL1X5AP$1,058.40
TiLED™ 1x3 dvLED Wall Mount for Absen Acclaim Plus & Acclaim Pro Series
TIL1X3AP$634.40
Verified fitment
Questions about this part
Will the TIL1X4AP work with my Absen Acclaim displays?
Yes, this mount is verified for use with Absen Acclaim Plus 1.2, 1.5, and 2.5 models, as well as the Acclaim Pro 1.2 series.
What is the depth of this mounting system?
The mount has a depth of 1.8 inches (4.6 cm), and when installed with a display, the total depth range is 3.81” to 4.56” (97-113 mm).
How do I adjust the alignment of the LED cabinets?
The system provides X-axis lateral shift for positioning, Y-axis vertical shift for cabinet-to-cabinet alignment, and Z-axis plumb adjustments to correct for uneven walls.
Can I expand this video wall into a larger configuration?
Yes, the TiLED™ modular design allows you to connect multiple units to support creative video wall layouts; you can use a TILVAB1 Vertical Connector Kit to assist with assembly.
What is the weight capacity for the TIL1X4AP?
The mount has a weight capacity of 80 lbs (36.3 kg) for the assembly.
