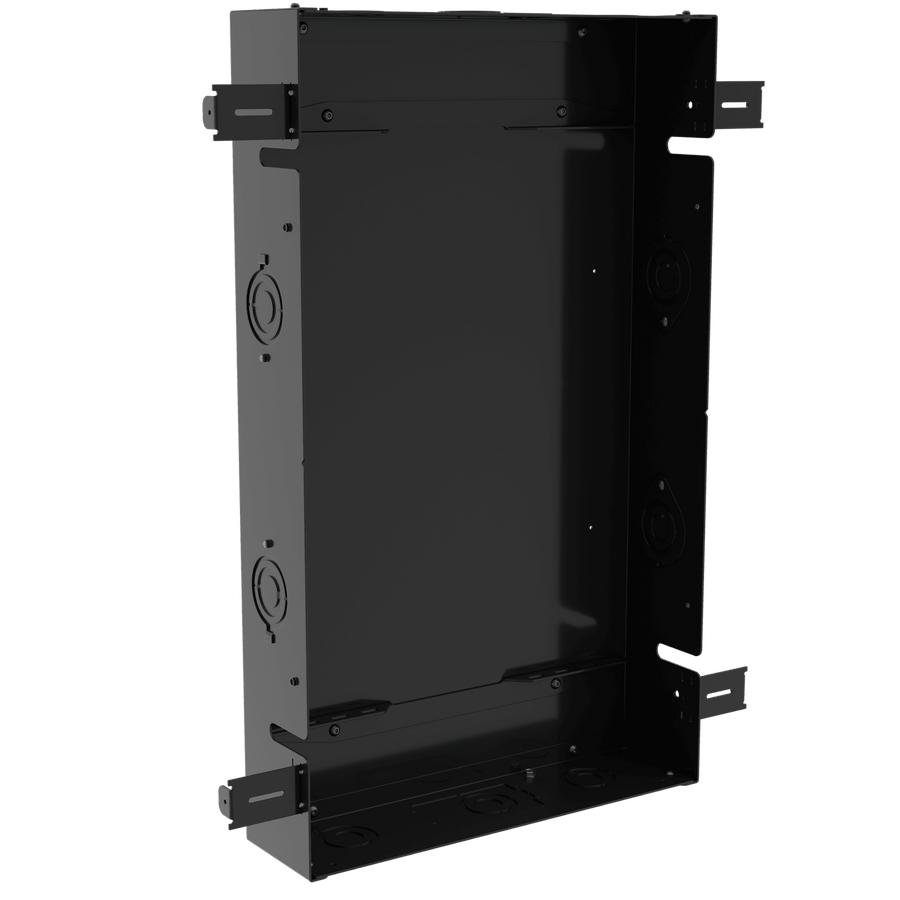

Tempo™ Flat Panel In-Wall Single-Box Pre-Drywall Kit
Pre-drywall in-wall box kit for 49"-65" displays, designed for 16" O.C. wood or steel studs

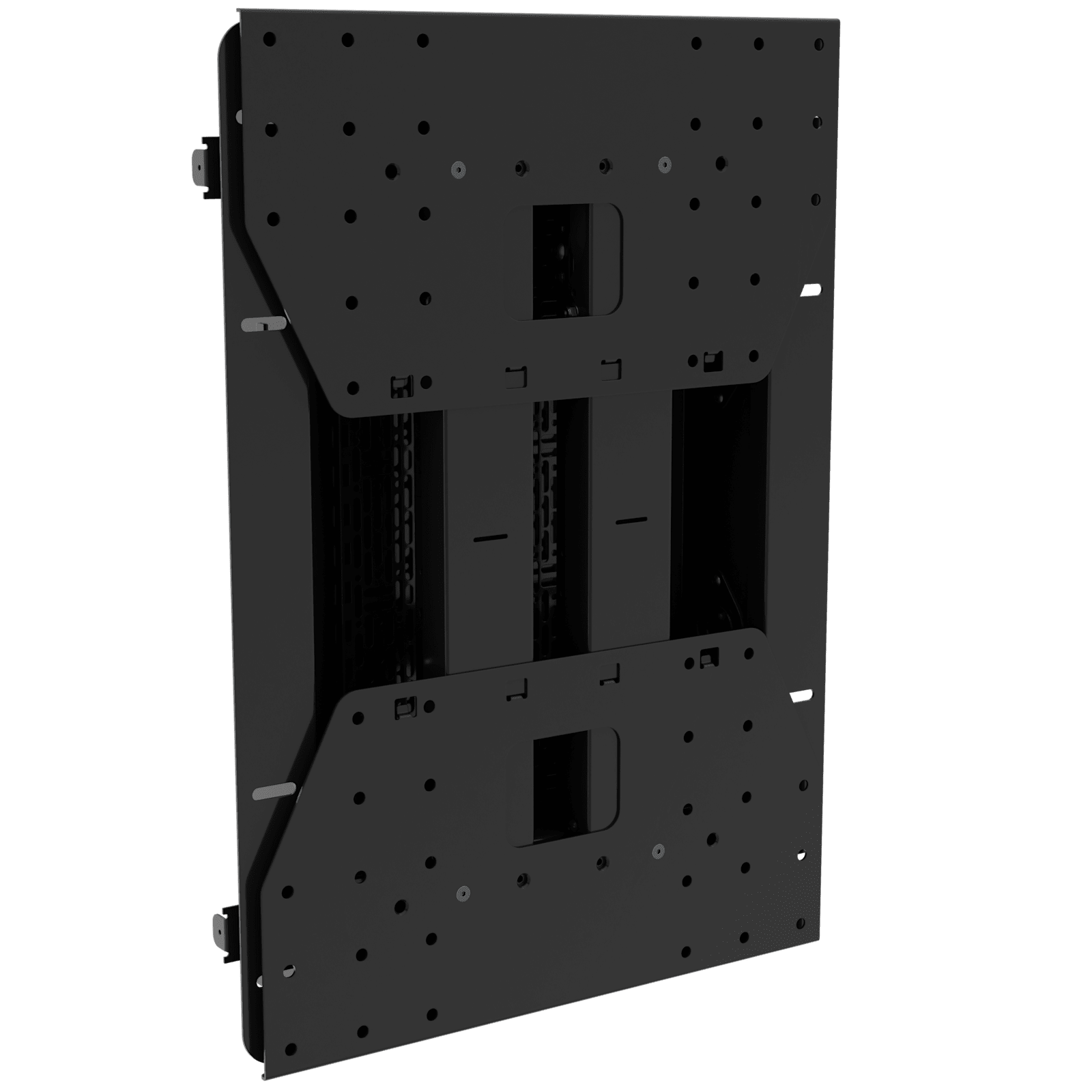

The Chief FPIWSBMKIT1 is a Tempo™ Flat Panel In-Wall Single-Box Pre-Drywall Kit used to facilitate the rough-in phase of a mounting installation. This kit allows contractors to install the in-wall box with stud tabs during the initial construction stage, ensuring the mounting infrastructure is positioned before drywall is applied. It is designed to fit perfectly between studs spaced at 16” on center, eliminating the need for cutting studs. For a complete installation, this kit requires the post-drywall kit (FPIWSBMKIT2) which is sold separately, or you may opt for the all-on-one Tempo Flat Panel In-Wall Single Box Mount (FPIWSBMS). The unit features four removable side wall knockouts that accommodate trade conduit sizes of 0.5", 1", 1.25", and 1.5". It is UL Listed for use in either wood or steel stud construction (25 ga minimum) and supports displays from 49" to 65" (1244mm - 1651mm) with a weight capacity of 100 lbs (45.35 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Typical Screen Size | 49'' - 65'' (1244mm - 1651mm) |
| Wall Stud Compatibility | Wood or Steel Studs (25 ga minimum) 16” on center |
| Weight Capacity | 100 lbs (45.35 kg) |
| Application | In-Wall |
| Color | Black |
| Installation Type | Pre-Drywall Kit |
| Solution Type | Universal |
| UPC | 841872178981 |
Resources
You'll need these with it
Questions about this part
Is the FPIWSBMKIT1 compatible with steel studs?
Yes, this kit is UL Listed for installation in both wood and steel stud construction, provided the steel is a minimum of 25 ga.
What is required to complete the installation after drywall is installed?

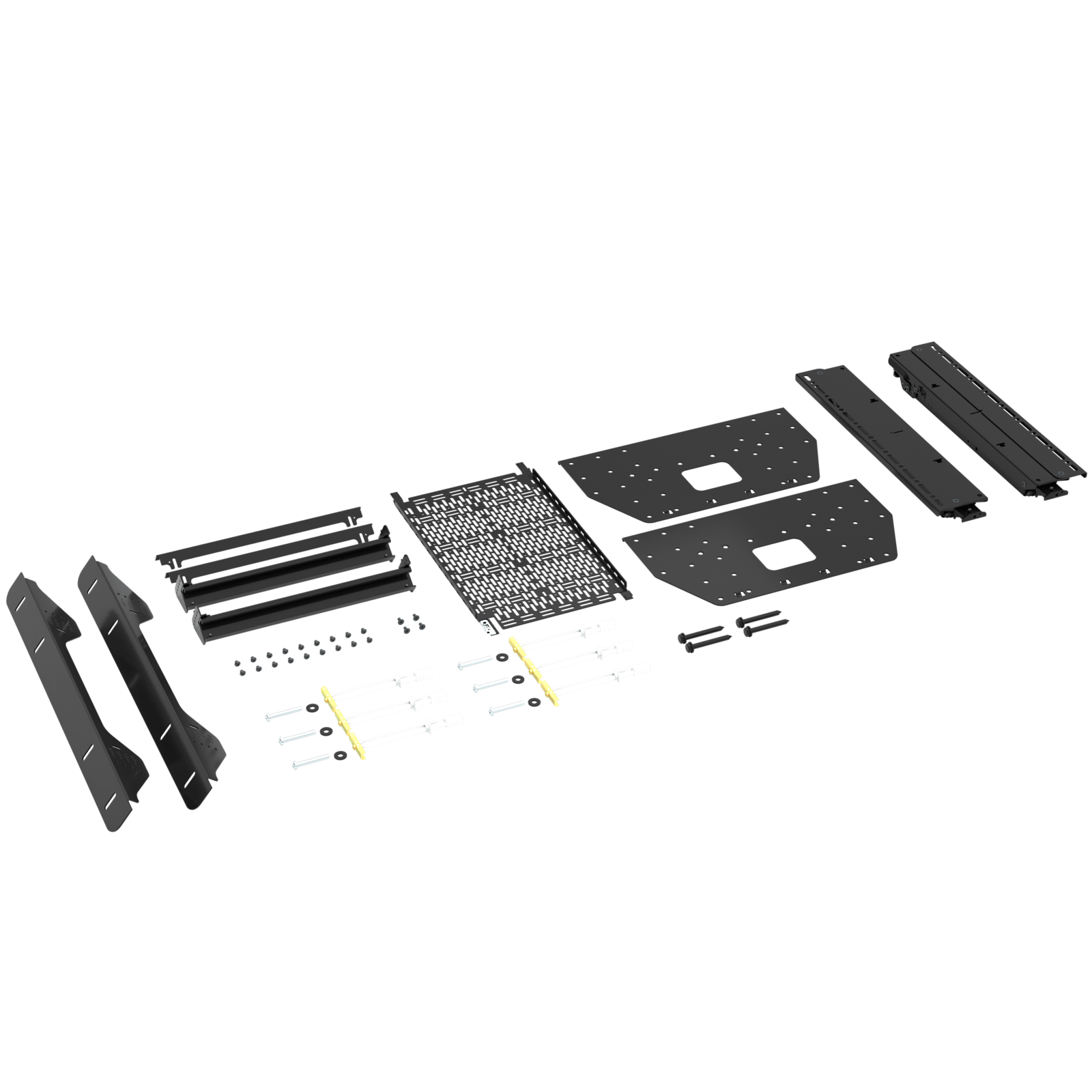

This is a pre-drywall kit. To complete the system, you must also purchase the Tempo™ Flat Panel In-Wall Single-Box Post-Drywall Kit (FPIWSBMKIT2).
What conduit sizes can I use with this in-wall box?
The side wall knockouts are designed to accommodate four different trade conduit sizes: 0.5", 1", 1.25", and 1.5".
Will this kit work with 16 inch on center stud spacing?
Yes, the storage box is designed to fit specifically between 16" O.C. wood or metal studs without the need to cut studs.
Which document should I use for submittals or technical planning?
You can download the FPIWSBMKIT1 Technical Drawing or CAD Drawing from the resources tab for detailed dimensioning and planning.
