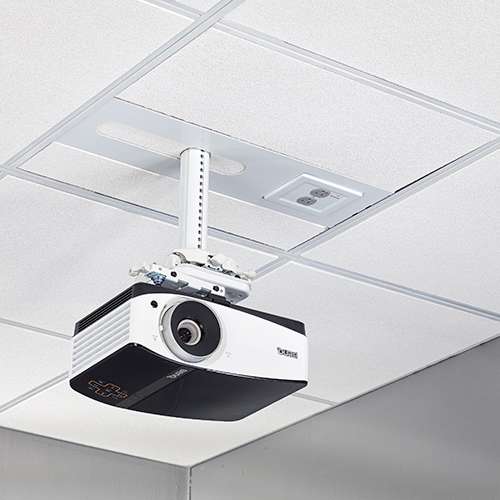

Suspended Ceiling Projector System with 2-Gang Filter & Surge - SYSAUWP2
Universal suspended ceiling projector mount featuring integrated 2-gang surge protection and filtering for conferencing environments
The Chief SYSAUWP2 is a suspended ceiling projector system designed to streamline installations while providing critical electrical protection. This white, TAA-compliant mount is engineered for speed, helping to reduce installation time by one-third. It features an integrated 2-gang filter and a Type 3 Surge Protective Device (SPD) that offers a Voltage Protection Rating (VPR) of 600V L-N. The surge protection handles 15A, 1875 W continuous power requirements and consumes less than 0.5 watts. For precise positioning, the system offers micro-adjustable, independent roll, pitch, and yaw capabilities. The pitch is adjustable up to 10°, the roll up to 3°, and the yaw provides a full 360° range. This unit is UL listed and is a versatile solution for adaptable spaces requiring reliable power conditioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24.94 in (63.4 cm) |
| Height | 19.82 in (50.3 cm) |
| Overall Dimensions | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Shipping Weight | 25 lbs (11.3 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 7.25 in (18.4 cm) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch 10°Roll: 3°Yaw: 360° |
All other specifications 7
| Application | Ceiling |
| Color | White |
| Solution Type | Universal |
| Special Features | Kits, Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872167169 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the SYSAUWP2 mount my specific projector?
The system is verified against 6,976 display models from 114 manufacturers. Examples of compatible units include EPSON BrightLink 1485Fi, OPTOMA 4K400x, PANASONIC PT-AE100U, and NEC HT 1100.
What electrical protections are included in this kit?
This kit includes a 2-gang filter and a Type 3 Surge Protective Device (SPD). The SPD provides a Voltage Protection Rating (VPR) of 600V L-N for 15A, 1875 W continuous power.
How much can I adjust the projector once it is mounted?
The mount features micro-adjustable, independent movement including 360° Yaw, 10° of Pitch, and 3° of Roll.
What is the weight capacity for this ceiling mount?
The SYSAUWP2 is rated for a maximum weight capacity of 35 lbs (15.9 kg).
What accessories are compatible with this system?
You can add the SYSAU Above Suspended Ceiling Storage Box (SKU CMA474) or a Projector Security Cage, such as the Medium PG1AW or Small PG2AW models.
