Small Projector Security Cage - PG2AW
White security cage for small projectors, features a hinged door and adjustable opening to protect against theft and accidental damage

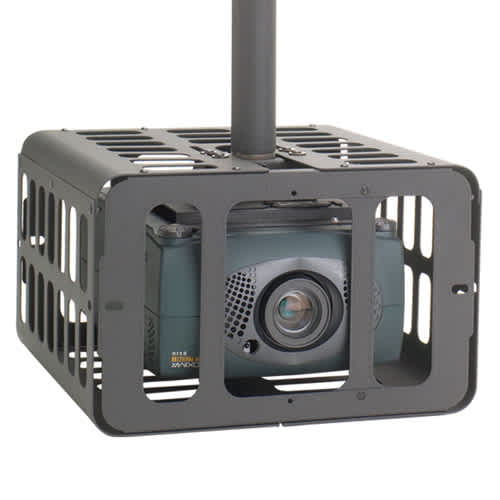

The PG2AW is a white steel security cage designed to fully enclose small projectors to prevent theft and recreational damage. This security solution is directly compatible with Chief RPA and RPM series projector mounts. It can also be attached to 1" and 1.5" NPT diameter poles for use with RSA and RSM projector mounts. The cage features a hinged door for easy access and an adjustable front opening that accommodates various lens positions. This design allows installers to maintain roll, pitch, and yaw adjustments during servicing. Once installed, the cage locks with security screws to ensure the equipment remains protected without needing to disturb existing projector settings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.4 in (41.7 cm) |
| Height | 10.2 in (25.9 cm) |
| Max Equipment Size | 7.5" x 16.0" x 16.0" (191 x 406 x 406 mm) |
| Overall Dimensions | 10.2" x 16.1" x 16.4" (259 x 409 x 417 mm) |
| Shipping Weight | 19.15 lbs (8.7 kg) |
| Width | 16.1 in (40.9 cm) |
| Accessory Type | Cages and Cases |
| Color | White |
| Projector Size | Small |
| TAA Compliant | Yes |
| UPC | 841872074870 |
| Certifications | TAA |
Resources
Questions about this part
Will the PG2AW fit my Chief projector mount?
This cage is compatible with RPA and RPM series mounts, as well as RSA and RSM mounts when used with 1" or 1.5" NPT diameter poles.
Can I adjust the projector once it is inside the cage?
Yes, the hinged door and adjustable front opening allow for roll, pitch, and yaw adjustments and easy access for servicing.
What is the maximum equipment size this cage accommodates?
The cage is designed to fit equipment up to 7.5" x 16.0" x 16.0" (191 x 406 x 406 mm).
Is there a different color option for this security cage?
Yes, this SKU is the white version; the series is also available in a black finish.
Which document is required for installation submittals?
The PG2A Technical Drawing (PDF) is available for submittal use, while the PG2A Installation Manual (PDF) provides setup instructions.
