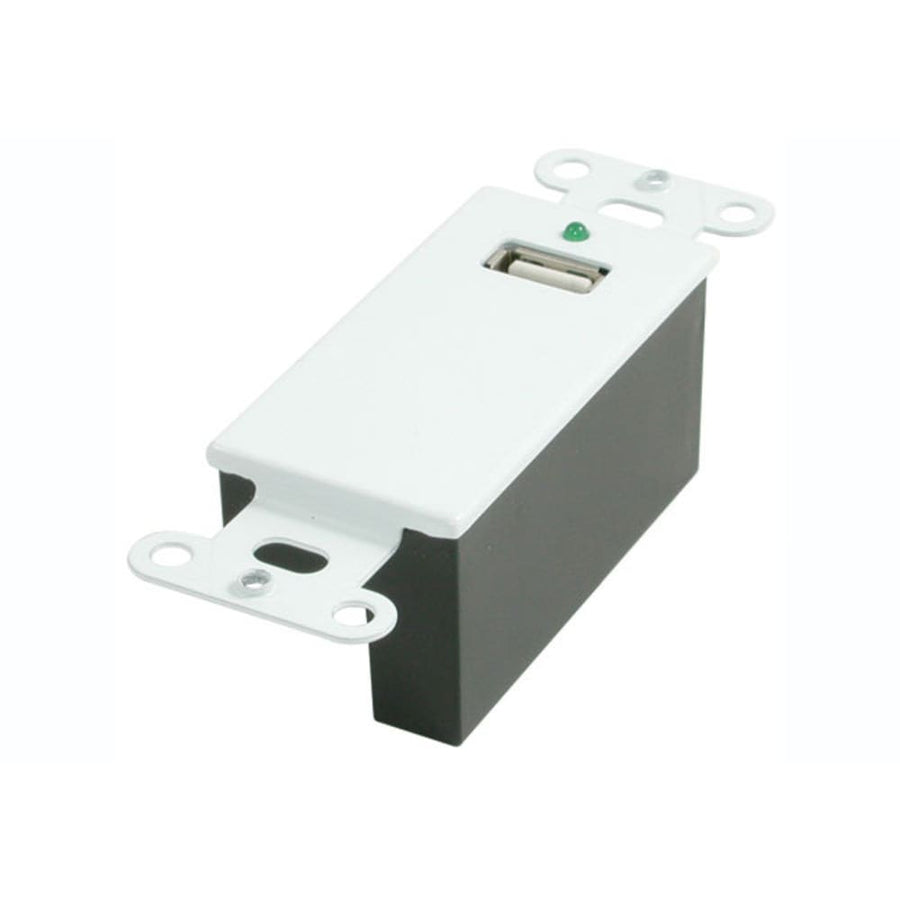

Superbooster® USB 1.1 Over Cat5 Extender Wall Plate Kit
USB 1.1 wall plate extender kit that extends device connectivity up to 150 feet via standard Cat5, Cat5E, or Cat6 cabling
The C2G CG29342 Superbooster® USB 1.1 Over Cat5 Extender Wall Plate Kit allows you to place USB devices far from the host computer, extending signal range up to 150 feet. This kit provides a clean, finished installation in professional environments like classrooms, offices, or homes by utilizing standard in-wall Cat5, Cat5E, or Cat6 cabling. The system consists of a transmitter and receiver unit, each housed in a single-gang wall plate for a professional appearance. The transmitter features one USB Type B Female input and one RJ45 Female output, while the receiver provides one RJ45 Female input and one USB Type A Female output. This bus-powered solution requires no external power source for basic operation. For devices with high power requirements, such as external hard drives or USB hubs, an external power source may be necessary for stable performance. This plug-and-play device is compatible with any computer supporting USB 1.1 and requires no additional drivers or software for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Weight | 0.64 lbs (0.3 kg) |
| Cable Type | USB |
| Color | White |
| Connector 1 | (1) USB-B Female(1) USB-B Female |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
| Product Type | Active DeviceExtenderKitWall Plate |
| Signal Type | USB 1.1 |
| TAA Compliant | No |
All other specifications 6
| Technology Specifications | USB 1.1 |
| UPC | 757120293422 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 12 MBPS |
| Patent Number | 7,741,562 |
| Warranty | 5 years |
Resources
You'll need these with it
3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG15180$4.99
14ft (4.25m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG15205$9.99
10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG15200$7.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
Questions about this part
What cabling is required for the CG29342 installation?
This extender kit uses standard Cat5, Cat5E, or Cat6 patch cables to connect the transmitter and receiver units.
Do I need to purchase additional cables for the CG29342 kit?
The kit does not include the patch cables used for the in-wall connection; you will need to provide your own Cat5, Cat5E, or Cat6 cabling.
Will the CG29342 work with high-power USB devices?
While the kit is bus-powered, devices like external drives or USB hubs may require an external power source to operate properly.
What is the data transfer rate for this extender?
The CG29342 supports USB 1.1 technology with a data transfer rate of 12 MBPS.
Does the CG29342 require any software for setup?
No, this is a plug-and-play device that works with any computer supporting USB without the need for drivers.
