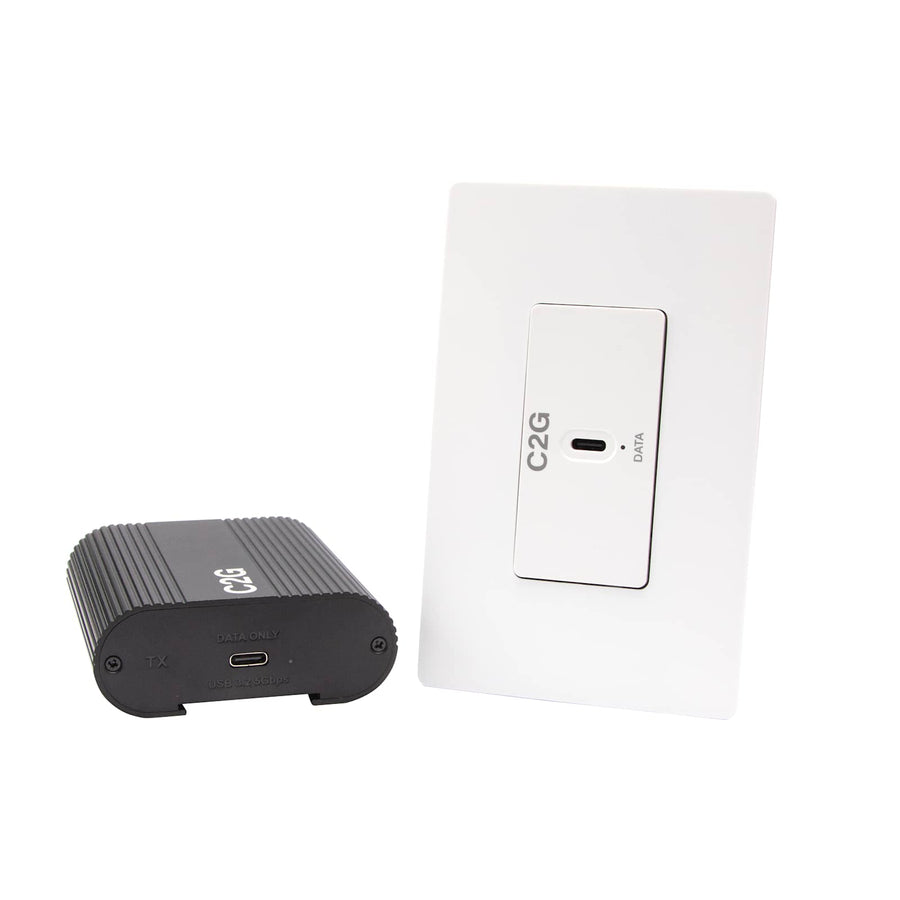

Superbooster® 1-Port USB-C® over Cat6A Box to Wall Plate Extender Kit - USB 3.2 Gen 1 (5 Gbps)
USB 3.2 Gen 1 extender kit for USB-C devices over Cat6A, supporting 5 Gbps data transfer up to 328 ft
The C2G54270 is a Superbooster® 1-Port USB-C® over Cat6A Box to Wall Plate Extender Kit designed to extend USB signals from a host computer to peripheral devices. This active device enables high-bandwidth USB 3.2 Gen 1 connectivity for equipment like PTZ cameras, interactive whiteboards, and storage drives at distances reaching 328 ft (100 m). It utilizes Cat6A F/FTP cabling to maintain a 5 Gbps data transfer rate, supporting USB 3.2, USB 2.0, and USB 1.1 protocols. This plug-and-play solution is backward compatible with lower-speed USB standards and does not require drivers for operation. Deployment is simplified by bidirectional 24V PoC, which allows power to be supplied from either the transmitter or the receiver end of the link. This kit is TAA compliant and has been tested to support leading video conferencing cameras at 1080p or 4K resolutions. The package includes one transmitter box, one receiver wall plate, a 24V/1A multinational power supply with conversion plug, a 2-pin 3.5mm Phoenix connector, two machine screws, and a mounting bracket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1A |
| Depth | Transmitter: 3.27" (8.3 cm), Receiver: 1.51" (3.84 cm) |
| Height | Transmitter: 1.10" (2.8 cm), Receiver: 4.19" (10.6 cm) |
| Length | Transmitter: 2.87" (7.3 cm), Receiver: 1.73" (4.4 cm) |
| Max Distance Support | 328 ft (100 m) |
| Product Weight | Transmitter: 0.25 lbs (0.11 kg), Receiver: 0.29 lbs (0.13 kg) |
| Shipping Weight | 1.08 lbs (0.5 kg) |
| Width | Transmitter: 2.87" (7.3cm), Receiver: 1.73" (4.4cm) |
All other specifications 13
| Color | Black, White |
| Connector 1 | (1) RJ-45 Female(1) USB-C Female |
| Connector 2 | (1) RJ-45 Female(1) USB-C Female |
| Federal Ops Country of Origin | Taiwan |
| Product Type | Active DeviceExtenderKit |
| Signal Type | USB 3.2 Gen 1 |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and BulkNumber of Tiers Occupied: 1 |
| TAA Compliant | Yes |
| Technology Specifications | USB 1.2USB 2.0USB 3.2 |
| UPC | 757120542704 |
| Certifications | CEFCCProp 65REACHRoHSTAA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
1000ft (304.8m) TAA-Compliant Cat6a Bulk Foil Shield (F/UTP) Ethernet Network Cable with Solid Conductors-Riser CMR-Rated - Blue
C2G56050$921.99
1000ft (304.8m) TAA-Compliant Cat6a Bulk Shielded (STP) Ethernet Network Cable with Solid Conductors - Plenum CMP-Rated - Blue
C2G56053$1,883.99
Questions about this part
Will this extender work with my PTZ camera?
Yes, this kit is tested and proven to support leading PTZ cameras at 4K or 1080p resolutions depending on the specific camera model.
Can I use this to extend video signals?
No, this device supports data transmission only and does not support DisplayPort Alt Mode video.
How do I power the extender kit?
The system supports bidirectional 24V PoC, meaning you can supply power from either the transmitter or the receiver end.
What type of cable is required for installation?
This kit requires Cat6A F/FTP network cabling to achieve the supported 5 Gbps data transfer rate over distances up to 328 ft (100 m).
Is the C2G54270 TAA compliant?
Yes, the C2G54270 is TAA compliant and is suitable for projects requiring compliance with the Trade Agreements Act.
