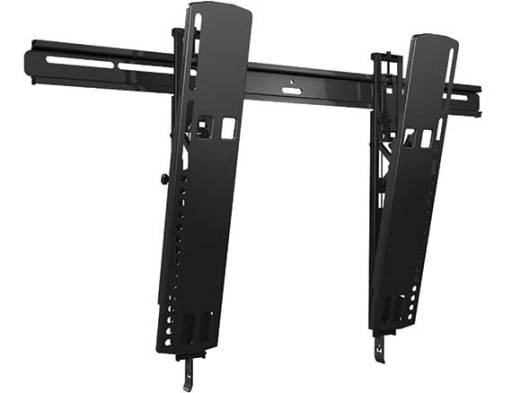

Super Slim Tilting Wall Mount For 51" - 80" flat-panel TVs - VLT16-B1
Super slim tilting wall mount for 51"–80" displays, 125 lbs capacity, with 10° tilt and lateral shift
The Sanus VLT16-B1 is a super slim tilting wall mount designed to position 51" - 80" flat-panel TVs as close to the wall as possible, maintaining a distance of only 0.5 in (1.3 cm). Despite this ultra-thin profile, it provides 10° of tilt to optimize viewing angles from different seating positions. This HDpro® mount includes Finger-Tip Tilt technology, allowing installers to adjust tilt tension to compensate for various TV depths. For ease of maintenance, ClickStand® technology holds the display away from the wall to facilitate cable access without requiring the removal of the TV from the mount. Post-installation, ProSet® height and leveling adjustments ensure the display is perfectly positioned. The wall plate is engineered to accommodate standard 16" (40.64 cm) or 24" (61 cm) on-center studs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 0.5 in (1.3 cm) |
| Height | 17.3 in (43.9 cm) |
| Package Depth | 16.22 in (41.2 cm) |
| Package Height | 2.5 in (6.4 cm) |
| Package Width | 37.6 in (95.5 cm) |
| Shipping Dimensions | 30.31" x 9.07" x 1.97" (769.9 x 230.4 x 50.1 mm) |
| Shipping Weight | 9.08 lbs (4.1 kg) |
| Typical Screen Size | 51" - 80" (130cm - 203cm) |
All other specifications 10
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 29.3 in (74.4 cm) |
| Adjustability | Lateral ShiftTilt |
| Application | Wall |
| Color | Black |
| Installation Items | 1/8" Drill Bit5/16" Masonry Bit - Concrete Installations7/16" Socket WrenchAwlElectric DrillLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| Tilt | 10° |
| Universal Mounting | Yes |
| UPC | 793795527486 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm400 x 500mm500 x 100mm500 x 200mm500 x 300mm500 x 400mm500 x 500mm500 x 600mm600 x 100mm600 x 200 mm600 x 300mm600 x 400mm600 x 500mm700 x 200mm700 x 300mm700 x 400mm700 x 500mm750 x 400mm800 x 200mm800 x 400mm800 x 500mm |
Resources
Questions about this part
Will the VLT16-B1 fit my specific TV model?
This mount is verified for 35 different VESA patterns ranging from 100 x 25 to 800 x 500mm, supporting displays up to 80".
What tools are required for the VLT16-B1 installation?
Required tools include an electric drill, 1/8" drill bit, 5/32" masonry bit for concrete, 7/16" socket wrench, level, stud finder, tape measure, awl, Phillips head screwdriver, and a pencil.
How do I access cables behind the TV once it is mounted?
The integrated ClickStand® technology allows you to pull the TV away from the wall for cable access without having to take the display off the mount.
Can I adjust the TV position after it is mounted to the wall?
Yes, the mount features ProSet® leveling and height adjustments to allow for perfect positioning after the initial installation.
Does this mount support tilting and shifting?
Yes, it provides 10° of tilt and includes lateral shift capabilities for horizontal positioning adjustments.
