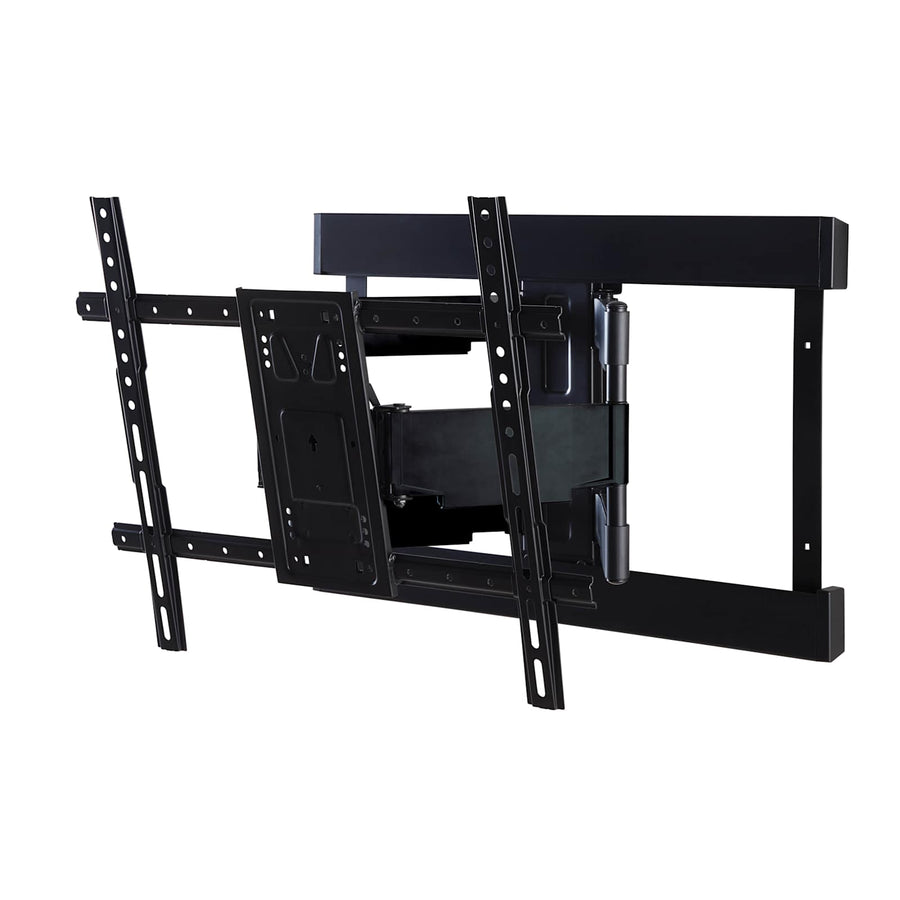

Super Slim Full-Motion TV Mount for Most 40"-90" TVs up to 125 lbs
Full-motion mount for 40"-90" displays, 125 lbs capacity, with 20" extension, 58° swivel, and 10° tilt
The Sanus VLFS820-B2 is a super slim full-motion mount designed to hold displays from 40" to 90" with a weight capacity of up to 125 lbs (56.7 kg). When mounted, the super slim profile keeps the TV just 1.64" (4.2 cm) from the wall. This mount provides significant flexibility for different room layouts, offering 20" of extension and a wide swivel range of +58° / -58° to maximize the viewing area. The FluidMotion™ design allows for effortless movement, while Virtual Axis™ fingertip tilt helps eliminate glare by providing a -10° to +10° tilt range. For professional installs, the mount includes decorative flip covers to provide a finished look around the mounting hardware. This UL Listed mount is engineered for ease of use, allowing installers to easily level the TV after the initial installation is complete.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.64 in (4.2 cm) |
| Height | 19 in (48.3 cm) |
| Length | 28.57 in (72.6 cm) |
| Package Height | 3.66 in (9.3 cm) |
| Package Width | 20 in (50.8 cm) |
| Shipping Dimensions | 31.47" x 20.01" x 3.69" (799.4 x 508.3 x 93.8 mm) |
| Typical Screen Size | 40" - 90" (1016mm - 2286mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
All other specifications 10
| Width | 28.57 in (72.6 cm) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Swivel | +58° / -58° |
| Tilt | +10° / -10° |
| Universal Mounting | Yes |
| UPC | 793795537836 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm300 x 200mm300 x 300mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 400mm600 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus VLFS820-B2 fit my TV?
This mount is verified to support most 40" to 90" displays with a VESA pattern ranging from 100 x 100mm to 600 x 400mm. It accommodates many major manufacturers and models within this size and weight range.
How much can I extend the TV from the wall?
The mount extends 20" from the wall and provides a wide swivel range of up to 58° in both directions to ensure an optimal viewing angle.
What is the tilt and swivel range for this mount?
It features a tilt adjustment of +10° to -10° via Virtual Axis™ technology and a swivel range of +58° / -58° to help eliminate glare and improve sightlines.
How far from the wall will my TV sit when mounted?
The super slim profile of the VLFS820-B2 places the display just 1.64" (4.2 cm) from the wall surface.
Is there technical documentation available for this mount?
Yes, you can access the SANUS VLFS820 Installation Manual and the Technical Drawing PDF through the resources section for submittals and installation planning.
