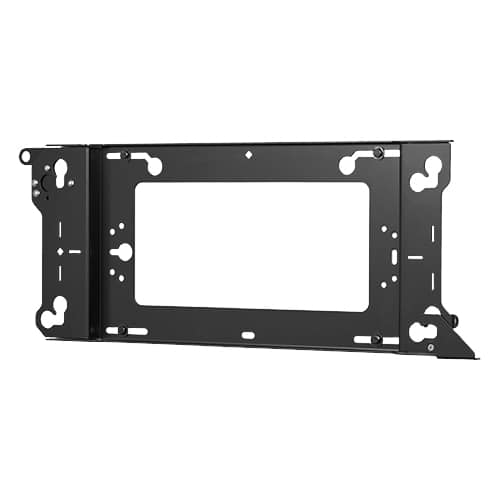

Stretched Display Wall Mount
Stretched display wall mount for 600 x 200 mm VESA patterns, supporting up to 75 lbs in landscape or portrait orientation
The Chief PSMH2860 is a specialized wall mount solution engineered specifically for the unique requirements of stretched aspect ratio displays. Designed for high-traffic environments like retail, transportation, and hospitality, this mount provides rigid support to keep non-standard displays stable and secure. It accommodates a 600 x 200 mm VESA mounting pattern and supports a weight capacity of up to 75 lbs (34 kg). The mount allows for flexible installation in both landscape and portrait orientations, utilizing a single-stud mounting configuration in portrait mode and a dual-stud configuration when installed in landscape. To enhance security in public spaces, the mount features a lockable latch for added padlock security. For installers looking to create a ceiling-mounted setup, this unit can be integrated with the LCM2X1U and FCASFP components. This TAA compliant solution ensures a low-profile, custom-fit installation for specialized digital signage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.3 in (3.3 cm) |
| Height | 11.3 in (28.7 cm) |
| Minimum Depth | 1.5 in (3.8 cm) |
| Overall Dimensions | 11.3" x 27.1" x 1.3" (287 x 688 x 33 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Typical Screen Size | Stretch aspect displays with compatible mounting patterns |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 27.1 in (68.8 cm) |
All other specifications 9
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872169897 |
| VESA Mounting Pattern | 600 x 200 mm |
| Certifications | TAA |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the PSMH2860 fit my stretched display?
This mount is verified against 23 display models from 10 manufacturers, including LG ELECTRONICS 86BH5C, NEC LCD3210, Philips 32PF9731, Samsung SMT4011, and MultiTaction MT420S.
Can I mount this in portrait orientation?
Yes, the PSMH2860 supports both landscape and portrait orientations, using a single-stud mounting configuration when placed in portrait mode.
What is the weight limit for this mount?
The PSMH2860 has a maximum weight capacity of 75 lbs (34 kg) for the supported display.
How do I secure the display in a public space?
The mount features a built-in lockable latch that allows for the attachment of a padlock to prevent unauthorized removal.
What is required to create a ceiling mount with this unit?
To convert this into a ceiling-mounted solution, you will need to combine the PSMH2860 with the Chief LCM2X1U and FCASFP.
