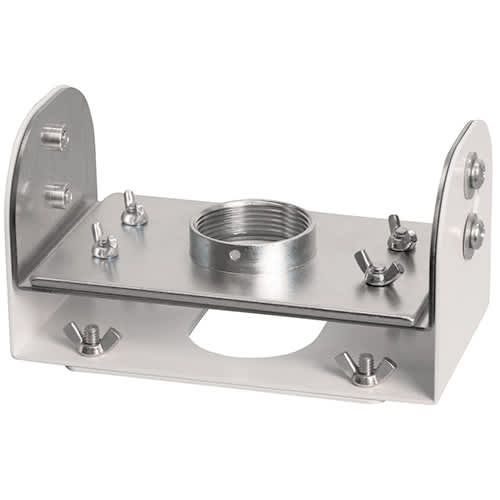

Angled Suspended Ceiling Kit Adapter - CMS495
Adapter for angled suspended ceilings up to 45°, designed for use with the CMS440
The Chief CMS495 is an adapter designed to allow projectors and flat panel TVs to hang level when installed on an angled suspended ceiling. This accessory is specifically designed for use with the CMS440. It is capable of accommodating suspended ceiling angles up to 45°. For a cleaner aesthetic, this kit can be used with the CMA643 escutcheon ring to manage the appearance of the ceiling tile in installations with angles up to 36°. The kit includes additional cabling intended to provide extra stability for the mounted equipment. This TAA compliant and UL Listed component has a weight capacity of 50 lbs (22.7 kg). For submittal documentation, installers can refer to the CMS495 Installation Manual or the CMS495 Technical Drawing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 3.88 in (9.9 cm) |
| Height | 3.75 in (9.5 cm) |
| Overall Dimensions | 3.75" x 7" x 3.88" (95 x 178 x 98 mm) |
| Shipping Weight | 3.45 lbs (1.6 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 7 in (17.8 cm) |
| Accessory Type | Suspended Ceiling |
| Application | Ceiling |
| TAA Compliant | Yes |
| UPC | 841872159485 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
What is the maximum ceiling angle for the CMS495?
This adapter is designed for use on suspended ceilings that are angled up to 45°.
What do I need to use with the CMS495?
The CMS495 is designed to be used with the CMS440 kit. You can also use the CMA473 Chief ceiling storage box with this setup.
How do I hide the ceiling tile gap around the mount?
You can use a CMA643 escutcheon ring to clean up the appearance of the ceiling tile in installations with angles up to 36°.
Can I mount a projector with this adapter?
Yes, the CMS495 is designed to allow both projectors and flat panel TVs to hang level from angled ceilings.
Which documents are available for submittals?
Installers can access the CMS495 Installation Manual, the CMS495 Technical Drawing, or the CMS495 CAD Drawing for planning and submittals.
