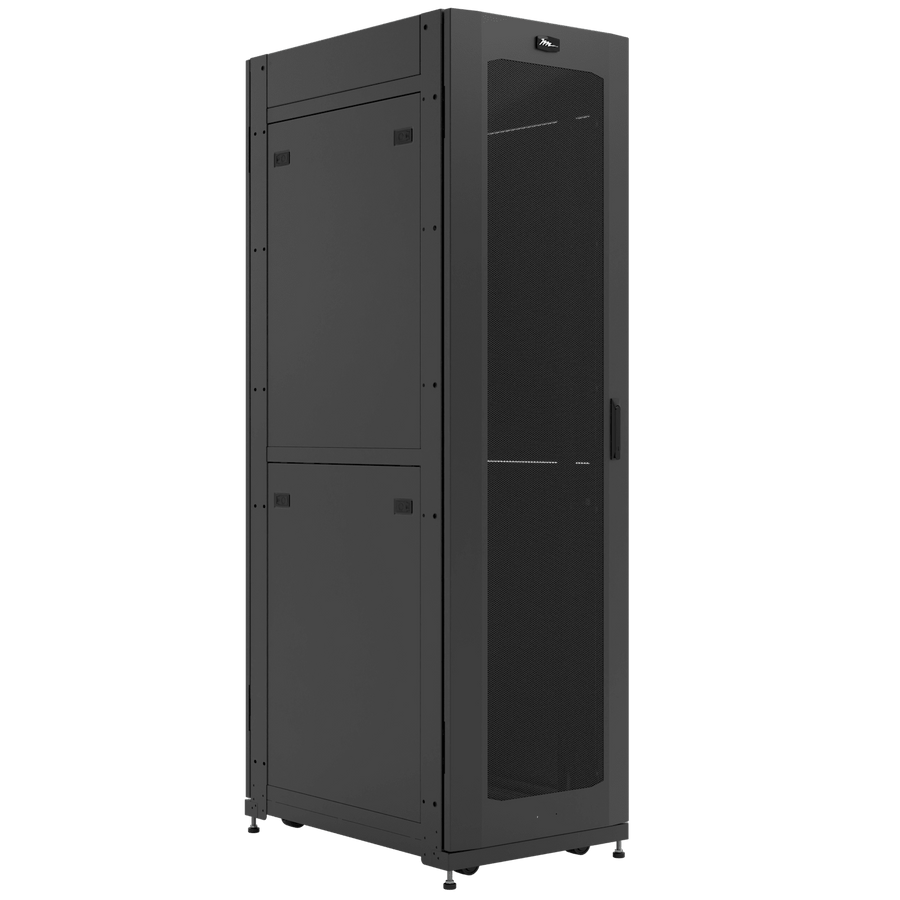

SNE Series Rack SNE24H-4536-A1
45 RU wide security network enclosure, 24" wide and 36" deep, with active top ventilation and seismic rating
The Middle Atlantic SNE24H-4536-A1 is a SNE Series Hybrid Pre-Configured enclosure designed to house systems utilizing a mix of analog and digital equipment. This 45 RU floor-standing rack features a 24" width and a 36" depth, providing a usable depth of 32.48" (82.5 cm) and a usable height of 78.75" (200 cm). For thermal management, the unit includes an active top ventilation system featuring a fan that moves 660 CFM and utilizes a proportional thermostatic controller. The enclosure is built from steel with a black texture powder coat finish and is equipped with split, flush-mount locking side panels and a rear door. This unit includes two pairs of adjustable 10-32 tapped rackrails, two 10" wide vertical Lever Lock accessory mounting plates, a pair of four-space cage-nut adaptors, and one piece of 6" wide vertical wire grid lace. For stability and installation, the unit includes four leveling feet and is Seismic Rated with a seismic load capacity of 1050 lbs (476.3 kg). This SKU is part of the SNE Series and is UL Listed and TAA compliant. Please note this product is scheduled for discontinuation on December 1, 2026; the recommended replacement is the WMRK-4536.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 660 |
| Depth | 36 in (91.4 cm) |
| Height | 84.77 in (215.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 78.75 in (200 cm) |
All other specifications 18
| Width | 24 in (61 cm) |
| Airflow Direction | Active Front to Top |
| Component Type | Active |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | 10-32 |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Hybrid |
| UPC | 656747207952 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
FTA Series 4 Inch DC Fan
FT-FAN$90.00
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Multi-Mount PDU, 20 Outlet & 20A
PD-2020R-NS$378.00
45 RU Vertical Cable Fingers
SNE-IVCMF-45$173.70
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
1 RU Keyboard Sliding Shelf with Computer Keyboard
RM-KB$851.40
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
45 RU SNE Series Cable Chase, 36 Inches Deep
SNE-CCE12-4536$1,188.90
Questions about this part
Will the SNE24H-4536-A1 work with my existing analog and digital equipment?
Yes, this is a hybrid enclosure designed specifically to accommodate a mix of both analog and digital hardware components.
What is the usable depth and height for equipment installation?
The enclosure offers a usable height of 78.75" (200 cm) and a usable depth of 32.48" (82.5 cm) within the 36" total depth frame.
What accessories are required for cage-nut installation?
The SNE24H-4536-A1 includes a pair of four-space cage-nut adaptors to facilitate mounting for specific equipment types.
Is this rack rated for seismic environments?
Yes, the unit is Seismic Rated with a documented seismic load capacity of 1050 lbs (476.3 kg).
What is the replacement for this model after discontinuation?
Middle Atlantic recommends the WMRK-4536 as the replacement for this SNE Series SKU.
