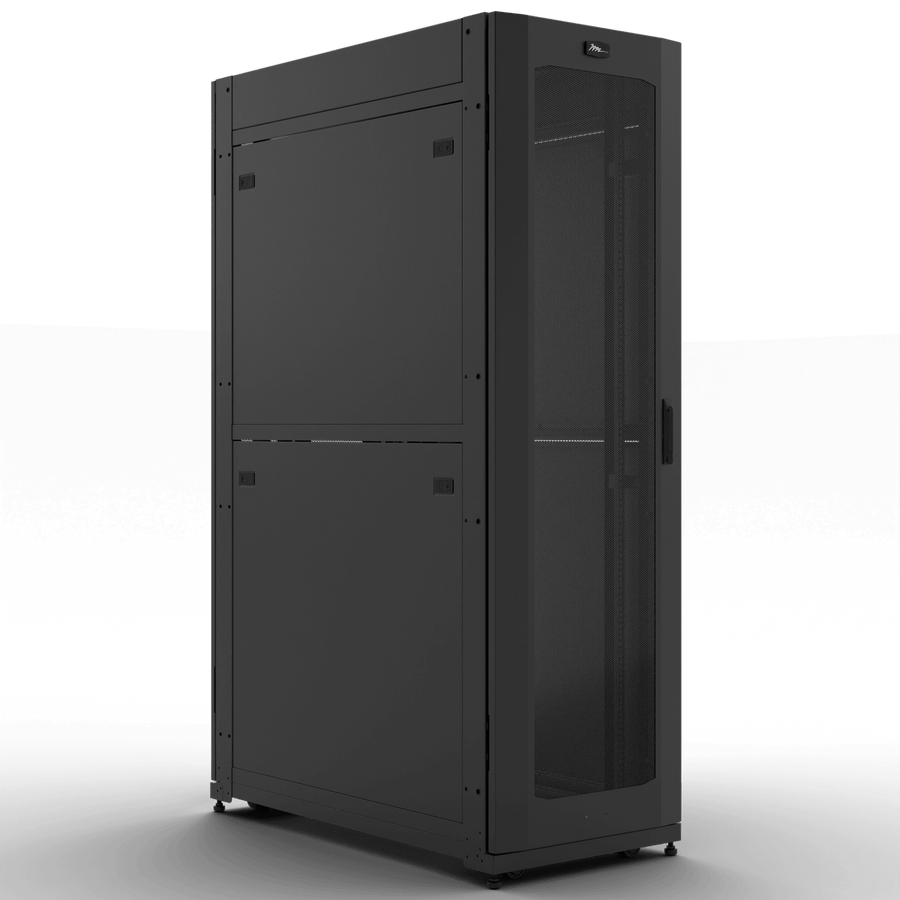

SNE Series Rack SNE24D-4248-P1
42 RU security network enclosure, 24" wide, 48" deep, seismic rated and TAA compliant
The Middle Atlantic SNE24D-4248-P1 is a wide security network enclosure designed for high-density, mission-critical infrastructure. This 42 RU pre-configured steel rack features a 24 in (61 cm) width and a 48 in (121.9 cm) depth, providing a usable height of 73.5 in (186.7 cm) and a usable depth of 44.48 in (113 cm). It is engineered for passive front-to-rear airflow, utilizing a 70% open front door and a split rear door with 70% open area to optimize thermal management. This unit is TAA compliant and UL listed, with a seismic load capacity of 1050 lbs (476.3 kg) and a UL load capacity of 3000 lbs (1,360.8 kg). The enclosure is compatible with Lever Lock™ 21” vertical accessories and features a solid top with integrated brush cable pass-through. This gangable floor-standing enclosure is finished in a black texture powder coat and includes casters, leveling feet, and 100 6mm cage nuts with rack screws for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 79.52 in (202 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 3.39 lbs (1.5 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 44.48 in (113 cm) |
| Usable Height | 73.5 in (186.7 cm) |
All other specifications 18
| Width | 24 in (61 cm) |
| Airflow Direction | Passive Front to Rear |
| Component Type | Passive |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | Cage Nut |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Digital |
| TAA Compliant | Yes |
| UPC | 656747207891 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
4 RU Utility Rackshelf, 15.5 Inches Deep, Vented
U4V$119.70
PDT Low Profile Vertical Power Strip, 20 Outlet, 15A & 2-Stage Surge
PDT-2015C-RN$418.50
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00

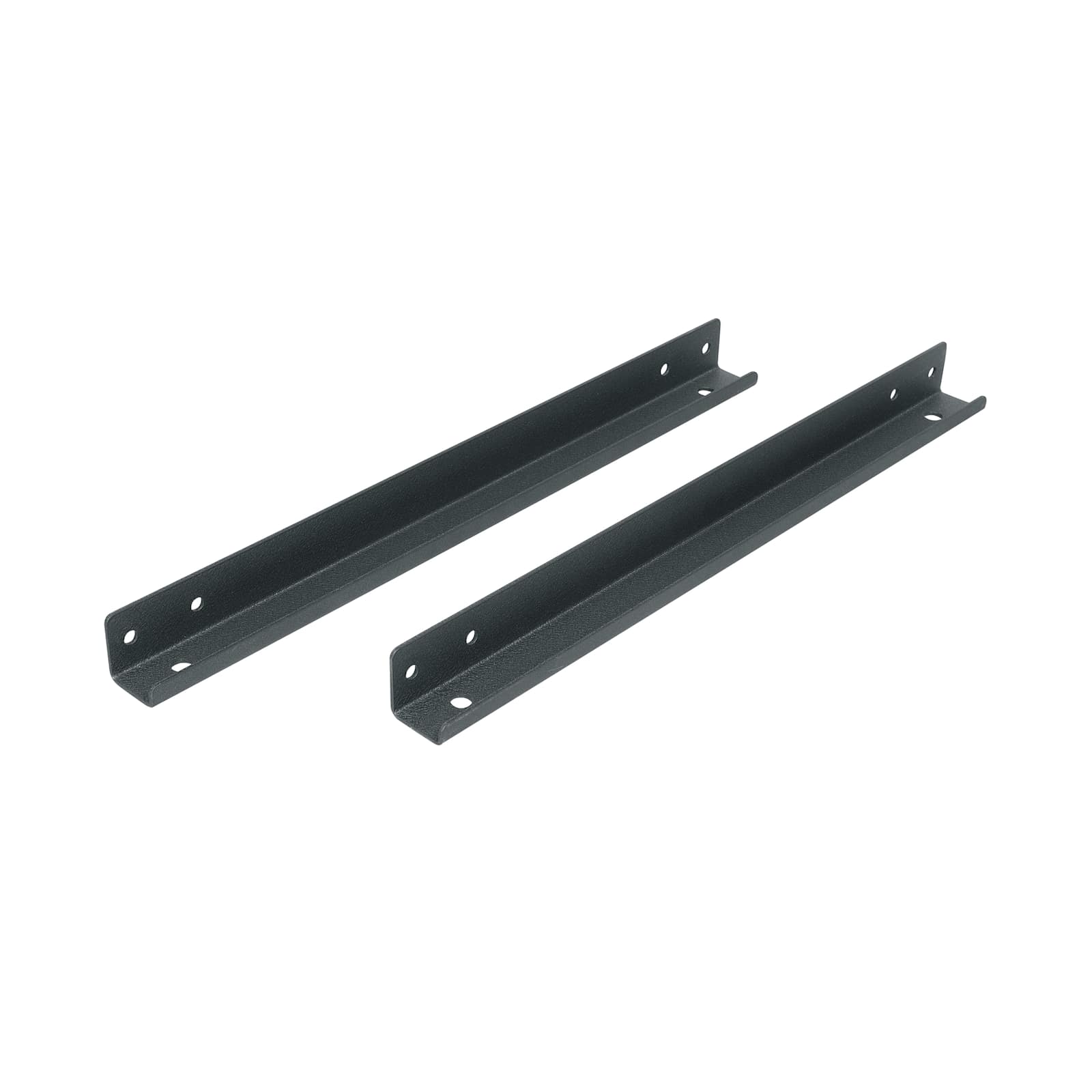

Seismic Brackets for 24 Inch Wide SNE Series
SNE24-Z4$334.80
42 RU Rackrail 10-32 for 24 Inch Wide SNE Series
SNE24-1032-RR42$351.90
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Questions about this part
Is the SNE24D-4248-P1 suitable for seismic environments?
Yes, this enclosure is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and is UL listed.
What accessories are compatible with the SNE series?
This rack is Lever Lock™ compatible and accepts all 21” vertical accessories, including SNE-UVPB-4245-S universal vertical power brackets.
How do I handle cable entry with this enclosure?
The unit includes a solid top equipped with a brush cable pass-through for organized cable management.
Does this unit require additional rails for mounting?
The SNE24D-4248-P1 comes pre-configured with two pair of adjustable cage-nut rackrails and includes 100 6mm cage nuts.
What is the replacement for this model if it is discontinued?
The manufacturer recommends the WMRK-4248 as the replacement for this SNE series model.
