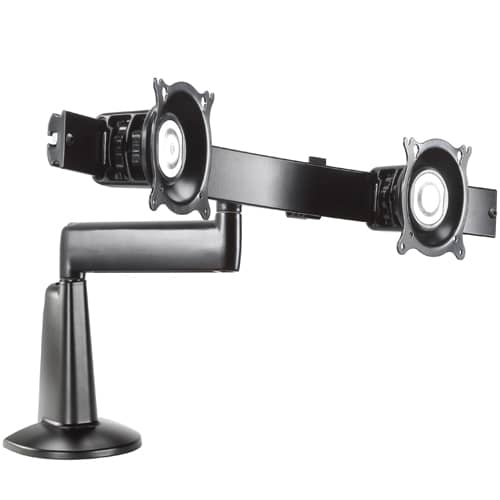

Single Arm Desk Mount, Dual Monitor Array - KCS220B
Single arm desk mount for a dual monitor 2x1 array, supporting 17 lbs (7.7 kg) per display with tilt, swivel, and extension adjustability
The Chief KCS220B is a single arm workstation mount designed to support a dual monitor 2x1 array on a desk or tabletop. This solution allows users to ergonomically position two displays in either landscape or portrait orientation. Each display is supported with a weight capacity of 17 lbs (7.7 kg) and features VESA 75 x 75mm or 100 x 100mm mounting patterns. The mount provides essential adjustability through extension, swivel, and tilt movements, including Centris Technology for smooth, fingertip tilt in all directions. Installation is versatile, offering edge clamp, grommet clamp, or grommet thru-bolt mounting options to accommodate different workspace setups. The clamp option is designed for installation from the top of the mounting surface. For desks with existing cable entries, the grommet hole size range is 0.38" to 3" (10mm - 76mm), and the system is compatible with desktop thicknesses from 0.5" to 3.5" (13mm - 89mm). This mount features independently adjustable tension at pivot points to customize control, which can be optimized for touchscreen use, and includes infinitely adjustable cable management clips for a clean installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 6.4 in (16.3 cm) |
| Shipping Dimensions | 19.25" x 13.75" x 6"(489 x 349.3 x 152.4 mm) |
| Shipping Weight | 21 lbs (9.5 kg) |
| Weight Capacity | 17 lbs (7.7 kg) |
| Adjustability | ExtensionSwivelTilt |
| Application | Desk-Tabletop |
| Array Configuration | 2x1 |
| Color | Black |
All other specifications 10
| Desktop Thickness Range | 0.5" - 3.5" (13mm - 89mm) |
| Grommet Hole Size Range | 0.38" - 3" (10mm - 76mm) |
| Number of Displays | 2 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| UPC | 841872044682 |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
KSA1003 Extension Arm Accessory - KSA1003B
KSA1003B$51.20
50x50mm VESA Interface Bracket
FSB4073$47.20
KSA1003 Extension Arm Accessory - KSA1003S
KSA1003S$51.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Centris Quick Connect Bracket - KSA1024B
KSA1024B$61.60
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the KCS220B fit my specific monitor?
The KCS220B is verified against 4,515 display models from 162 manufacturers. Examples include Samsung 150MP, LG 17LS5R, NEC 1940CX, Sharp AS173MBK, Dell 1704FPT, and Toshiba 14VL33G.
What mounting options are available for the KCS220B?
This mount supports edge clamp, grommet clamp, and grommet thru-bolt mounting. The clamp option allows for installation directly from the top of the mounting surface.
What is the desktop thickness requirement for installation?
The mount supports desktop thicknesses ranging from 0.5" to 3.5" (13mm - 89mm). For grommet mounting, the hole size must be between 0.38" and 3" (10mm - 76mm).
Does the KCS220B require extra brackets for non-VESA monitors?
Yes, if your display does not follow the VESA 75 x 75mm or 100 x 100mm pattern, you will need to purchase separate interface brackets, such as the FSB4243B or FSB4041.
How can I adjust the tension on the arms?
The KCS220B features independently adjustable tension at the pivot points, allowing you to customize the feel for standard use or optimize it for touchscreen interaction.
