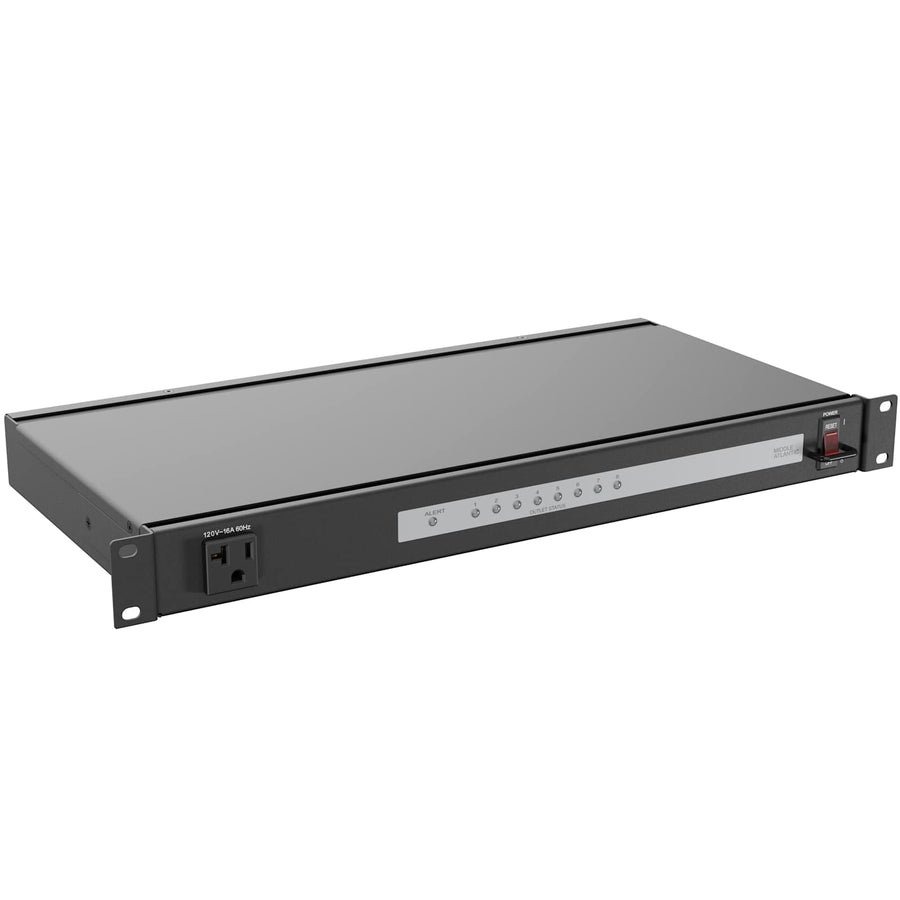

Select Series PDU with RackLink™, 9 Outlet 20A
Intelligent 9-outlet 20A PDU with RackLink™ cloud monitoring and individual IP control for 4 outlets
The Middle Atlantic RLNK-920R is a Select Series PDU equipped with RackLink™ technology, providing professional installers with remote, intelligent power distribution control. This 20 Amp rackmount PDU features 9 outlets and is designed to provide monitoring and management capabilities from anywhere via a centralized dashboard. The unit includes basic surge protection to safeguard connected AV equipment from power anomalies. Through the RackLink™ Cloud, users can manage multiple PDUs across various locations, including digital signage networks and campus-wide classroom deployments. For advanced automation, the device supports IP AutoPing and recovery to improve system reliability. This PDU is ETL Listed and includes 8 controlled outlets. It utilizes an IEC cable type with a 9 ft (2.7 m) cord and a 5-20P plug type. The chassis features a powder coat finish and is 1.74 in (4.4 cm) high with a 9.67 in (24.6 cm) depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.67 in (24.6 cm) |
| Height | 1.74 in (4.4 cm) |
| Shipping Weight | 11.02 lbs (5 kg) |
| Width | 17.36 in (44.1 cm) |
| Available Internationally | No |
| Cable Type | IEC |
All other specifications 9
| Finish | Powder Coat |
| Mounting Style | Rackmount |
| Number of Circuits | 1 |
| Outlet Control Type | 8 |
| Outlet Count | 9 |
| Plug Type | 5-20P |
| Surge Protection Type | Basic |
| UPC | 656747395505 |
| Certifications | ETL Listed |
Resources
Questions about this part
How many outlets can be controlled via IP on the RLNK-920R?
This PDU features 9 total outlets, with 4 outlets available for individual IP control.
Can I manage this PDU remotely through a cloud service?
Yes, the RLNK-920R is RackLink™ Cloud enabled, allowing you to monitor and manage deployed PDUs globally from a customizable dashboard.
What is the power capacity and plug type for this model?
The RLNK-920R provides 20 Amp service using a 5-20P plug type and includes a 9 ft (2.7 m) cord.
Does this PDU work with 3rd party control systems?
Yes, it interfaces with 3rd party AV control systems and cloud platforms for scheduling, reporting, and customization.
What is required to set up the RackLink™ interface?
You can use the RackLink™ Discovery app on iPhone or Android for fast commissioning and system monitoring.
