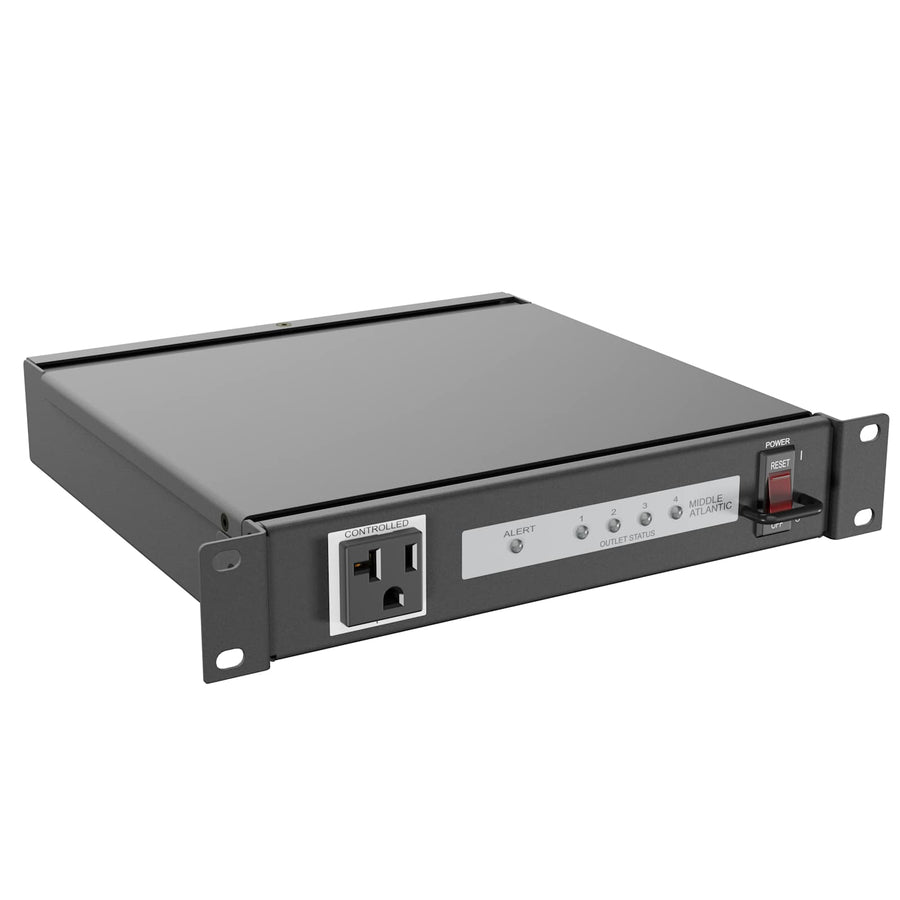

Select Series PDU with RackLink™, 4 Outlet 20A
Compact 4-outlet 20A PDU with RackLink™ intelligent power control for remote monitoring and individual outlet management
The Middle Atlantic RLNK-420R is a compact, intelligent power distribution unit designed for space-constrained environments such as behind-the-display digital signage installs. This 20 Amp PDU provides four IEC outlets with individual IP-based outlet control, allowing installers to manage the start-up or shut-down of connected equipment remotely. Featuring RackLink™ technology, this unit enables users to monitor power status anytime via a smartphone or desktop. It supports remote sequencing with user-selectable delays to ensure optimal power-up and power-down progressions for sensitive AV hardware. This ETL Listed device includes basic surge protection to safeguard equipment from power anomalies. The compact 1.74 in (4.4 cm) height and 9.67 in (24.6 cm) depth profile makes it an efficient solution for tight mounting spaces. For advanced management, this unit integrates with the RackLink™ Cloud, offering a centralized dashboard for global monitoring, and is compatible with Crestron Certified Modules and Q-SYS Certified Plug-ins.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.67 in (24.6 cm) |
| Height | 1.74 in (4.4 cm) |
| Shipping Weight | 8.81 lbs (4 kg) |
| Width | 8.76 in (22.3 cm) |
| Available Internationally | No |
| Cable Type | IEC |
All other specifications 9
| Finish | Powder Coat |
| Mounting Style | Compact |
| Number of Circuits | 1 |
| Outlet Control Type | 4 |
| Outlet Count | 4 |
| Plug Type | 5-20P |
| Surge Protection Type | Basic |
| UPC | 656747395499 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will this PDU work with my remote management software?
Yes, this unit is compatible with RackLink™ Cloud for centralized dashboard management and interfaces with 3rd party AV control systems, Crestron Certified Modules, and Q-SYS Certified Plug-ins.
Can I remotely reboot a single device without turning off the whole PDU?
Yes, the RLNK-420R features individual IP outlet control for its 4 outlets, allowing you to manage specific equipment power states remotely.
How do I set up the RackLink™ connection?
You can use the RackLink™ Discovery app on iPhone or Android devices to quickly connect and commission your PDUs during installation.
What is the power capacity and plug type for the RLNK-420R?
This is a 20 Amp PDU utilizing a 5-20P plug type and includes a 9 ft (2.7 m) IEC cord.
What documentation is available for submittals?
Technical details are available in the Select Series Rack Mount PDU with RackLink A&E Specification Sheet and the product's User Manual.
