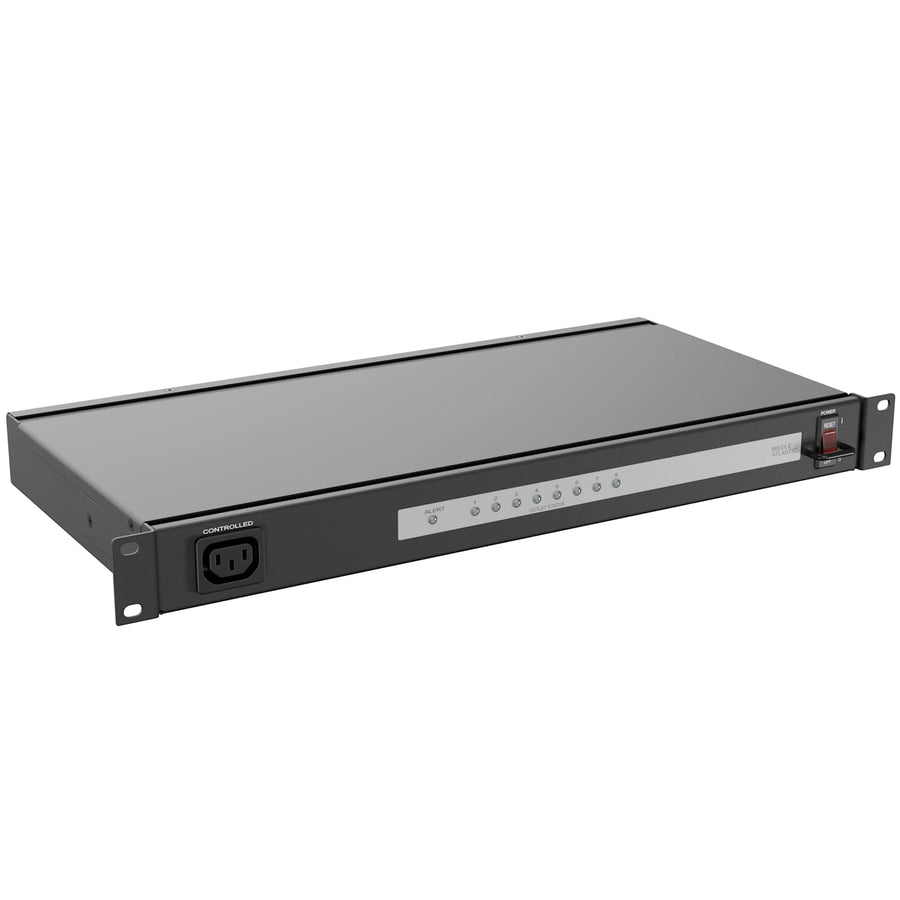

Select Series PDU with RackLink™, 100-240V, 9 IEC Outlets
Intelligent Rackmount PDU with 9 IEC outlets and RackLink™ cloud-enabled power monitoring and control
The RLNK-910R-IEC-NS is a Select Series PDU designed to provide intelligent power distribution and remote monitoring for professional AV installations. This 1U rackmount unit features 9 IEC outlets, including 8 rear distribution outlets that support individual IP outlet control. Additionally, the unit provides one front convenience outlet for easy access. With integrated RackLink™ technology, installers can monitor and manage power across a single, centralized dashboard via the RackLink™ Cloud, which supports managing various devices from multiple manufacturers. The RLNK-910R-IEC-NS supports remote sequencing with user-selectable delays, allowing for controlled start-up and shut-down of connected equipment to optimize system reliability. For advanced automation, the unit supports IP AutoPing and recovery to improve uptime. This PDU is suitable for international deployments, featuring CE, ETL Listed, and UKCA certifications. It utilizes a 9 ft (2.7 m) IEC cord with a C14 plug type and is built with a powder coat finish. For system integrators, the unit's 1.74 in (4.4 cm) height and 9.67 in (24.6 cm) depth allow for efficient integration into standard 19-inch racks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 10 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.67 in (24.6 cm) |
| Height | 1.74 in (4.4 cm) |
| Shipping Weight | 9.92 lbs (4.5 kg) |
| Width | 17.36 in (44.1 cm) |
| Available Internationally | Yes |
| Cable Type | IEC |
All other specifications 8
| Finish | Powder Coat |
| Mounting Style | Rackmount |
| Number of Circuits | 1 |
| Outlet Control Type | 8 |
| Outlet Count | 9 |
| Plug Type | C14 |
| UPC | 656747402432 |
| Certifications | CEETL ListedUKCA |
Resources
Questions about this part
How many outlets can I control individually via IP?
You can perform individual IP outlet control for up to 8 of the rear distribution outlets.
Does this PDU support remote power sequencing?
Yes, RackLink™ enables remote sequencing with user-selectable delays to manage the start-up or shut-down progression of your equipment.
What is required to manage this PDU remotely via the cloud?
You can use the RackLink™ Cloud to monitor and manage deployed Select Series PDUs from a single, customizable dashboard anywhere in the world.
Can I integrate this with my existing AV control system?
Yes, the unit interfaces with third-party AV control systems and cloud platforms for scheduling, control, and reporting.
What is the cord configuration for the RLNK-910R-IEC-NS?
The unit is equipped with a 9 ft (2.7 m) IEC cord featuring a C14 plug type.
