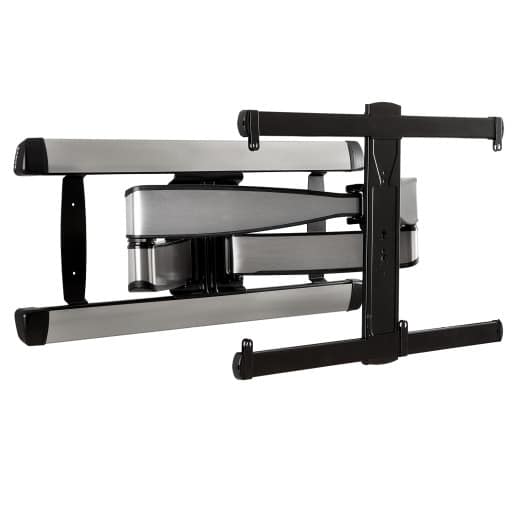

SANUS Advanced Full-Motion Premium TV Mount for 42" to 90" TVs
Full-motion silver wall mount for 42" to 90" displays with 125 lbs capacity and a 2.15" to 28.00" depth range
The Sanus VLF728-S2 is a premium full-motion wall mount designed for large-format displays ranging from 42" to 90". This silver-finished mount features a brushed metal exterior and an ultra-strong, solid steel frame for secure support. It is engineered with FluidMotion technology, allowing for smooth movement across its full range of motion, including +5° to -15° of tilt and +57° to -57° of left-to-right swivel. A key feature for installers is the Steady Set functionality, which locks the display in place to prevent drifting or unwanted movement once positioned. When retracted, the mount maintains a slim profile, placing the TV just 2.15" (5.46cm) from the wall. This model is UL Listed and supports a wide variety of VESA mounting patterns, including 200x200mm up to 500x400mm. It also includes integrated cable management to help conceal power and HDMI cords.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.15-28.00 (5.46cm - 71.12cm) |
| Height | 17.68 in (44.9 cm) |
| Shipping Dimensions | 36.26" x 15.95" x 3.74" (921.1 x 405.2 x 95 mm) |
| Typical Screen Size | 42" - 90" (107cm - 228cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 33.8 in (85.9 cm) |
| Application | Wall |
| Color | Silver |
All other specifications 7
| Installation Items | 1/2" Socket Wrench1/4" Drill Bit5/16" Drill Bit7/16" Socket WrenchElectric DrillPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Swivel | +57° / -57° |
| Tilt | +5° / -15° |
| Universal Mounting | Yes |
| UPC | 10793795533644 |
| VESA Mounting Pattern | 200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 300mm500 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus VLF728-S2 fit my TV?
This mount is designed for displays between 42" and 90". It is compatible with 12 different VESA patterns, including 200x200mm, 300x300mm, 400x400mm, and 500x400mm.
What is the maximum weight capacity of the VLF728-S2?
The VLF728-S2 supports a maximum weight capacity of 125 lbs (56.7 kg).
How do I prevent the TV from moving once it is positioned?
The mount utilizes Steady Set functionality, which ensures the TV stays exactly where it is placed without drifting or shifting.
What tools are required for the installation of this mount?
To install this mount, you will need an electric drill, a Phillips head screwdriver, a tape measure, a stud finder, and a pencil. You will also need a 1/2" and 7/16" socket wrench, a 1/4" drill bit, a 5/16" drill bit, and a wrench.
How does the VLF728-S2 differ from other models in the series?
The VLF728-S2 is the silver finish variant of the VLF728 series; a black finish version is also available.
