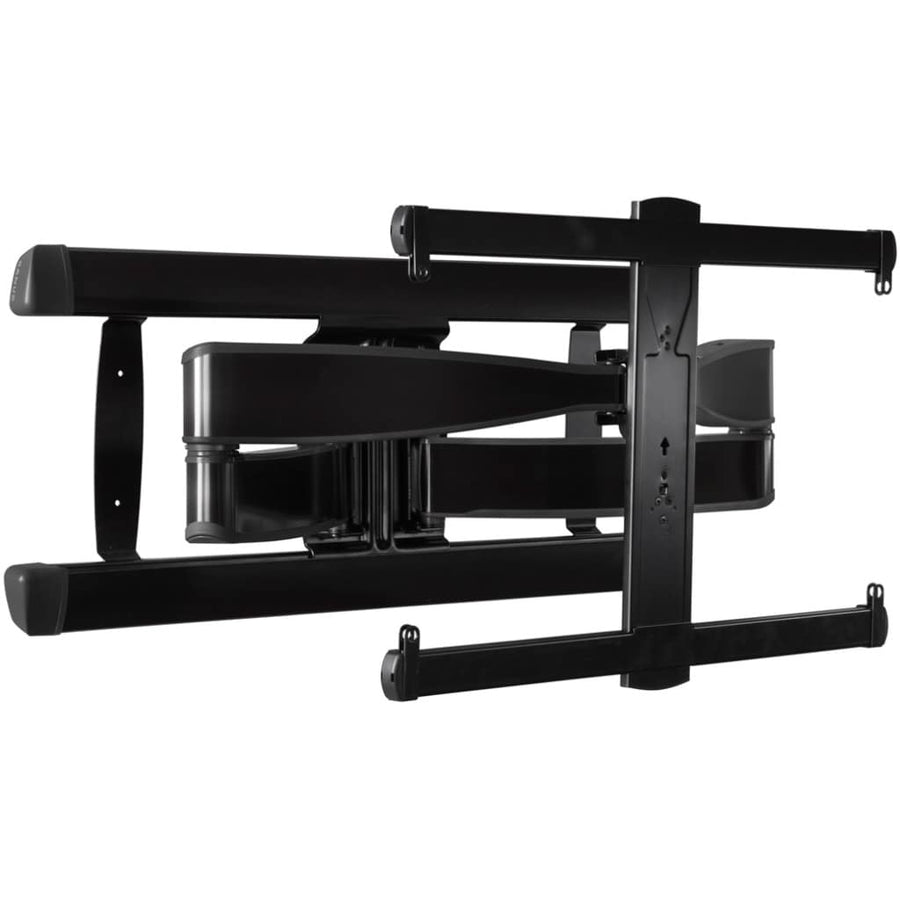

SANUS Advanced Full-Motion Premium TV Mount for 42" to 90" TVs
Full-motion wall mount for 42" to 90" displays, 125 lbs capacity, with extensive tilt and swivel range
The Sanus VLF728-B2 is an advanced full-motion premium TV mount designed for displays ranging from 42" to 90". This wall-applied mount features a brushed black metal exterior and an ultra-strong, solid steel frame to ensure secure positioning. It is engineered with FluidMotion technology for smooth movement and includes Steady Set functionality to lock the display in place without drifting. When in use, the mount allows the TV to be positioned as close as 2.15" (5.46cm) from the wall for a streamlined profile. The adjustment range includes up to 57° of swivel left and right, and a tilt range of 5° down to -15°. This UL-listed mount supports a variety of VESA patterns, including 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, and 500x400mm. Integrated cable management is built into the design to help conceal power and HDMI cabling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.15-28.00 (5.46cm - 71.12cm) |
| Height | 17.68 in (44.9 cm) |
| Shipping Dimensions | 36.26" x 15.95" x 3.74" (921.1 x 405.2 x 95 mm) |
| Shipping Weight | 38.62 lbs (17.5 kg) |
| Typical Screen Size | 42" - 90" (107cm - 228cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 33.8 in (85.9 cm) |
| Application | Wall |
All other specifications 8
| Color | Black |
| Installation Items | 1/2" Socket Wrench1/4" Drill Bit5/16" Drill Bit7/16" Socket WrenchElectric DrillPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Swivel | +57° / -57° |
| Tilt | +5° / -15° |
| Universal Mounting | Yes |
| UPC | 10793795533613 |
| VESA Mounting Pattern | 200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 300mm500 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the Sanus VLF728-B2 fit my TV?
This mount is compatible with 42" to 90" displays that utilize VESA patterns such as 200x200mm, 400x400mm, or 500x400mm.
How do I prevent my TV from drifting after adjustment?
The mount features Steady Set technology, which allows you to lock the TV in position to prevent unwanted shifting or movement.
What tools are required for installation of the VLF728-B2?
Required tools include an electric drill with 1/4" and 5/16" bits, a 1/2" socket wrench, a 7/16" socket wrench, a Phillips head screwdriver, a stud finder, a wrench, a tape measure, and a pencil.
How much weight can this full-motion mount hold?
The VLF728-B2 is rated for a maximum weight capacity of 125 lbs (56.7 kg).
What is the difference between the B2 and other VLF728 models?
The VLF728-B2 is the version with the brushed black metal finish; other variants in this series offer a brushed stainless silver finish with black trim.
