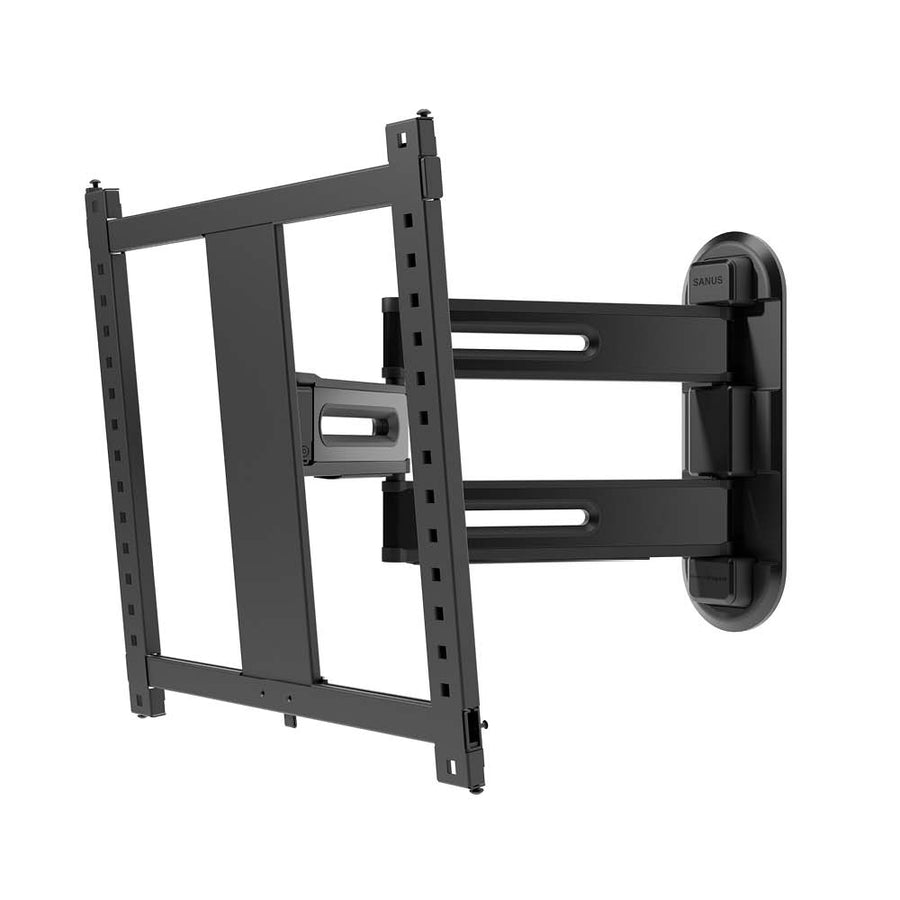

SANUS Advanced Full-Motion 4D + Shift TV Wall Mount for TVs 32"-65"
Full-motion TV wall mount for 32"-65" displays, featuring 6 in of height adjustment and a slim 1.9" profile
The Sanus VMF822-B2 is an advanced full-motion wall mount designed to accommodate televisions ranging from 32" to 65". This mount utilizes proprietary 4D™ + SHIFT technology, providing up to 6 in (15.2 cm) of vertical movement to assist with precise screen positioning. This height adjustment is particularly useful for installers mounting displays above fireplace mantles, TV consoles, or when the setup requires clearance for a soundbar or seasonal decorations. The SHIFT feature allows for 3 in of upward or downward movement after the initial installation is complete, enabling installers to raise the display to clear wall obstructions like electrical outlets. This model supports a variety of VESA mounting patterns, including 200x100mm, 200x200mm, 200x300mm, 300x100mm, 300x200mm, 300x300mm, 300x400mm, 400x100mm, 400x200mm, 400x300mm, and 400x400mm. With a 70 lbs (31.8 kg) weight capacity and a slim 1.9" profile, it provides a streamlined look while maintaining smooth tilt, swivel, and extension capabilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 15.7 lbs (7.1 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 70 lbs (31.8 kg) |
| Application | Wall |
| Color | Black |
| Height Adjustment | 6 in (15.2 cm) |
| Special Features | SHIFT |
| Universal Mounting | Yes |
| UPC | 793795539953 |
| VESA Mounting Pattern | 200 x 100mm200 x 200mm200 x 300mm300 x 100mm300 x 200mm300 x 300mm300 x 400mm400 x 100mm400 x 200mm400 x 300mm400 x 400mm |
| Certifications | UL Listed |
Resources
Verified fitment
Questions about this part
Will the VMF822-B2 fit my display?
This mount is verified against 571 display models from 19 manufacturers, including Samsung BE85FXH, LG 43LQ60006LA, Panasonic TV-50W80AEY, and Philips 42OLED808-12.
How much vertical adjustment does the SHIFT feature provide?
The 4D™ + SHIFT technology allows for a total of 6 in (15.2 cm) of height adjustment, enabling you to raise or lower the TV to clear soundbars or wall obstructions.
What VESA patterns are compatible with this mount?
It supports multiple patterns including 200x100mm, 200x200mm, 200x300mm, 300x100mm, 300x200mm, 300x300mm, 300x400mm, 400x100mm, 400x200mm, 400x300mm, and 400x400mm.
Can I adjust the TV height after it is mounted?
Yes, the SHIFT feature allows for post-installation adjustments of 3 in up or 3 in down to fine-tune the position around decor or outlets.
What is the maximum weight capacity for the VMF822-B2?
This mount is rated for a maximum weight capacity of 70 lbs (31.8 kg).
