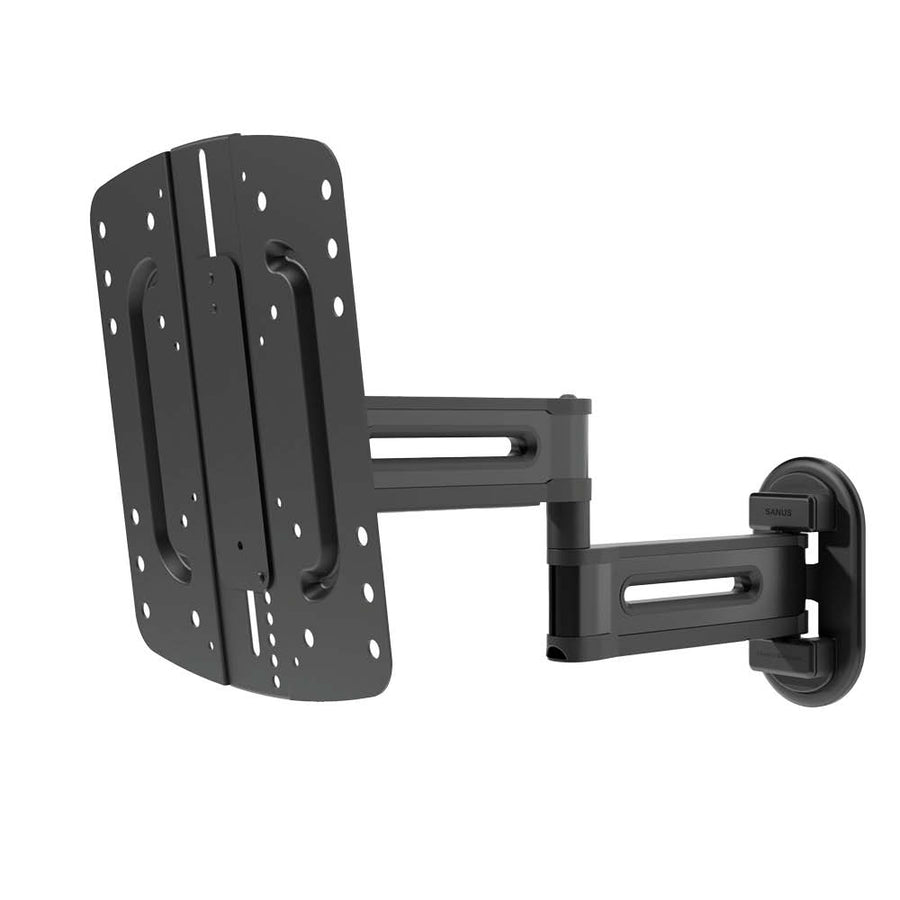

SANUS Advanced Full-Motion 4D + Shift TV Wall Mount for TVs 19"-43"
Full-motion wall mount with 4D + SHIFT height adjustment for 19"-43" displays, 40 lbs capacity, and UL listing
The Sanus VSF817-B2 is a full-motion wall mount engineered with 4D + SHIFT technology for precision positioning. This mount provides 4 inches (10.2 cm) of total vertical adjustment, allowing for 2 inches of movement both up and down. This SHIFT capability is useful for adjusting the display height to clear wall obstructions like outlets or to accommodate soundbars and seasonal décor after the initial installation. Designed for TVs ranging from 19" to 43" (48cm - 101cm), this mount supports a weight capacity of 40 lbs (18.1 kg). The slim profile sits 1.8" from the wall to maintain a streamlined look. This UL Listed mount is rigorously tested for safety and performance, supporting VESA patterns of 75 x 75mm, 100 x 100mm, 200 x 100mm, and 200 x 200mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 7.47 lbs (3.4 kg) |
| Typical Screen Size | 19" - 40" (48cm - 101cm) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Application | Wall |
| Color | Black |
| Height Adjustment | 4 in (10.2 cm) |
| Special Features | SHIFT |
| Universal Mounting | Yes |
| UPC | 793795539960 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm75 x 75mm |
| Certifications | UL Listed |
Resources
Verified fitment
Questions about this part
Will the VSF817-B2 fit my TV?
It is verified against 346 display models from 32 manufacturers, including Samsung BE43FX-H, LG 27BA450B, and Panasonic TB43W61.
How much vertical adjustment can I make with the SHIFT feature?
The SHIFT feature provides a 4 in (10.2 cm) total height adjustment range, allowing you to move the TV 2" up or 2" down.
What VESA mounting patterns are compatible with this mount?
This mount supports VESA patterns of 75 x 75mm, 100 x 100mm, 200 x 100mm, and 200 x 200mm.
Can I adjust the TV height after it is installed on the wall?
Yes, the 4D + SHIFT capability allows you to re-position the TV up to 2" up or 2" down to clear obstructions or add equipment.
What documentation is available for submittals?
You can access the SANUS VSF817 Technical Drawing and the SANUS VSF817 Installation Manual for installation and submittal details.
