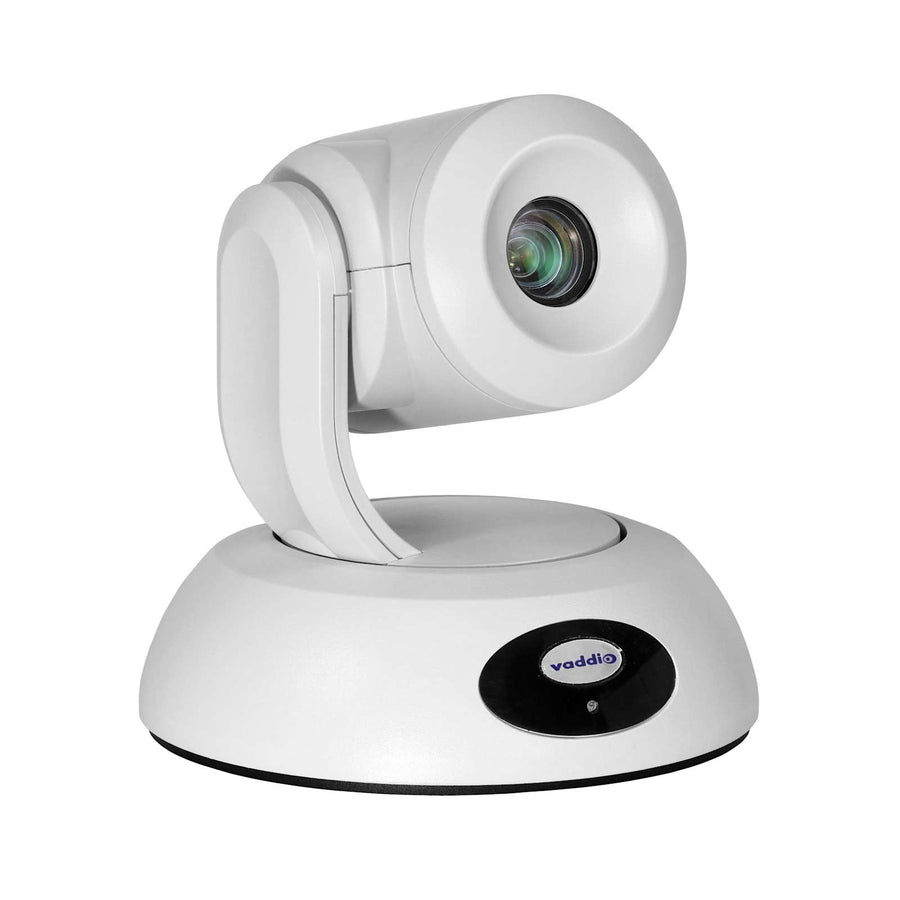

RoboSHOT 30E NDI PTZ Camera
White PTZ camera with simultaneous HDMI and native NDI streaming, 20x optical zoom, and 1/2.5-type Exmor R CMOS sensor
The Vaddio RoboSHOT 999-99437-000W is a professional PTZ camera designed for high-demand broadcast, lecture halls, and houses of worship. This Elite Series model features a 1/2.5-type Exmor R CMOS sensor and advanced image signal processing to deliver sharp 1080p 60 video, even in dim lighting environments with a minimum illumination of 1 Lux (F1.6). The camera provides simultaneous HDMI and native NewTek NDI® streaming, ensuring low-latency video delivery for live on-air control and switching. It utilizes a 30x total zoom system, combining 20x optical zoom with an additional 10x IntelliZoom™ technology to maintain image quality at longer distances. For smooth, natural movement, Vaddio's Tri-Sync Motion technology manages the pan (±150°) and tilt (+90° to -30°) axes simultaneously using silent BLDC direct drive motors. This TAA compliant unit is ideal for medium to large rooms requiring reliable IP-based control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 35
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickNDIRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMINDI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMINDIRS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077505608 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
OneLINK Bridge for Vaddio HDBaseT Cameras
999-9595-000$2,741.40
PCC Premier
999-5750-000$3,763.80
RoboSHOT 30E HDBT OneLINK Bridge PTZ Camera System
999-99630-200$7,023.60
RoboSHOT 12E HDBT
999-99600-000$4,083.30
RoboSHOT 30E HDBT PTZ Camera
999-99630-000$4,622.40
10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
Thin Profile Wall Mount Tall
535-2000-246$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
Questions about this part
What are the video output options for the RoboSHOT 30E NDI?
This camera provides simultaneous HDMI and native NDI® streaming, allowing for low-latency video delivery to both displays and network-based encoders.
Will the RoboSHOT 30E NDI fit my specific camera mount?
This SKU includes a white thin profile wall mount and mounting hardware. Additional options like the 535-2000-246 Thin Profile Wall Mount Tall or 535-2000-245 Long are available.
How is this camera powered on-site?
The RoboSHOT 30E NDI is powered via PoE+ and includes a PoE+ Midspan Power Injector in the package.
Can I control this camera remotely via a computer?
Yes, it features a built-in web-based user interface for remote control and supports RS232, Telnet, and NDI control methods.
What is the zoom capability of this PTZ camera?
It features a 20x optical zoom combined with 10x IntelliZoom™ technology, providing a total 30x zoom range without the resolution loss typical of digital cropping.
