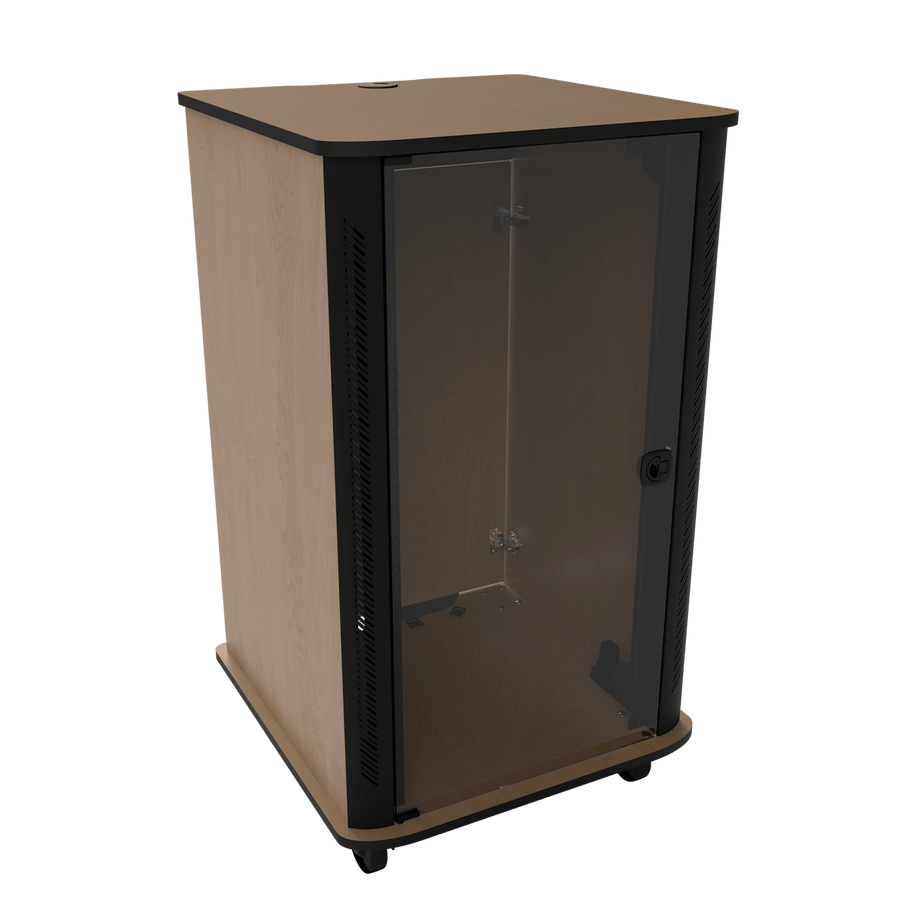

RFR Series Reference Furniture Rack - RFR-2428E1
24 RU mobile furniture rack in Kensington Maple, 350 lbs UL load capacity, with locking glass front door
The Middle Atlantic RFR-2428E1 is a 24 RU Reference Series furniture rack designed for professional integration environments requiring an elegant aesthetic and high reliability. This mobile presentation rack features a wide, stable body finished in Kensington Maple. It is engineered for durability, utilizing internal steel bracing and 3" bolt-through casters to ensure stability during transport or reconfiguration. For equipment protection, this unit includes a standard locking glass front door. The interior is equipped with 10-32 threaded adjustable front rails, providing flexibility for various component depths. The rack is optimized for passive cooling, though it is compatible with an optional thermostatic cooling blower kit, such as the RFR-CABCOOL50, to manage airflow. This unit ships fully assembled for immediate deployment. The RFR-2428E1 has a UL load capacity of 350 lbs (158.8 kg) and a usable height of 42 in (106.7 cm). This series is also available in other rack unit sizes and wood finishes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28.25 in (71.8 cm) |
| Height | 48.95 in (124.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 170 lbs (77.1 kg) |
| UL Load Capacity | 350 lbs (158.8 kg) |
| Usable Depth | 23.31 in (59.2 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 7
| Width | 27.3 in (69.3 cm) |
| Color | Kensington Maple |
| Material | Wood |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| UPC | 656747408144 |
| Certifications | UL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
16 RU Rackrail 10-32 for RFR Series
RFR-ERRK-16$88.20
50 CFM RFR Cabinet Cooler
RFR-CABCOOL50$419.40
Wide Unit Shelf System, 14 Inches Deep
WUSS14$122.40
50 CFM RFR Cabinet Cooler, 220 - 240VAC
IRFR-CABCOOL50$455.40
Lever Lock Vertical Channel 13.6 Inches
LL-VC17$20.70
Lever Lock Vertical Angle 13.6 Inches
LL-VA17$14.40
Questions about this part
Will this rack fit my monitor?
An optional flat screen mount is available that holds most monitors up to 32".
What accessories are needed for cable management or mounting?
Compatible accessories include the UTR1 1 RU Mounting Rackshelf, the RFR-ERRK-16 16 RU Rackrail, and various lace strips like the LACE-13P.
How much weight can the RFR-2428E1 support?
The unit has a UL load capacity of 350 lbs (158.8 kg).
What is the difference between this and other RFR series models?
This SKU is the 24 RU version in Kensington Maple; the series is also available in different rack unit counts and wood finishes.
Does this rack require additional cooling for heavy equipment?
While designed for passive cooling, you can add an RFR-CABCOOL50 50 CFM RFR Cabinet Cooler if necessary.
