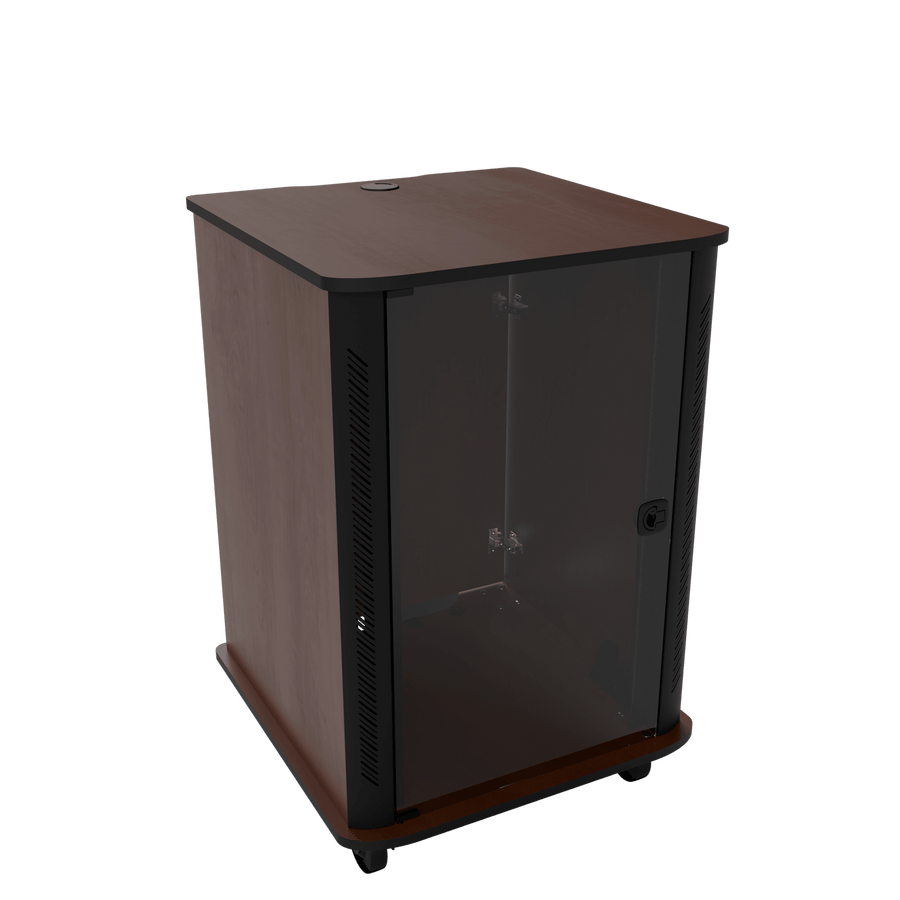

RFR Series Reference Furniture Rack - RFR-2028E0
Mobile Biltmore Cherry furniture rack, 20 RU capacity, featuring a locking glass door and bolt-through casters
The Middle Atlantic RFR-2028E0 is a mobile presentation furniture rack finished in Biltmore Cherry. Designed for professional integration, this 20 RU series rack features a wide-body design with internal steel bracing for enhanced stability and strength. It is constructed with wood and includes bolt-through 3” casters to support mobility in high-use environments. The unit is UL Listed and carries a UL load capacity of 350 lbs (158.8 kg). For equipment organization, it utilizes 10-32 threaded adjustable front rails. This rack is designed for passive cooling, though it can accommodate an optional thermostatic cooling blower kit, such as the UQFP-4RT. The unit comes fully assembled and includes a standard locking glass front door for secure equipment storage. The usable height is 35 in (88.9 cm) with a usable depth of 23.31 in (59.2 cm). Total dimensions are 27.3 in (69.3 cm) wide, 41.95 in (106.6 cm) high, and 28.25 in (71.8 cm) deep.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28.25 in (71.8 cm) |
| Height | 41.95 in (106.6 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 150 lbs (68 kg) |
| UL Load Capacity | 350 lbs (158.8 kg) |
| Usable Depth | 23.31 in (59.2 cm) |
| Usable Height | 35 in (88.9 cm) |
All other specifications 7
| Width | 27.3 in (69.3 cm) |
| Color | Biltmore Cherry |
| Material | Wood |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| UPC | 656747408106 |
| Certifications | UL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
16 RU Rackrail 10-32 for RFR Series
RFR-ERRK-16$88.20
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-815SC-20$232.20
PD Slim High Density Vertical Power Strip, 7 Outlet, 15A
PD-715SC-NS$210.60
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
8 RU Fixed Security Cover With Hinged Plexi Door
SECL-8$171.00
4 RU Rackmount Drawer, Textured Face
TD4$303.30
Questions about this part
Will this rack fit a monitor?
Yes, this rack supports an optional flat screen mount that holds most monitors up to 32”.
What is the maximum load capacity for the RFR-2028E0?
The rack has a UL Load Capacity of 350 lbs (158.8 kg).
Does this rack come pre-assembled?
Yes, the RFR-2028E0 ships fully assembled for immediate installation.
Can I add active cooling to this unit?
While designed for passive cooling, this rack is compatible with optional cooling kits like the UQFP-4RT 100 CFM fan panel.
What are the usable interior dimensions?
The usable height is 35 in (88.9 cm) and the usable depth is 23.31 in (59.2 cm).
