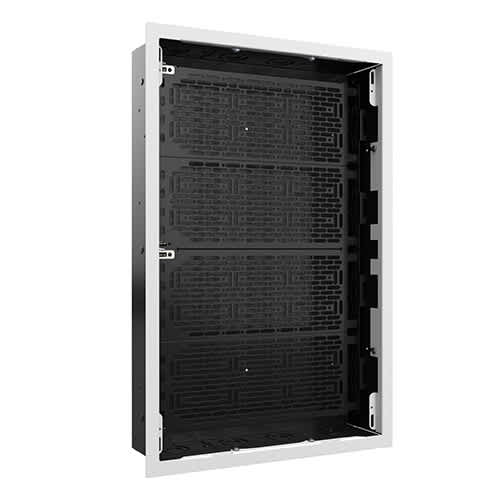

Proximity® PAC527LFW Extra-Large In-Wall Storage Box with Flange and Lever Lock™
Extra-large in-wall storage box featuring white flanges and two tool-free Lever Lock™ plates for efficient component organization
The PAC527LFW is an extra-large Proximity® in-wall storage box designed to streamline the organization of AV components within a wall cavity. This unit features two large, tool-free Lever Lock™ plates that allow installers to mount equipment on four different levels. This multi-level configuration enables efficient servicing of the system and allows for the layering of components to manage complex cabling. The design helps hide power bricks behind a backplane while equipment is mounted to the front, which is particularly useful for managing difficult port locations on AV hardware. The PAC527LFW includes white flanges and a black and white color scheme. For installations requiring specific power protection, this box is compatible with several power kit options, including the PAC527P4-KIT, the PAC527P6-KIT, or the PACPC1 two-outlet power filter kit. It is UL Listed and designed for use in 3.5" stud bays with a 3.9 in (9.9 cm) depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Shipping Weight | 20.3 lbs (9.2 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | In-Wall |
| Application | In-WallWall |
| Color | Black and White |
All other specifications 5
| Flange Color | White |
| Special Features | FlangesSurge_Filtering |
| TAA Compliant | No |
| UPC | 841872174532 |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity® Four Outlet PAC527 Power Kit
PAC527P4-KIT$458.40
Proximity® Six Outlet PAC527 Power Kit
PAC527P6-KIT$688.00
Proximity® White Cover Kit for PAC527
PAC527CVRW-KIT$79.20
Proximity® Black Cover Kit for PAC527
PAC527CVR-KIT$79.20
Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
Questions about this part
What are the dimensions for the PAC527LFW?
The unit measures 22 in (55.9 cm) wide by 14.25 in (36.2 cm) high by 3.9 in (9.9 cm) deep.
Can I add power protection to this storage box?
Yes, you can integrate various power options such as the PAC527P4-KIT, the PAC527P6-KIT, or the PACPC1 two-outlet power filter kit.
How much weight can the PAC527LFW support?
The in-wall box has a weight capacity of 40 lbs (18.1 kg), while the Lever Lock Plate has a capacity of 10 lbs (4.5 kg).
What is required to complete the installation with this box?
This box is designed for 3.5" stud bays. For specific submittals, you can refer to the PAC527LF Technical Drawing (PDF).
What is the difference between the PAC527LFW and the standard PAC527L?
The PAC527LFW is a specific variant featuring a white flange, whereas other versions in the Proximity® series may feature different flange or cover colors.
