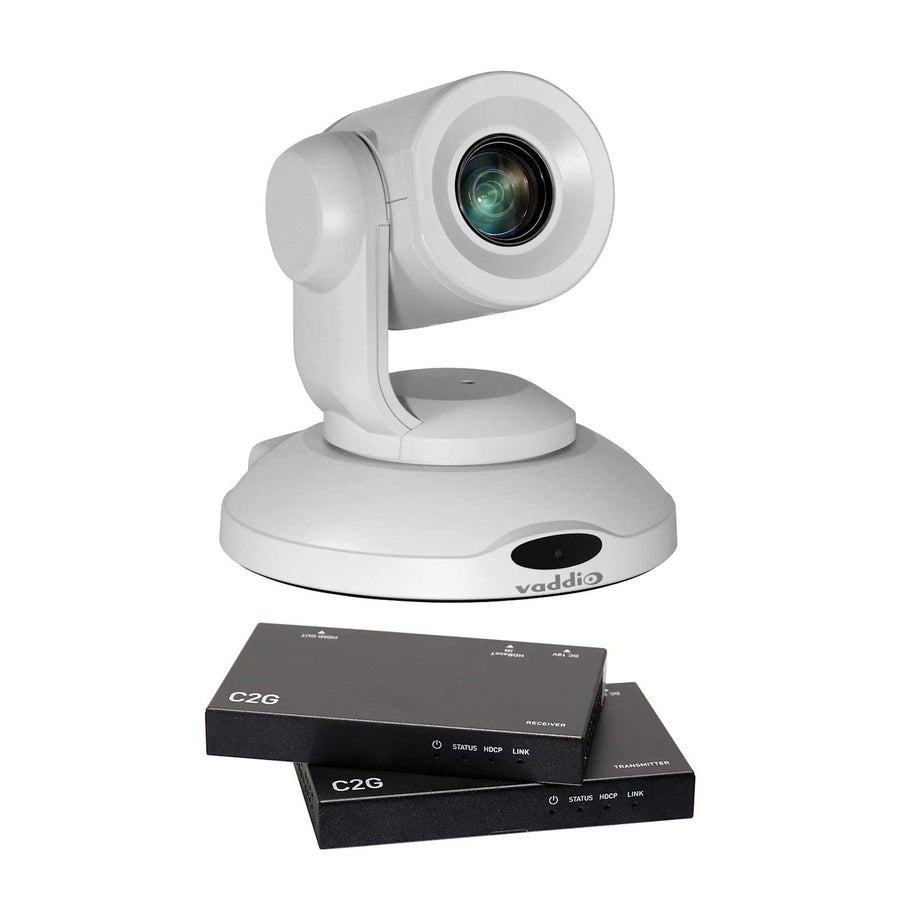

PrimeSHOT 20 HDMI with HDMI Extender
White 20x PTZ camera with simultaneous HDMI and IP streaming and included HDMI extender
The Vaddio PrimeSHOT 20 HDMI with Extender (999-30420-800W) is a white PTZ camera designed for high-definition performance in medium-sized rooms such as lecture halls, large meeting rooms, and houses of worship. This professional-grade camera features a 2.12 Megapixel 1/3 CMOS sensor capable of delivering 1080p 60 resolution. It provides versatile deployment through simultaneous HDMI and H.264 IP streaming outputs, allowing for both local display and network-based distribution at the same time. The system includes a C2G HDMI extender that can send the PrimeSHOT 20 HDMI signal up to 230 ft when utilizing a Cat6a cable. Control is highly flexible via a built-in web-based user interface, RS232, Telnet, an IR remote, or a joystick. This TAA-compliant solution includes 16 custom preset positions and utilizes stepper motors for smooth pan and tilt movement, with a tilt range of +90° to -30° and a pan range of ±160°.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.5 in (16.5 cm) |
| Height | 7.25 in (18.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.4 lbs (1.5 kg) |
| Width | 7.1 in (18 cm) |
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
All other specifications 33
| Color | White |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium Room |
| Extension System | with HDMI Extender |
| Field of View | 55.4° Wide End to 2.9° Tele End |
| Field of View Wide | Less than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/3 CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.5 Lux (F1.6) |
| OneLINK Compatibility | With OneLINK EZIM |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±160° |
| Pixels | 2.12 Megapixel |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077508623 |
| White Balance | AutoManual |
| Zoom | 20x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
Will this camera work for my large lecture hall or meeting room setup?
Yes, the PrimeSHOT 20 HDMI is recommended for medium to large rooms, including lecture halls, training rooms, and houses of worship, providing 1080p 60 resolution.
How far can I run the HDMI signal using the included extender?
The included C2G HDMI extender can send the signal up to 230 ft when you use a Cat6a cable.
Can I control the camera remotely over the network?
Yes, it features a built-in web-based user interface for remote configuration and management, as well as RS232 and Telnet support.
Does this camera support simultaneous local and network output?
Yes, the PrimeSHOT 20 HDMI provides simultaneous HDMI and IP (H.264) streaming outputs for different distribution needs.
What is included in the package with this SKU?
This package includes the PrimeSHOT 20 HDMI camera in White, a thin profile White wall mount with hardware, an IR Remote Commander, and the C2G HDMI extender transmitter unit.
