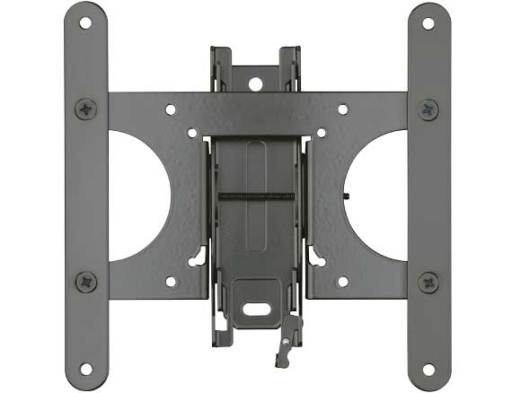

Premium Series Tilt Mount For 19" - 40" flat-panel TVs up 50 lbs.. - VST4-B1
Tilting wall mount for 19" - 40" displays, 50 lbs capacity, with +12°/-12° adjustment for optimal viewing angles
The Sanus VST4-B1 provides adjustable viewing angles for 19" - 40" flat-panel TVs with a weight capacity of up to 50 lbs (22.7 kg). This black tilting mount is designed to optimize the viewing experience from various positions, such as a couch or the floor, by providing a tilt range of +12° to -12°. The unit features a tool-free mount assembly to streamline the installation process for professional integrators. Once the TV is mounted, the tilt functionality allows users to easily angle the display to facilitate better cable access and reduce glare. Security is managed through a built-in locking system and safety tabs that provide an audible connection during assembly. This Sanus Premium Series mount is UL Listed and Safety Tested for reliable performance in residential or commercial settings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 5 in (12.7 cm) |
| Height | 8.87 in (22.5 cm) |
| Product Weight | 3.31 lbs (1.5 kg) |
| Shipping Dimensions | 8.27" x 9.05" x 1.97" (210.1 x 229.9 x 50.1 mm) |
| Shipping Weight | 3.31 lbs (1.5 kg) |
| Typical Screen Size | 19" - 40" (48cm - 101cm) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 8.87 in (22.5 cm) |
All other specifications 9
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Installation Items | 1/8" Drill Bit3/8" Box Wrench7/16" Socket WrenchElectric DrillPencilPhillips Head ScrewdriverTape MeasureWrench |
| Tilt | +12° / -12° |
| Universal Mounting | No |
| UPC | 793795527219 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm75 x 75mm |
| Certifications | UL Listed |
Resources
You'll need these with it
AV Series 12-Port/8 PoE+ Gigabit Managed Switch with US Power Cord
AMS-1208P$615.00
Multi-Mount PDU, 18 Outlet, 15A & 2-Stage Surge
PD-1815R-RN$387.00
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
CMK70 Flat Screen TV Cord and Cable Power Kit
CMK70$89.53

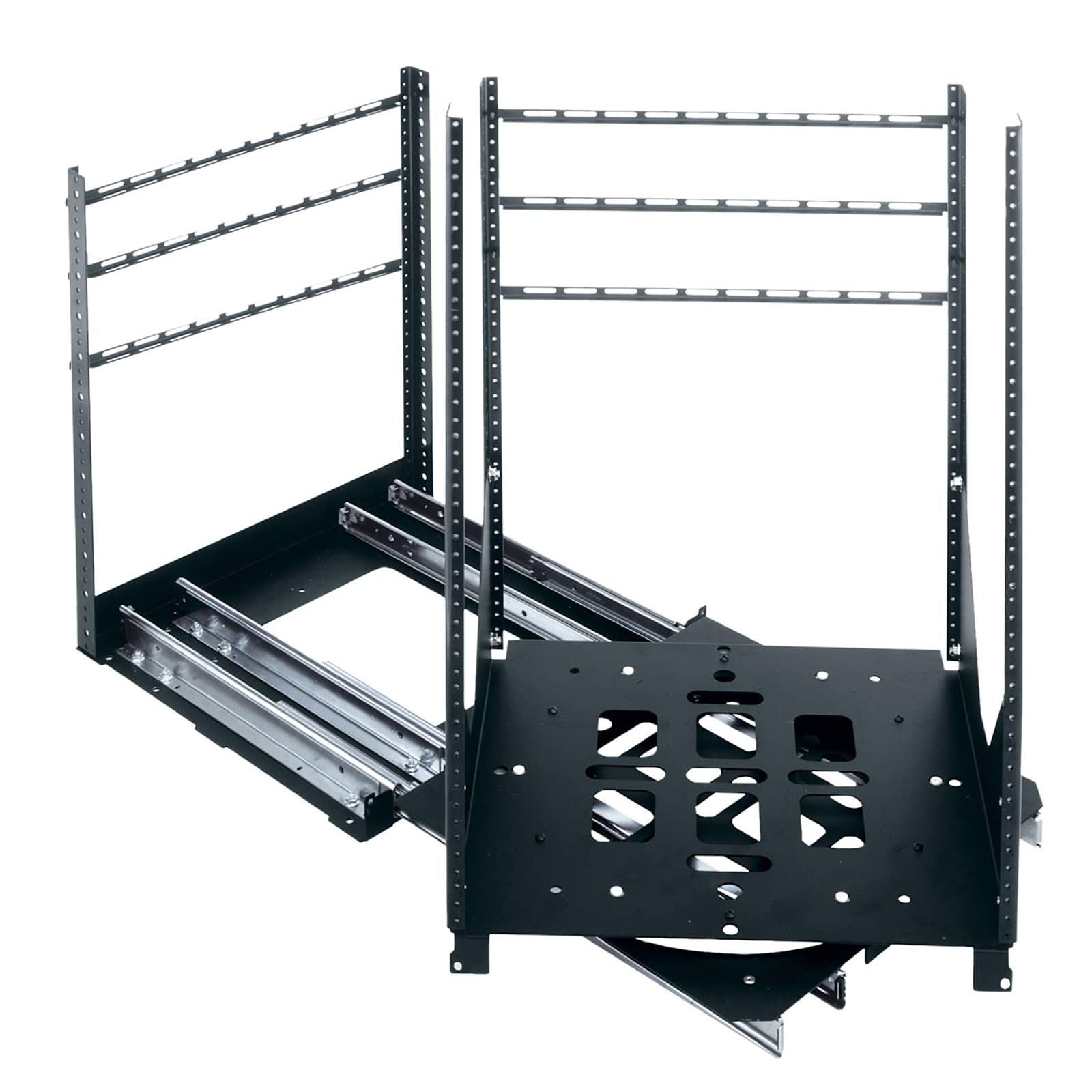

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-12
SRSR-4-12$1,098.90
Basic Series 31-inch tall for small bookshelf speakers
BF31-B1
2U Steel Vented Blanking Panel; Fits all Component Series AV racks
CAVBP2-B1
Streaming Device Panel for most small devices up to 3 lbs.
SASP1-B1
Adjustable height for satellite speakers
EFSATNot stocked
Questions about this part
Will this VST4-B1 mount fit my specific TV?
This mount is designed for 19" - 40" flat-panel TVs with VESA mounting patterns of 75 x 75mm, 100 x 100mm, 200 x 100mm, and 200 x 200mm.
How much weight can the Sanus VST4-B1 support?
The VST4-B1 is rated for a maximum weight capacity of 50 lbs (22.7 kg) for displays within the 19" - 40" range.
What tools are required to install this mount?
To complete installation, you will need an electric drill, 1/8" drill bit, 3/8" box wrench, 7/16" socket wrench, a wrench, a Phillips head screwdriver, a pencil, and a tape measure.
Does this mount allow for easy cable management?
Yes, the +12° to -12° tilt adjustment allows you to angle the TV to improve access to rear-facing ports and cables.
What is the difference between this and other Sanus mounts?
This VST4-B1 is a specific tilting model in the Sanus Premium Series; check the series documentation for differences in tilt range or weight capacity compared to other VST4 variants.
