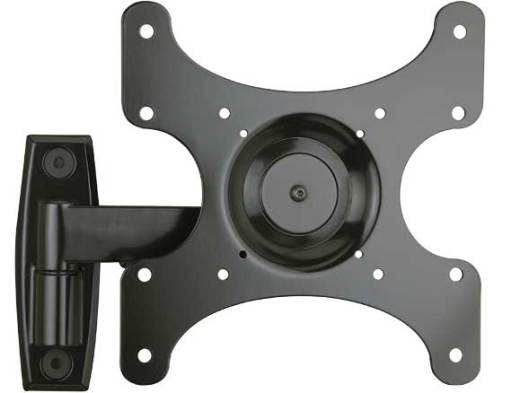

Premium Series Full-Motion Mount For 13" - 39" flat-panel TVs up 50 lbs. - VSF409-B1
Full-motion wall mount for 13"–39" displays, 50 lbs capacity, featuring tilt, swivel, and extension adjustments
The Sanus VSF409-B1 is a premium series full-motion wall mount designed to provide optimal viewing angles for small to medium-sized displays. It supports typical screen sizes from 13" to 39" (33cm - 99cm) and manages a weight capacity of up to 50 lbs (22.7 kg). This black-finished mount offers comprehensive adjustability, allowing installers to tilt the display by +15° to -15°, swivel it between +15° and -15°, and provide a roll of +180° to -180°. Additionally, the mount allows for a 5.25 in (13.3 cm) extension from the wall. The VESA-compatible design supports multiple mounting patterns, including 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, and 200 x 200mm. The mount features separate controls for roll, tilt, and swivel to make positioning the screen effortless once it is mounted. For a clean installation, this series allows for the concealment of cables to maintain a professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 5.25 in (13.3 cm) |
| Height | 9.6 in (24.4 cm) |
| Product Weight | 6.18 lbs (2.8 kg) |
| Typical Screen Size | 13" - 39" (33cm - 99cm) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 11.73 in (29.8 cm) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
All other specifications 8
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete InstallationsElectric DrillHammerPencilPhillips Head ScrewdriverTape Measure |
| Roll | +180° / -180° |
| Swivel | +15° / -15° |
| Tilt | +15° / -15° |
| Universal Mounting | No |
| UPC | 793795527240 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm75 x 75mm |
Resources
Questions about this part
Will the Sanus VSF409-B1 fit my TV?
This mount is designed for 13" to 39" displays with a weight capacity of 50 lbs (22.7 kg). It is compatible with several VESA patterns, including 75x75mm and up to 200x200mm.
What tools are required for installation?
To install this mount, you will need an electric drill, a 3/8" masonry bit for concrete installations, a 1/2" socket wrench, a Phillips head screwdriver, a hammer, a tape measure, and a pencil.
How much can I extend the TV from the wall?
The VSF409-B1 provides an extension of 5.25 in (13.3 cm) from the wall, allowing you to pull the display forward for better viewing or to manage cables.
Can I mount the display in portrait mode?
Yes, the VSF409-B1 supports both landscape and portrait orientations, thanks to its +180° to -180° roll capability.
Which document should I use for installation?
For step-by-step instructions, refer to the VSF409 Installation Manual PDF. For technical dimensions and layout, the VSF409 Technical Drawing PDF is available.
