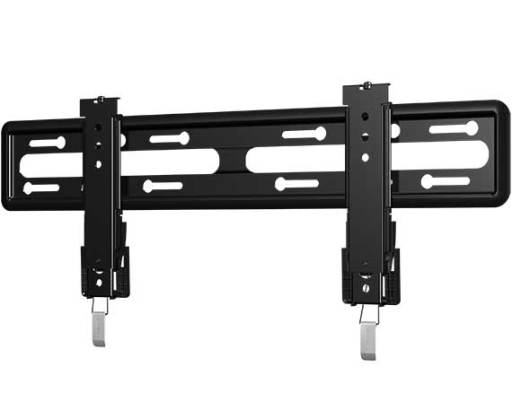

Premium Series Fixed-Position Mount for 51" - 80" flat-panel TVs up 125 lbs. - VLL5-B1
Fixed-position wall mount for 42" - 90" displays, 175 lbs capacity, with lateral shift and UL certification
The Sanus VLL5-B1 is a Premium Series fixed-position mount designed to place your TV at eye level by positioning the display as close to the wall as possible. This wall application mount features a 2.82 in (7.2 cm) distance from the wall, providing a low-profile aesthetic for residential or commercial installations. For installers, the tool-free mount assembly facilitates a quick setup, while expandable TV brackets ensure a proper fit for various displays. This model allows for lateral shift, enabling you to slide the TV side-to-side for precise positioning once it is hung. To assist with cable management, integrated hidden straps allow you to pull down to access the cabling behind the display. The VLL5-B1 is UL Certified and safety tested, supporting a wide range of VESA patterns from 200 x 200mm up to 600 x 400mm.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 2.82 in (7.2 cm) |
| Height | 18.72 in (47.6 cm) |
| Product Weight | 8.62 lbs (3.9 kg) |
| Shipping Dimensions | 32.28" x 7.87" x 2.36" (820 x 199.9 x 60 mm) |
| Shipping Weight | 8.62 lbs (3.9 kg) |
| Typical Screen Size | 42" - 90" (107cm - 228cm) |
| Weight Capacity | 175 lbs (79.4 kg) |
| Width | 30 in (76.2 cm) |
All other specifications 7
| Adjustability | FixedLateral Shift |
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Masonry Bit - Concrete Installations7/32" Drill BitElectric DrillHammerPhillips Head ScrewdriverTape Measure |
| Universal Mounting | Yes |
| UPC | 793795526236 |
| VESA Mounting Pattern | 200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm500 x 300mm500 x 400mm600 x 200 mm600 x 300mm600 x 400mm |
Resources
Questions about this part
Will the Sanus VLL5-B1 fit my display?
This mount is compatible with a wide range of displays from 42" to 90" (107cm - 228cm). It supports various VESA patterns including 200x200mm, 400x200mm, 400x400mm, and up to 600x400mm.
How much weight can I hang on this mount?
The VLL5-B1 is rated for a maximum weight capacity of 175 lbs (79.4 kg).
Can I adjust the TV after it is mounted to the wall?
Yes, the mount allows for lateral shift so you can slide the TV side-to-side for perfect positioning, and it includes leveling adjustments for the display.
What tools do I need to install the VLL5-B1?
Required tools for installation include an electric drill, a 7/32" drill bit, a 3/8" masonry bit for concrete, a 1/2" socket wrench, a Phillips head screwdriver, a hammer, and a tape measure.
How do I access the cables behind the TV?
The mount features integrated hidden straps that you can pull down to gain access to the cabling behind your display.
