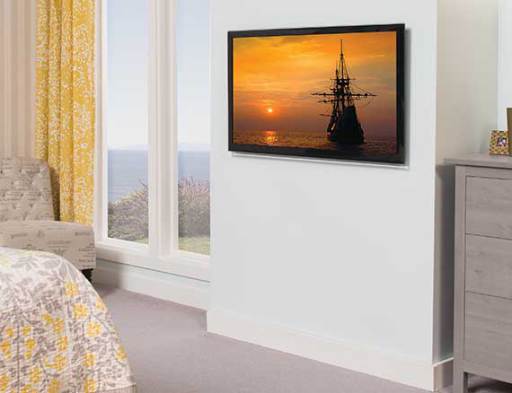

Premium Series Fixed-Position Mount for 40" - 50" flat-panel TVs up 75 lbs. - VML5-B1
Fixed-position wall mount for 40"–50" displays up to 75 lbs, featuring lateral shift and tool-free assembly
The Sanus VML5-B1 is a Premium Series fixed-position mount designed for 40" to 50" flat-panel TVs with a weight capacity of 75 lbs (34 kg). This wall application mount is engineered for viewing at eye level, allowing you to position your display as close to the wall as possible. To ensure a perfect fit once installed, the mount provides lateral shift capability and leveling adjustments. The expandable TV brackets support a universal mounting range from 100 x 200mm up to 400 x 410mm, covering various VESA patterns including 100x100mm, 200x200mm, and 400x400mm. For simplified installation, this unit features tool-free mount assembly and includes the necessary hardware. Accessing rear cabling is facilitated by hidden straps that can be pulled down to reveal the connections behind the TV. This UL Certified mount is safety tested for reliable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 18.72 in (47.6 cm) |
| Package Count | 1 |
| Product Weight | 7.46 lbs (3.4 kg) |
| Shipping Weight | 7.46 lbs (3.4 kg) |
| Typical Screen Size | 40" - 50" (1016mm - 1270mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 21.3 in (54.1 cm) |
| Adjustability | FixedLateral Shift |
All other specifications 7
| Application | Wall |
| Color | Black |
| Installation Items | 1/2" Socket Wrench3/8" Drill Bit3/8" Masonry Bit - Concrete Installations7/32" Drill BitElectric DrillHammerPhillips Head ScrewdriverTape Measure |
| Universal Mounting | Yes |
| UPC | 793795526205 |
| VESA Mounting Pattern | 100 x 100mm100 x 200mm200 x 100mm200 x 200mm200 x 300mm200 x 400mm300 x 200mm300 x 300mm300 x 400mm400 x 200mm400 x 300mm400 x 400mm |
| Certifications | UL Listed |
Resources
Questions about this part
Will the VML5-B1 fit my TV?
This mount fits 40" to 50" displays with a weight capacity of 75 lbs (34 kg). It supports VESA patterns including 100x100mm, 200x200mm, 400x400mm, and 200x400mm.
How do I adjust the TV position once it is mounted?
The VML5-B1 allows for lateral shift to move the TV side-to-side and includes leveling adjustments to ensure the display is perfectly positioned after hanging.
What tools are required for the installation of the VML5-B1?
Required tools include an electric drill, a 3/8" drill bit, a 7/32" drill bit, a 3/8" masonry bit for concrete, a 1/2" socket wrench, a hammer, a Phillips head screwdriver, and a tape measure.
Can I access the cables behind the TV easily?
Yes, the mount features hidden straps that you can pull down to provide access to the cables behind your display.
Which document should I use for submittals?
The VML5 - Technical Drawing (PDF) is available for technical submittals, and the VML5 - Installation Manual (PDF) is available for installation guidance.
