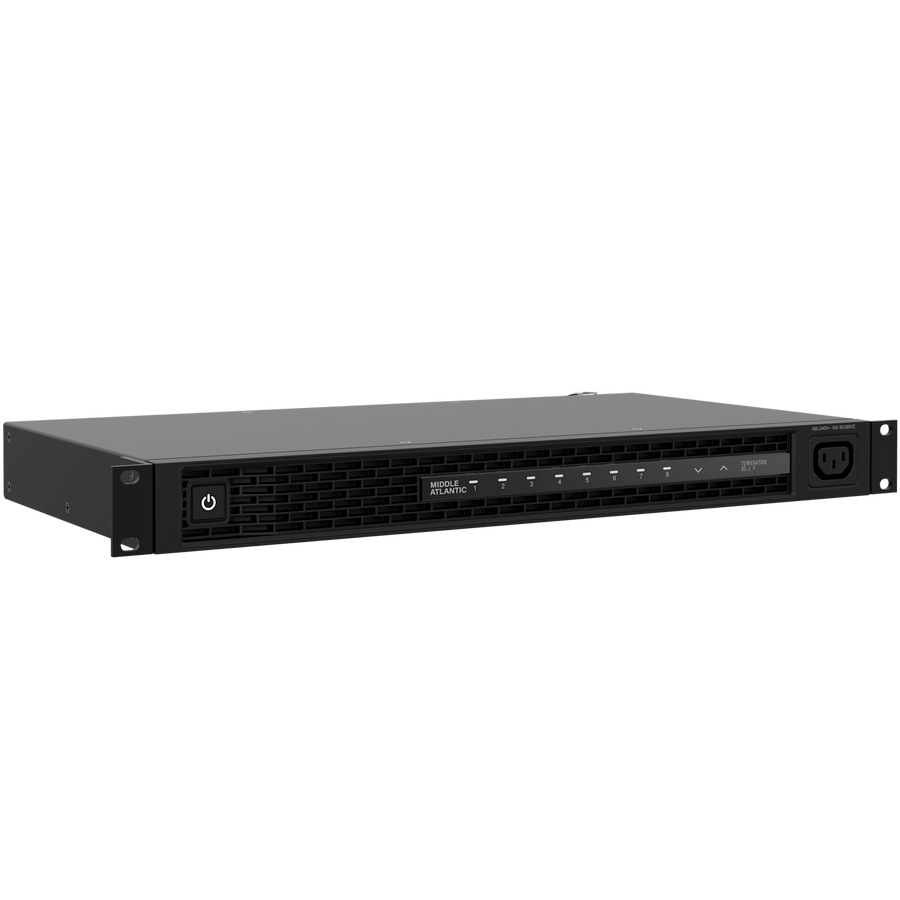

Premium Plus PDU with RackLink™, 100-240V, 9 IEC Outlets
Intelligent IEC PDU with RackLink™ technology, featuring 9 IEC C13 outlets and 16 Amp capacity for remote AV system management
The RLNK-P916R-IEC-NS is a Premium+ IEC PDU with RackLink™ designed for advanced remote system management in demanding AV environments. This unit provides granular monitoring and control through RackLink™ technology, allowing for local or virtual management via 3rd party AV control systems, cloud platforms, and SNMP. It supports 208V single phase applications common in broadcast and IT environments. With 9 IEC C13 receptacle outlets, users can achieve superior metering accuracy, monitoring total power draw down to the individual outlet level, including voltage, power factor, and energy usage. For increased environmental awareness, this PDU can connect multiple environmental sensors to monitor temperature and humidity. This series is HETMA Approved and is compliant with the AVIXA Energy Management Standard. The unit also supports remote firmware updates via the network to ensure maximum system uptime.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 100-240 V |
| Amps | 16 Amp |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 11.25 lbs (5.1 kg) |
| Available Internationally | Yes |
| Outlet Count | 9 |
| Output Ports | LAN |
| Plug Type | IEC C20 |
All other specifications 5
| Receptacle Type | IEC C13 |
| TAA Compliant | No |
| UPC | 656747406058 |
| Certifications | CEcULusFCCUKCA |
| Warranty | 3 years |
Resources
Questions about this part
Will the RLNK-P916R-IEC-NS work with my existing AV control system?
Yes, it offers universal compatibility through custom drivers, SNMP v3/MIB, and JSON-RPC for integration with 3rd party control systems.
Can I manage this PDU remotely via the cloud?
Yes, RackLink™ Cloud provides a centralized dashboard to monitor and manage your Premium+ PDUs and other manufacturer devices from a single interface.
How much power can this unit support?
This 16 Amp PDU supports 100-240 V AC voltage input and is suitable for 208V single phase applications in broadcast and IT settings.
What environmental monitoring can I add to this PDU?
You can connect multiple environmental sensors to monitor humidity and temperature, enabling alerts for potential threats to system uptime.
Which document should I use for system submittals?
The Premium+ IEC PDU with RackLink A&E Specification Sheet is available for detailed technical submittals.
