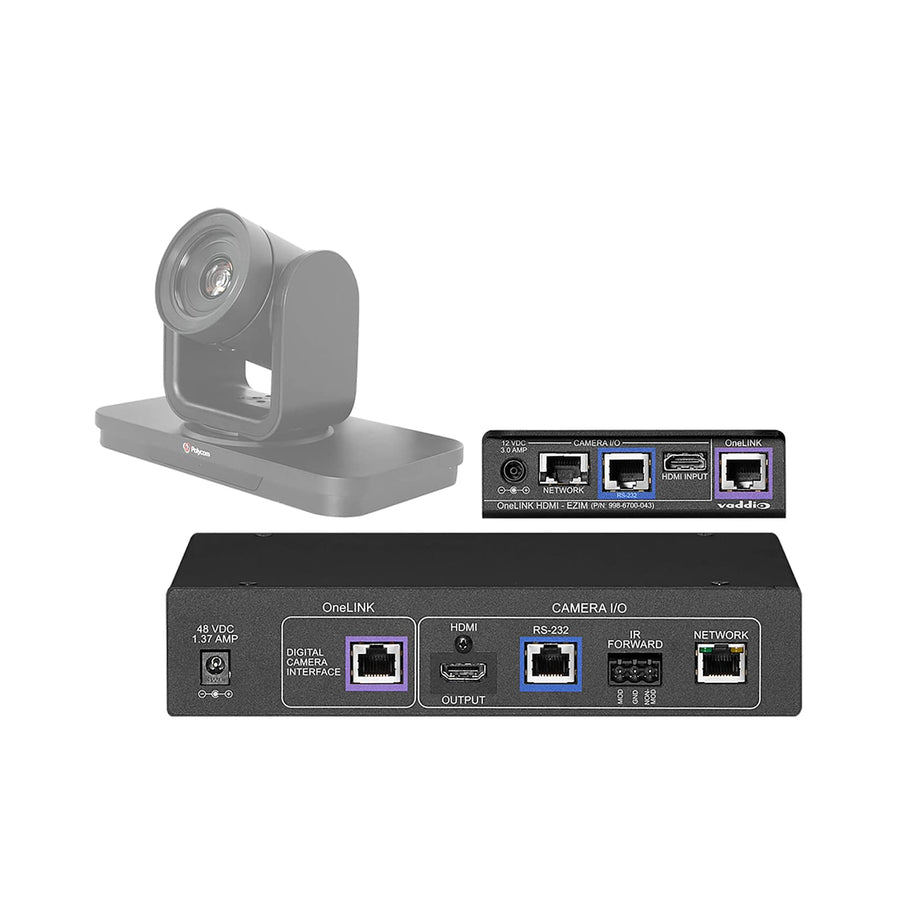

Polycom Codec Kit for OneLINK HDMI to EagleEye IV Camera
HDBaseT extension kit for Polycom EagleEye IV cameras, providing power, video, and control over a single Cat-5e or Cat-6 cable
The 999-9520-000 Polycom Codec Kit for OneLINK HDMI to EagleEye IV Camera provides a streamlined method for extending essential signals across a conference room. Using HDBaseT technology, this kit allows an installer to transmit power, video, and control over a single Cat-5e cable for distances up to 230 ft. (70m), or a Cat-6 cable for distances up to 328 ft. (100m). This setup is specifically tailored for use with Polycom 300, 310, 500, or 700 codecs and is compatible with the Polycom EagleEye IV camera. By decoupling the codec from the camera location, this kit provides significantly more flexibility for room design and equipment placement. It includes an HDBaseT interface to manage the extension and supports IR forwarding for remote control of the codec. The system features a built-in browser-based user interface for straightforward configuration and system administration. This kit is TAA compliant and carries UL Listing, CE, and FCC certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.5 in (16.5 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.3 lbs (1.5 kg) |
| Shipping Dimensions | 14" x 13" x 13" (355.6 x 330.2 x 330.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 8.38 in (21.3 cm) |
All other specifications 16
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | Polycom |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Extension Type | CameraCameraCodec |
| Input Ports | HDbT |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDMIIP Streaming |
| Power Cord | US Cord |
| Power Supply | 1.37A12VDC3.0A48VDC |
| Power Type | Local Power |
| TAA Compliant | Yes |
| UPC | 840077502041 |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
48 Volt Power Supply (1.35 Amp)
440-1370-148$86.40
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
IN-Wall Enclosure for CISCO Precision HD, LifeSize HD, Polycom EagleEye
999-2225-015$425.70
Vaddio Device Controller
999-42300-000$855.00
Polycom Codec Kit for OneLINK HDMI to Vaddio HDBaseT Cameras
999-9545-000$1,629.00
Polycom Codec Kit for OneLINK Bridge to EagleEye IV Camera
999-9620-000$3,386.70
Questions about this part
Will the 999-9520-000 kit work with my Polycom codec?
Yes, this kit is specifically packaged for use with Polycom 300, 310, 500, or 700 series codecs and is compatible with the Polycom EagleEye IV camera.
What is the maximum cable distance for this OneLINK HDMI extension?
You can achieve an extension of up to 328 ft. (100m) when using a Cat-6 cable, or up to 230 ft. (70m) when using Cat-5e.
What additional equipment do I need for a full installation?
Depending on your rack configuration, you may require the Vaddio 48 Volt Power Supply (440-1370-148) or specific mounting kits like the 998-6000-005 undermount brackets.
How do I control the codec remotely using this kit?
The kit supports IR forwarding for traditional remote control, and also offers RS232, Telnet, and a built-in web UI for configuration and management.
Which documentation is used for system submittals?
Installers can refer to the OneLINK HDMI and EZIM System Drawing (PDF) or the OneLINK for Polycom Eagle Eye IV Tech Spec (PDF) for detailed technical information.
