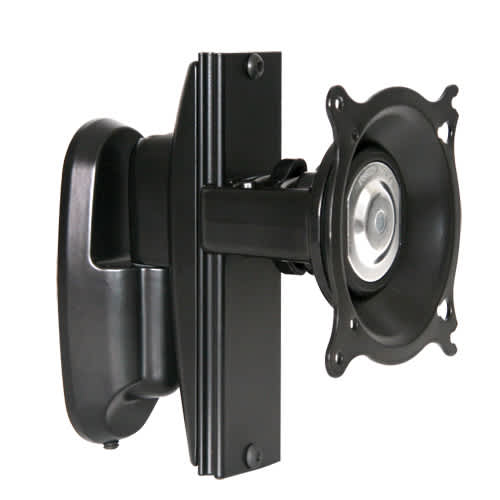

Pivot/Tilt Wall Mount (with Height Adjustment)
Ergonomic pivot/tilt wall mount with 4.8" manual height adjustment for single displays up to 40 lbs
The Chief KWP130B is a versatile workstation mount designed for both wall and desk-tabletop applications. This black-finished solution provides essential ergonomic adjustability, including extension, swivel, and tilt movements to optimize viewing angles. It features a manual height adjustment range of 4.8" (121.9 mm), allowing installers to fine-tune the display position after mounting. This mount is built for a low-profile, sleek appearance in professional office or home environments. It is compatible with OFB Furniture Brackets and includes a post-installation leveling roll to ensure a perfectly aligned installation. The unit supports both landscape and portrait orientations for a single display with a weight capacity of 40 lbs (18.1 kg). For installers requiring specific interface hardware, this mount is compatible with a wide range of accessories, including the FSB1U Small Flat Panel Universal Interface Bracket and the KSA1003B Extension Arm Accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.6 in (14.2 cm) |
| Height | 8.5 in (21.6 cm) |
| Manual Height Adjustment | 4.8 in (121.9 mm) |
| Minimum Depth | 5.6 in (14.2 cm) |
| Overall Dimensions | 8.5" x 4.6" x 5.6" (215 x 116 x 142mm) |
| Shipping Weight | 5.75 lbs (2.6 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Width | 4.6 in (11.7 cm) |
All other specifications 10
| Adjustability | Extension, Swivel, Tilt |
| Application | Desk-TabletopWall |
| Color | Black |
| Compatible With OFB Furniture Brackets | Yes |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872120300 |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
KSA1003 Extension Arm Accessory - KSA1003B
KSA1003B$51.20

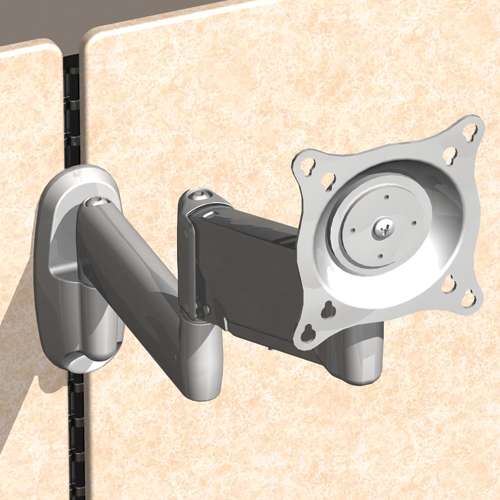

Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
50x50mm VESA Interface Bracket
FSB4073$47.20
KSA1003 Extension Arm Accessory - KSA1003S
KSA1003S$51.20
Office Furniture Bracket for Ergotron® Wall Track
OFB207$44.00

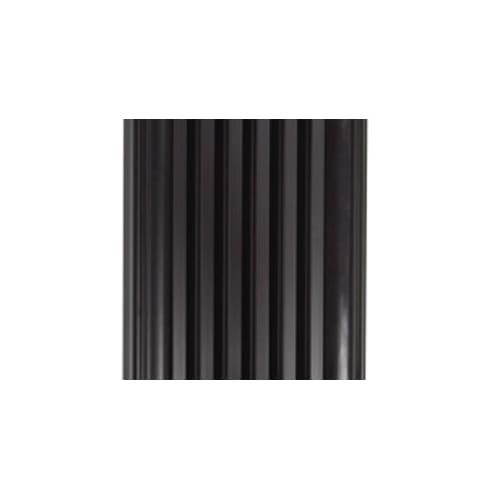

Wall Track Accessory
KSA1022B$219.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Verified fitment
Questions about this part
Will the KWP130B work with my specific monitor?
Yes, it is verified against 7,505 display models from 281 manufacturers, including Samsung 150MP, LG 17LS5R, NEC 1940CX, Dell 1704FPT, and Philips 10BDL3051T.
What additional hardware is needed for furniture mounting?
This mount is compatible with OFB Furniture Brackets and can use accessories like the FSB1U Universal Interface Bracket for specific mounting requirements.
Can I adjust the height once it is installed?
The KWP130B provides 4.8" (121.9 mm) of manual height adjustment and includes a post-installation leveling roll for precise positioning.
What is the maximum weight capacity for this mount?
The KWP130B is rated for a weight capacity of 40 lbs (18.1 kg) per single display.
Can this mount be used in portrait orientation?
Yes, the KWP130B supports both landscape and portrait orientations to suit your workstation setup.
