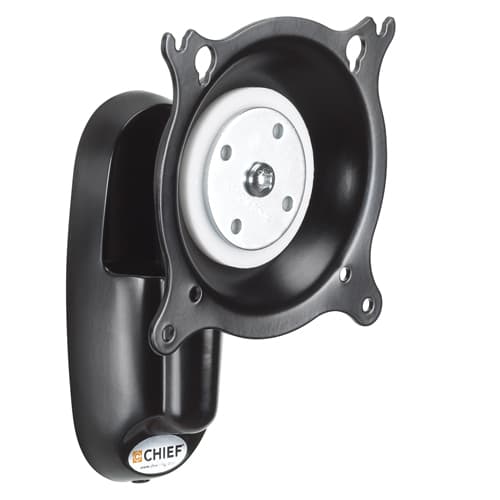

Pivot/Tilt Wall Mount - KWP110B
Universal pivot and tilt wall mount for single displays, featuring swivel and tilt adjustability for ergonomic positioning
The Chief KWP110B is a versatile pivot and tilt wall mount designed to provide ergonomic adjustability for single flat panel monitors in both office and home environments. This universal solution supports landscape and portrait orientations, allowing users to customize their viewing angle for optimal productivity. The mount features swivel and tilt capabilities to ensure the display is positioned correctly for the user. It is engineered for a low-profile appearance, maintaining a sleek design once installed. For installation, this mount is compatible with single-stud mounting applications and requires a minimum depth of 2.94 in (7.5 cm). The unit has a weight capacity of 40 lbs (18.1 kg). To ensure the display is perfectly aligned after mounting, the KWP110B includes a post-installation leveling roll. This model is finished in black and is compatible with OFB Furniture Brackets for integrated workstation solutions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 2.94 in (7.5 cm) |
| Shipping Dimensions | 10.5" x 7.25" x 3.7"(266.7 x 184.2 x 94 mm) |
| Shipping Weight | 3.24 lbs (1.5 kg) |
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | Swivel and Tilt |
| Application | Desk-TabletopWall |
| Color | Black |
All other specifications 7
| Compatible With OFB Furniture Brackets | Yes |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872043944 |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
KSA1003 Extension Arm Accessory - KSA1003B
KSA1003B$51.20
Office Furniture Bracket for Steelcase® Series 9000 system
OFB140$44.00
50x50mm VESA Interface Bracket
FSB4073$47.20
KSA1003 Extension Arm Accessory - KSA1003S
KSA1003S$51.20
Office Furniture Bracket for Ergotron® Wall Track
OFB207$44.00
Wall Track Accessory
KSA1022B$219.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Verified fitment
Questions about this part
Will this KWP110B mount fit my specific display?
This mount is verified against 7,984 display models from 265 manufacturers. Examples of compatible displays include the Samsung 150MP, LG 15LA60, NEC 1740CX, Dell 1504FP, Sharp 1T-C24FA2KF2NB, and Philips 10BDL3051T.
What do I need to buy to use this with office furniture?
The KWP110B is compatible with OFB Furniture Brackets, such as the OFB140 for Steelcase® Series 9000 systems or the OFB213 for Kimball® Wall Panels.
What is the required wall mounting depth?
The KWP110B requires a minimum depth of 2.94 in (7.5 cm) for installation.
Can I adjust the display angle after it is mounted?
Yes, the mount features swivel and tilt adjustability, and includes a post-installation leveling roll to fine-tune the display position.
Is there a different color option for this mount?
This SKU is the black version; the KWP110 series is also available in a silver finish.
