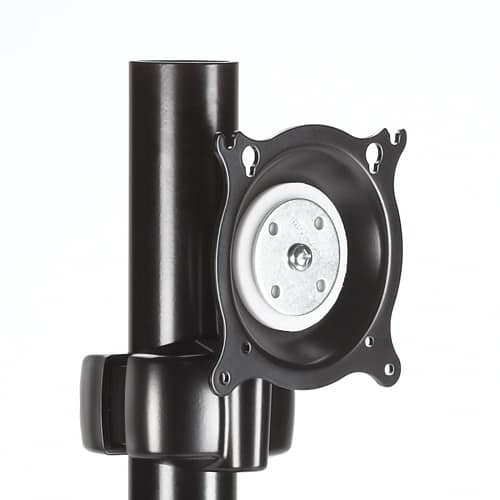

Pivot/Tilt Pole Mount - KPP110S
Silver pole mount for single displays with VESA 75x75mm or 100x100mm, featuring tilt, swivel, and pivot adjustments
The Chief KPP110S is a silver-finished pivot and tilt pole mount designed for single-display workstation or tabletop applications. Utilizing Centris Technology, this mount allows for smooth, fingertip tilt adjustments in all directions by utilizing the screen's center of gravity. Users can achieve customized movement through friction-adjustable pivot points, which support both portrait and landscape orientation. This solution is versatile for existing setups, as it fits any pole with an outer diameter between 1.75" - 2" (44.5mm - 51mm). The design incorporates a teardrop hole pattern to facilitate quick and easy mounting of the screen. Integrated pathways within the arms allow for organized cable management during and after installation. For installers requiring precise alignment, the mount includes a post-installation leveling roll. This universal solution is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns and can be used with various interface brackets, such as the FSB1U or FSB4073, to accommodate specific hardware needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 2.94 in (7.5 cm) |
| Pole Diameter Range | 1.75" - 2" (44.5mm - 51mm) |
| Shipping Dimensions | 10.5" x 7.25" x 3.7"(266.7 x 184.2 x 94 mm) |
| Shipping Weight | 2.52 lbs (1.1 kg) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Adjustability | SwivelTilt |
| Application | Desk-TabletopPole |
| Color | Silver |
All other specifications 6
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872043616 |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60

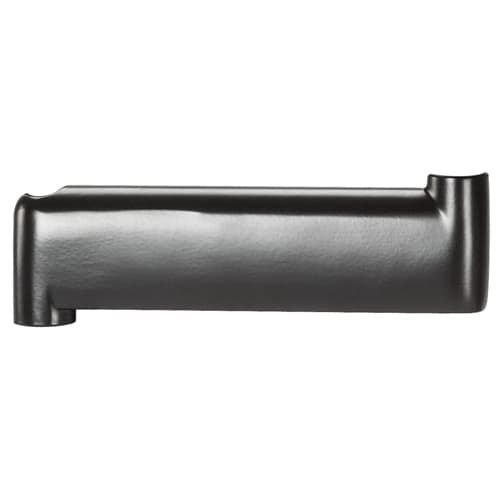

KSA1003 Extension Arm Accessory - KSA1003B
KSA1003B$51.20
50x50mm VESA Interface Bracket
FSB4073$47.20
KSA1003 Extension Arm Accessory - KSA1003S
KSA1003S$51.20
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00

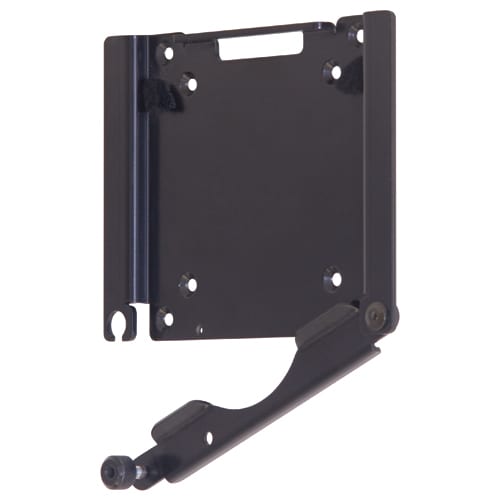

Centris Quick Connect Bracket - KSA1024B
KSA1024B$61.60
Small Flat Panel Interface Brackets - FSB4394B
FSB4394BDiscontinued
Verified fitment
Questions about this part
Will the Chief KPP110S fit my specific monitor?
The KPP110S is verified against 6,654 display models from 213 manufacturers. Examples include Samsung 150MP, LG 15LA60, NEC 1940CX, Sharp IT23M1U, Philips 150B10, and Toshiba 14DL74.
What pole diameters can this mount be installed on?
This mount is designed for flexible installation on any pre-existing pole that has an outer diameter ranging from 1.75" to 2" (44.5mm - 51mm).
What is the maximum weight capacity for this pole mount?
The KPP110S has a weight capacity of 40 lbs (18.1 kg) for a single display setup.
How do I handle cable management with this mount?
The arms feature predefined pathways inside the assembly to allow for easy cable management through the mounting structure.
Does the KPP110S require additional interface brackets?
While the mount supports standard VESA patterns, you may need specific interface brackets like the FSB1U, FSB4073, or the FSB4243B depending on your display's mounting requirements.
