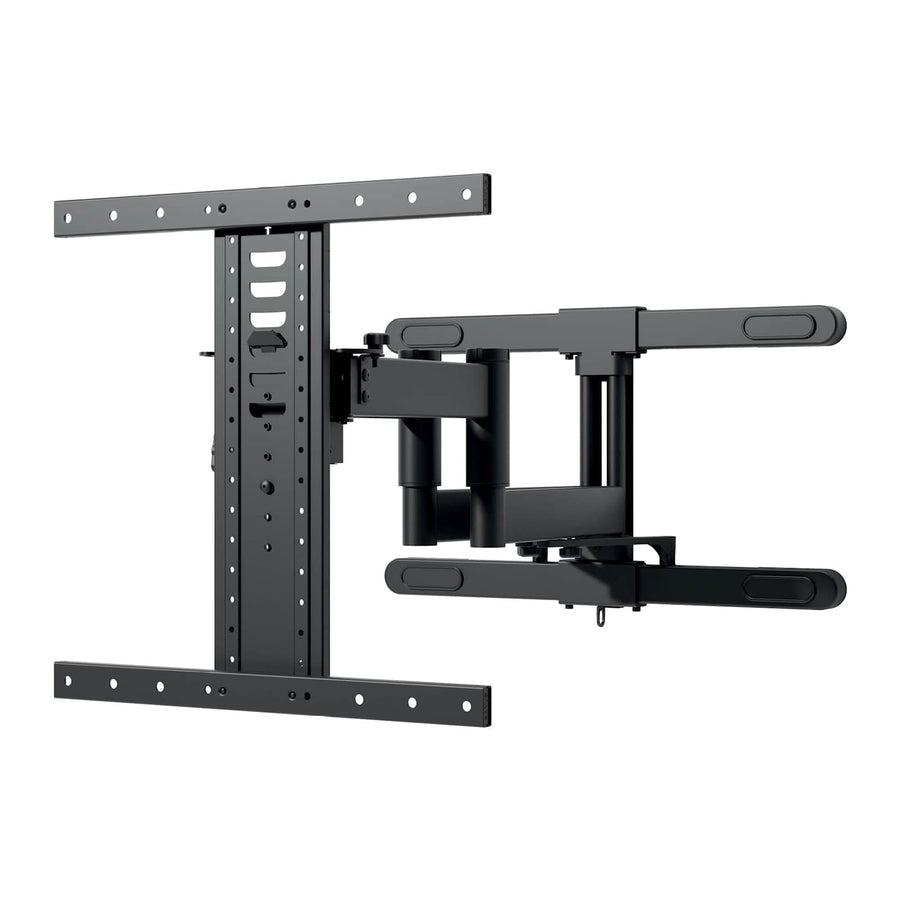

Outdoor Full Motion Mount for TVs 40" - 85"
Weatherproof full motion mount for 40"-85" displays with 25" extension and tilt/swivel adjustability
The Sanus VODLF125-B2 is an outdoor full motion mount engineered to withstand the elements using a corrosion-resistant coating and stainless-steel hardware. Designed for displays ranging from 40" to 85", this mount provides 25 inches of extension to facilitate easy cable access and flexible viewing positions. It features Virtual Axis™ Fingertip Tilt technology, allowing for tilt adjustments of +7° to -13° to manage glare. The mount provides a slim profile, placing the display just 2.74 inches (7 cm) from the wall when not extended. For security in public outdoor spaces, a padlock can be added (not included). Users can achieve precise leveling and height adjustments of up to 12.45 cm (4.9"). This unit is UL listed and includes motion lock knobs to secure the television in a desired position.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.74 in (7 cm) |
| Height | 17.01 in (43.2 cm) |
| Package Depth | 3.07 in (7.8 cm) |
| Package Height | 17.01 in (43.2 cm) |
| Package Width | 30.59 in (77.7 cm) |
| Shipping Weight | 23.5 lbs (10.7 kg) |
| Typical Screen Size | 40" - 85" (102cm -216cm) |
| Weight Capacity | 120 lbs (54.4 kg) |
All other specifications 9
| Width | 26.97 in (68.5 cm) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Installation Items | Allen WrenchAwlPencilPhillips Head ScrewdriverStud FinderTape MeasureWrench |
| Special Features | Outdoor Use |
| Tilt | +7° / -13° |
| UPC | 793795538239 |
| VESA Mounting Pattern | 100 x 100mm200 x 200mm300 x 300mm400 x 200mm400 x 300mm400 x 400mm500 x 200mm |
Resources
Verified fitment
Questions about this part
Will the Sanus VODLF125-B2 fit my TV?
It is verified against 1,427 display models from 47 manufacturers, including the Samsung 85Q75OG, Sony 55BZ30P, LG 43LQ60006LA, and Panasonic TB55W61.
What tools do I need to install this mount?
The installation requires an Allen wrench, awl, pencil, Phillips head screwdriver, stud finder, tape measure, and a wrench.
How much can I tilt and swivel the display?
The mount features Virtual Axis™ technology for fingertip tilting from +7° to -13° and includes swivel and extension capabilities.
Can I secure the mount with a lock?
Yes, you can add a padlock (not included) to the mount to provide extra security for your outdoor display.
Does this mount support my VESA pattern?
It supports several VESA patterns, including 100x100mm, 200x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, and 500x200mm.
