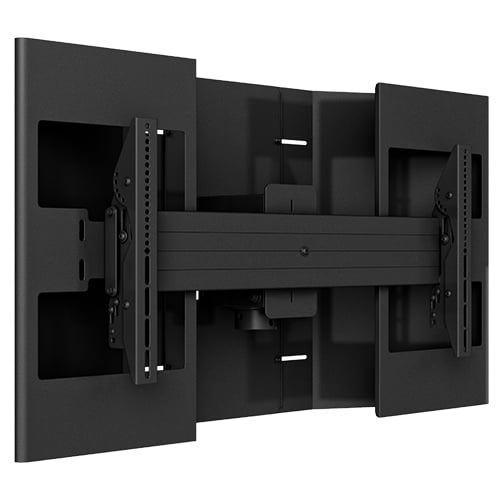

Outdoor Flat Panel Single Ceiling and Pedestal Mount, Large
Outdoor ceiling or pedestal mount for 42"–65" displays, 250 lbs capacity, featuring +7.6° to -20° tilt
The Chief OLCM1U is an outdoor flat panel mount engineered to withstand harsh environments, including rain, humidity, ocean air, sun exposure, and high winds. This large-format mount is designed for both ceiling and floor-cart applications, providing a robust solution for outdoor digital signage. It is UL 2442 Part 2 listed for outdoor use and features a weatherproof construction consisting of corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. To protect technology not specifically designed for wind exposure, an included wind deflector provides an additional layer of defense. The system arrives in three pieces—the mount, column, and plate—to facilitate a safer, more manageable four-step installation process by keeping the lifting load separate during assembly. For specialized mounting, the ODA330B Outdoor Concrete Ceiling and Pedestal Plate is available as a compatible accessory. The mount offers a tilt range of +7.6° to -20°, utilizing set locking points to allow installers to adjust multiple displays without guesswork.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 34.5" x 19.75" x 23.5" (876.3 x 501.7 x 596.9 mm) |
| Shipping Weight | 68.99 lbs (31.3 kg) |
| Typical Screen Size | 42" - 65" (1067mm - 1651mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Adjustability | Fixed |
| Application | CeilingFloor-Cart |
| Color | Black |
| Number of Displays | 1 |
All other specifications 7
| Orientation | Landscape |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| Tilt | +7.6° to -20° |
| UPC | 841872171951 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will this mount fit my outdoor display?
The OLCM1U is verified against 12,756 display models from 348 manufacturers. Examples of compatible displays include Samsung 400BX, Sony 43BZ35P, LG 100QNED85AU, and Panasonic 55VW3KD.
What mounting options are available for the OLCM1U?
This mount supports both ceiling and floor-cart applications. For concrete installations, you can use the ODA330B Outdoor Concrete Ceiling and Pedestal Plate accessory.
How much weight can this outdoor mount support?
The OLCM1U has a maximum weight capacity of 250 lbs (113.4 kg) for a single display in landscape orientation.
What VESA patterns are compatible with this mount?
The universal interface accommodates VESA mounting patterns ranging from 200 x 100mm up to 800 x 400mm.
What is the tilt range for the OLCM1U?
The mount provides a tilt adjustment range of +7.6° to -20° with established locking points to assist during installation and adjustment.
