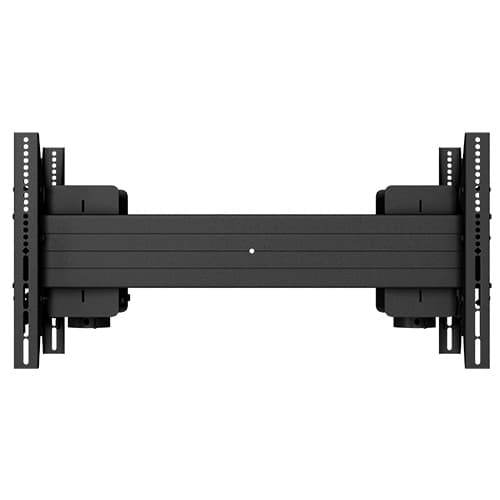

Outdoor Flat Panel Back-to-Back Ceiling and Pedestal Mount, Extra-Large
Outdoor back-to-back mount for 65"–84" displays, 250 lbs capacity, supporting dual displays in ceiling or pedestal configurations
The Chief OXCB1U is an extra-large outdoor back-to-back mount designed to host two displays in a landscape orientation. Built to withstand harsh environmental conditions, including rain, humidity, salt air, and high winds, this mount is rated for wind-compatible applications up to a 2000 ft-lbs maximum moment force. The weatherproof construction meets UL 2442 Part 2 standards for outdoor use, utilizing corrosion-resistant paint, UV-rated plastics, and stainless-steel hardware. For easier installation, the system is shipped in three distinct pieces—the mount, the column, and the plate—allowing for a safer, more manageable four-step installation process. The mount provides a tilt range of +7.6° to -20° with integrated locking points to simplify the adjustment of multiple displays. It is suitable for both ceiling and floor-cart applications, making it a versatile solution for outdoor signage and digital out-of-home environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 34.63" x 15.63" x 12.5" (879.7 x 397.1 x 317.5 mm) |
| Shipping Weight | 61.12 lbs (27.7 kg) |
| Typical Screen Size | 65" - 84" (1651mm - 2134mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Adjustability | Tilt |
| Application | CeilingFloor-Cart |
| Color | Black |
| Number of Displays | 2 |
All other specifications 7
| Orientation | Landscape |
| Special Features | Multi-DisplayOutdoor Use |
| TAA Compliant | Yes |
| Tilt | +7.6° to -20° |
| UPC | 841872171975 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the OXCB1U fit my outdoor display?
The OXCB1U is verified against 12,072 display models from 349 manufacturers, including Samsung, LG Electronics, Philips, Panasonic, Sharp, and Toshiba.
What mounting options are available for this series?
The OXCB1U can be configured for either ceiling mounting or floor-cart pedestal mounting depending on your installation site.
What do I need to buy to mount this to concrete?
For concrete ceiling or pedestal installations, the OXCB1U is compatible with the ODA330B Outdoor Concrete Ceiling and Pedestal Plate.
How do I adjust the vertical angle of the displays?
The mount features a tilt range of +7.6° to -20°, utilizing set locking points to assist in aligning both displays during installation.
Which technical documents are available for submittals?
Technical submittals can be supported using the OXCB1U Technical Drawing (PDF) or the OXCB1U CAD Drawing (dwg) found in the resources section.
