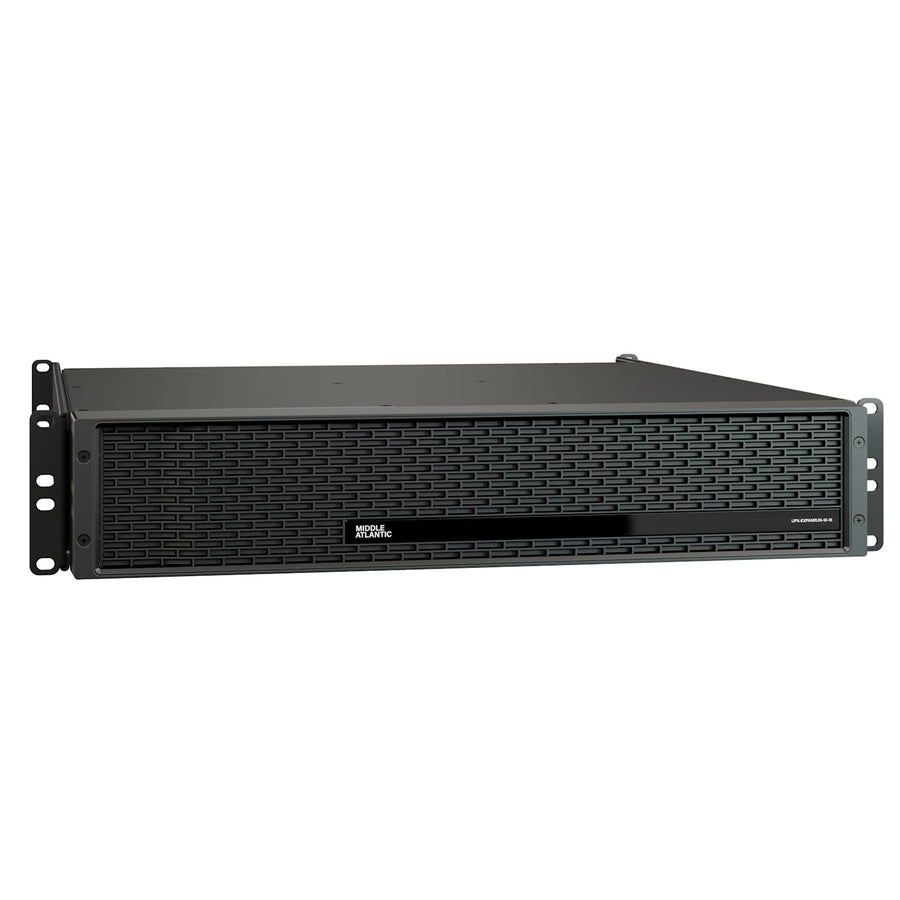

NEXSYS™ Online UPS Expandable Run Time Unit For 2000VA UPS Units
Expandable run time unit for 2000VA NEXSYS Online UPS systems, supports daisy-chaining up to 4 units for extended backup power
The UPX-EXPANRUN-OL20 is an expandable run time unit designed specifically for 2000VA NEXSYS Online UPS units. This 2 RU module provides critical additional runtime for professional AV systems during power anomalies or outages. To maximize your backup duration, installers can daisy-chain up to 4 of these units together, either by connecting them directly to the NEXSYS UPS or by daisy-chaining them from each other. For a streamlined installation, these units arrive pre-assembled and connected from the factory, including pre-installed rack ears with 4-post mounting brackets. The 6 ft (1.8 m) cord length facilitates easy integration into existing racks. Maintenance is simplified through a front-access panel that allows for hot-swappable battery replacement, ensuring the system can be serviced without disrupting power to the connected equipment. This unit operates within a temperature range of 32° to 104°F (0° to 40°C) and features NEMA 5-15P input and NEMA 5-15R receptacles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
All other specifications 21
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 63.9 lbs (29 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 72.09 lbs (32.7 kg) |
| VA Rating | 2000VA |
| Volts AC | 120 VAC |
| Volts DC | 48 VDC |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| TAA Compliant | No |
| Topology | Online |
| UPC | 656747397783 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it

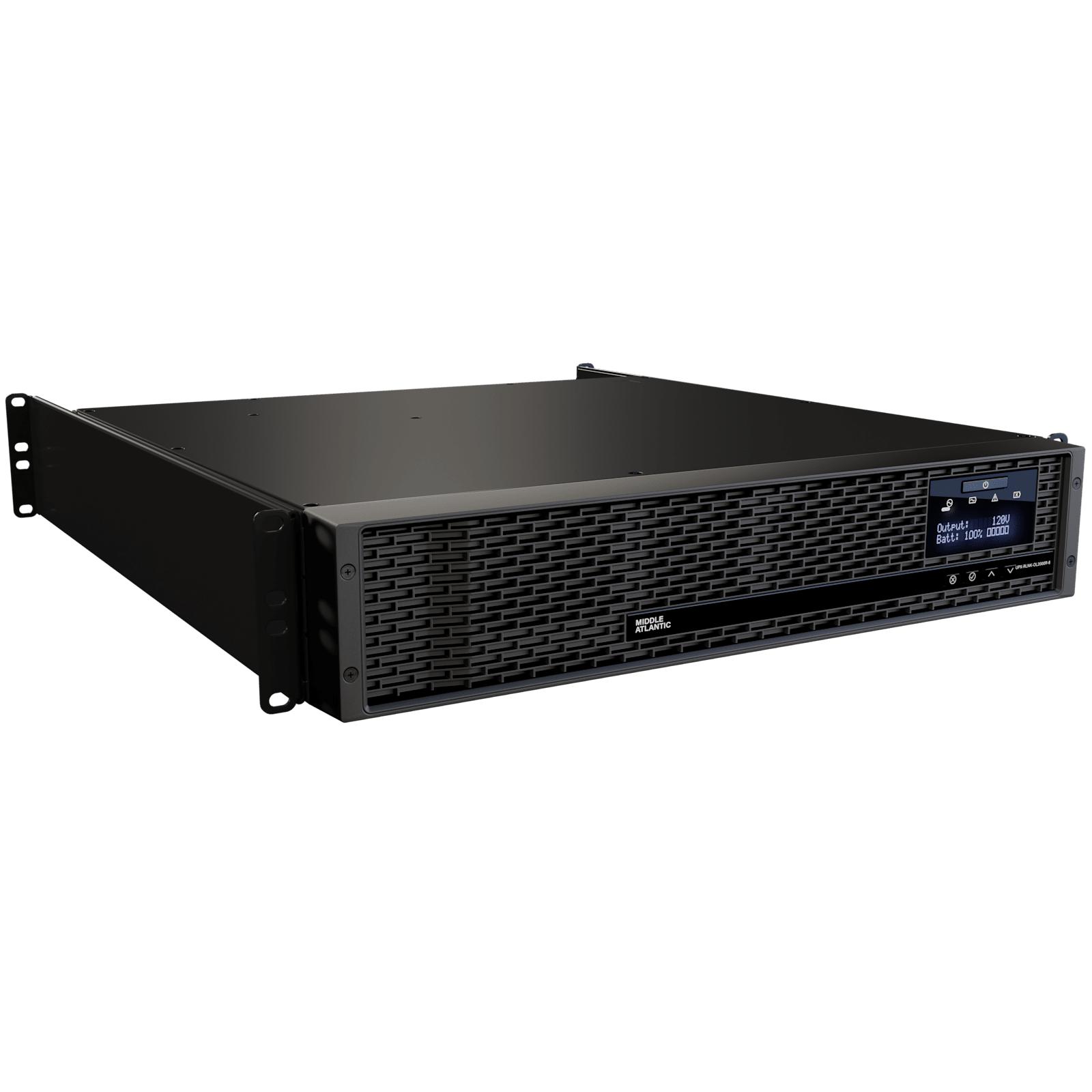

NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-OL2000R-8$5,609.70
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL2000R-2$4,730.40
Questions about this part
How many expansion units can I connect to a single 2000VA UPS?
You can connect up to 4 Expandable Run Time Units to your NEXSYS Online UPS to extend total runtime.
Can the battery be replaced without turning off the system?
Yes, the battery is hot-swappable through a front access panel, allowing for service without disrupting the system.
Does this unit require assembly before it can be rack mounted?
No, it arrives with the battery already connected and rack ears pre-installed for 4-post mounting.
What is the required mounting depth for this unit?
The unit requires a mounting depth between 18 in (457.2 mm) minimum and 32 in (81.3 cm) maximum.
Which documents are available for submittals?
The NEXSYS Online UPS Backup Power System A&E Specification Sheet is available for system design requirements.
