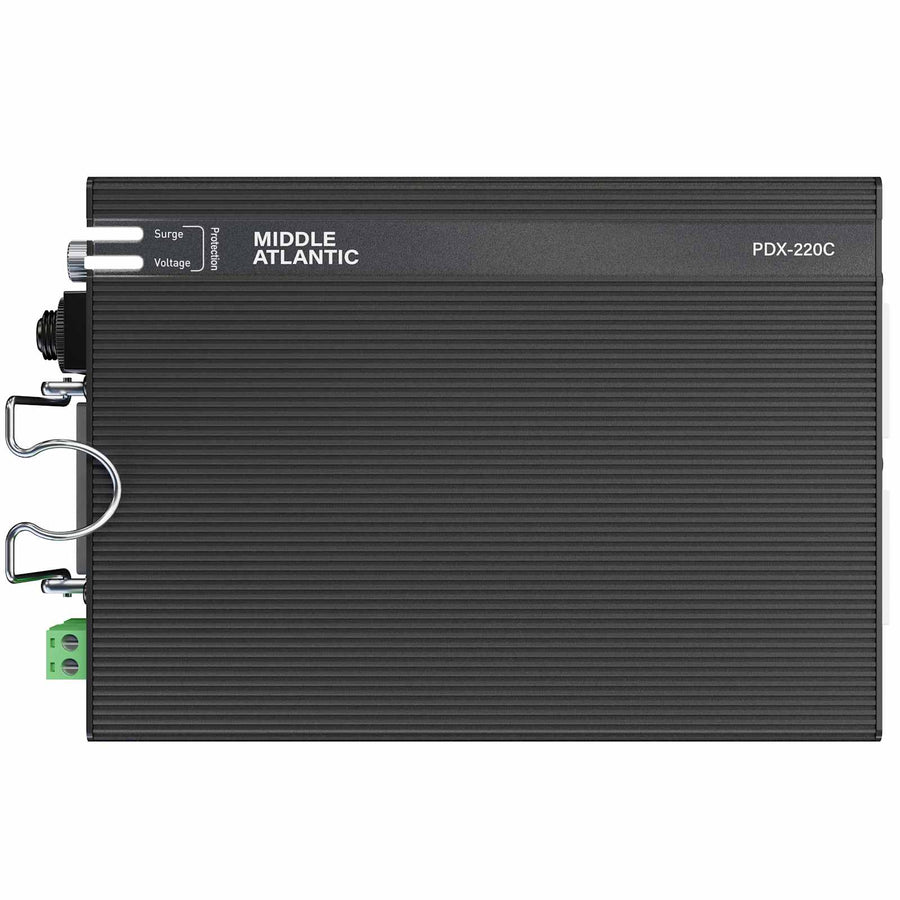

NEXSYS™ 2 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
Compact 20A power PDU with 2 NEMA 5-20R outlets, multi-stage surge protection, and flexible mounting for tight installation spaces
The PDX-220C is a compact NEXSYS™ PDU designed specifically for space-constrained applications such as digital signage, kiosks, or in-wall enclosures. This 0 RU power solution provides 20 Amps of capacity via 2 NEMA 5-20R outlets. To accommodate bulky DC transformers and wall warts, the outlets are specifically oriented to prevent blocked receptacles. The unit features 3 stages of multi-stage MOV surge protection to defend sensitive electronics against voltage spikes. It includes visual indicators of surge status on both the front and the side of the chassis. For enhanced system reliability, the dry contact port allows for selectable on/off voltage protection; if an over or under voltage event occurs, the outlets automatically shut off and only restore power once voltage returns to the acceptable range. This unit includes a 2 ft (0.6 m) cord with a NEMA 5-20P plug and is UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 20 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 6.5 in (16.5 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 3.77 lbs (1.7 kg) |
All other specifications 11
| Width | 4.65 in (11.8 cm) |
| Isolated Ground | No |
| Outlet Count | 2 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Multi-Stage MOV |
| TAA Compliant | No |
| UPC | 656747396397 |
| Certifications | UL Listed |
| Warranty | 3 years |
Resources
Questions about this part
Will the PDX-220C fit in a tight digital signage enclosure?
Yes, the PDX-220C features a compact 0 RU design with a 6.5 in (16.5 cm) depth and 4.65 in (11.8 cm) width, making it ideal for behind-the-display applications.
How does the PDX-220C handle power surges and voltage fluctuations?
It utilizes 3 stages of multi-stage MOV surge protection. Additionally, the dry contact port allows the unit to automatically disconnect power during over or under voltage events and restore it once voltage is stable.
Can I use power bricks or wall warts with this PDU?
Yes, the 2 NEMA 5-20R outlets are oriented to prevent larger DC transformers from blocking adjacent receptacles.
What mounting options are available for this PDU?
The unit includes two mounting options: a clamp and L-brackets, which can be attached to a Lever Lock™ plate for tool-free installation in a rack or kiosk.
What is the warranty for the PDX-220C?
This product is covered by a 3-year warranty from the manufacturer.
