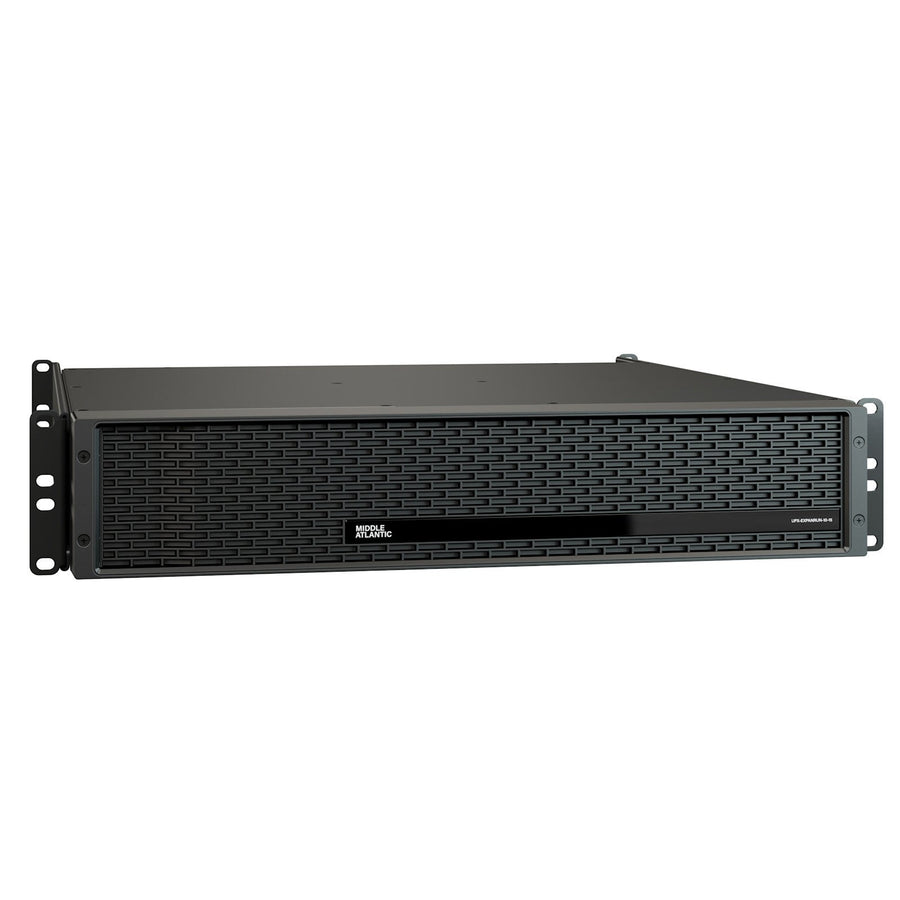

NEXSYS™ UPS Expandable Run Time Unit For 1000 and 1500VA UPS Units
Expandable battery unit for 1000VA and 1500VA NEXSYS UPS systems, providing extended runtime via hot-swappable 2U modules
The UPX-EXPANRUN-10-15 provides essential additional runtime for AV systems during power anomalies when paired with NEXSYS UPS products. This 2 RU unit is specifically designed for use with 1000VA and 1500VA NEXSYS UPS models. To maximize system autonomy, installers can daisy-chain up to four of these Expandable Run Time Units together. This unit is delivered pre-assembled from the factory with the battery already connected, allowing for immediate integration into a rack. For ease of maintenance, the battery is hot-swappable via a front-access panel, ensuring that servicing the unit does not require a full system shutdown. It features pre-installed rack ears with 4-post mounting brackets, making it ready for installation even in racks with a third pair of rackrails. The unit operates within a temperature range of 32° to 104°F (0° to 40°C) and connects via a 6 ft (1.8 m) NEMA 5-15P power cord.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.46 in (8.8 cm) |
| Mounting Depth Max | 36 in (91.4 cm) |
| Mounting Depth Min | 22 in |
All other specifications 21
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 52 lbs (23.6 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 58.4 lbs (26.5 kg) |
| VA Rating | 1000VA, 1500VA |
| Volts AC | 120 VAC |
| Volts DC | 36 VDC |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| TAA Compliant | No |
| Topology | Line Interactive |
| UPC | 656747395673 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it
Questions about this part
Will the UPX-EXPANRUN-10-15 work with my existing NEXSYS UPS?
Yes, this unit is designed specifically to provide extra runtime for 1000VA and 1500VA NEXSYS UPS products.
How many expandable units can I connect to a single system?
You can daisy-chain up to four Expandable Run Time Units to extend the total runtime for your AV system.
Can I replace the battery without turning off my equipment?
Yes, the battery is hot-swappable through a front-access panel, allowing for service without disrupting the active system.
Is this unit ready for rack installation out of the box?
Yes, the unit comes factory-assembled with pre-installed 4-post mounting brackets and the battery already connected.
What replacement battery is needed for this unit?
The NEXSYS UPS Replacement Battery part number is UPX-RPLBATT-A.
