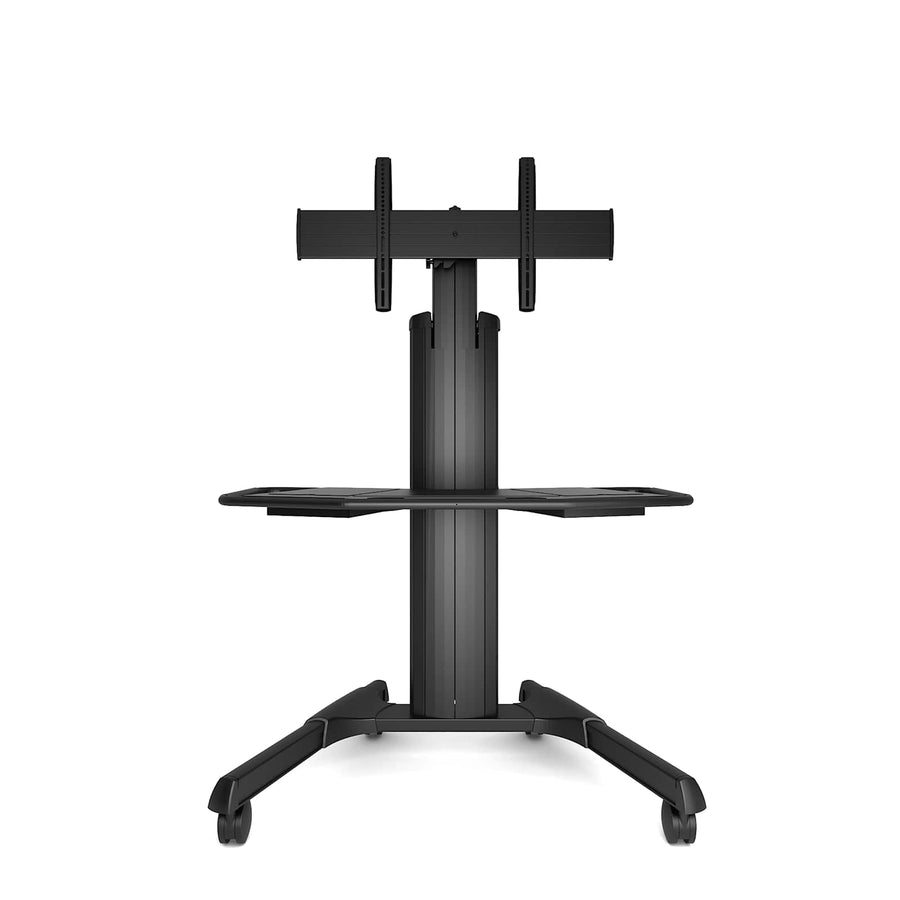

LPAUB, Large Fusion® Manual Height Adjustable Mobile AV Cart
Manual height adjustable mobile AV cart for 42"-86" displays with 200 lbs capacity and tilt adjustability
The LPAUB is a Large Fusion® Manual Height Adjustable Mobile AV Cart designed for professional environments like corporate offices and classrooms. This floor-cart supports a single display with a weight capacity of 200 lbs (90.7 kg) and fits typical screen sizes ranging from 42" to 86" (1067–2184 mm). It features a VESA mounting pattern of 200 x 200mm to 800 x 400mm, allowing for versatile installation of various large-format displays. The cart provides +/- 5° of tilt and micro-adjustment capabilities to ensure the screen is positioned correctly for viewers. Height adjustment can be performed by a single person using either a hand or a 1/2" hex bit on a power drill. This UL Listed cart includes post-installation leveling rolls for stability on different floor surfaces. For a finished installation, users can add Chief Fusion® Universal Back Covers to provide an aesthetic covering for the rear of the display, mount, and components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 49.5" x 31.5" x 7.5" (125.7 x 80 x 19.1 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt, Micro-Adjustable, Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
All other specifications 8
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +/- 5° |
| UPC | 841872155951 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 400mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Fusion® Center Channel Speaker, Large Displays
FCA830$172.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Fusion® Small Storage Accessory, PC
FCA510$200.80

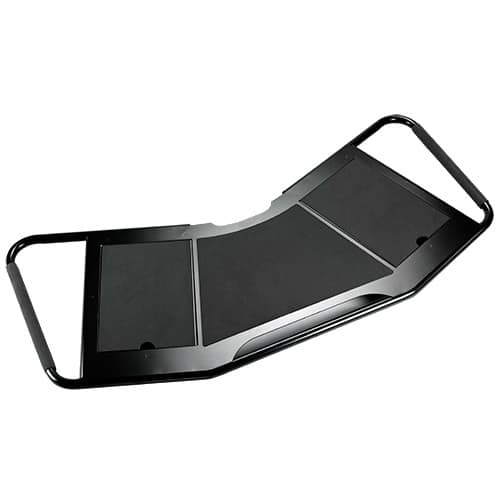

FCA613B, Fusion® Large Height-Adjustable Accessory Shelf, Black
FCA613B$456.00
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Carts and Stands Medium CPU Holder - FCA651B
FCA651B$265.60
Verified fitment
Questions about this part
Will the LPAUB fit my specific display model?
The LPAUB is verified against 5,600 display models from 257 manufacturers, including Samsung 400CX, LG 100QNED85AU, and Panasonic EJMLA37EW.
What accessories are required for components and speakers?
While the cart supports various add-ons, items like the FCA810 8-inch shelf, FCA650B Large CPU Holder, or FCA821 14-inch Camera Shelf are sold separately.
How is the height adjusted on this mobile cart?
The cart features manual height adjustment that can be operated by one person using either a hand or a 1/2" hex bit on a power drill.
Can this cart be used in portrait orientation?
Portrait orientation is possible if the screen is at least 27" tall and has a 400 x 400mm mounting pattern or smaller.
What tools are needed for installation?
An installer will need a 1/2" hex bit for the power drill to facilitate height adjustments during the setup process.
