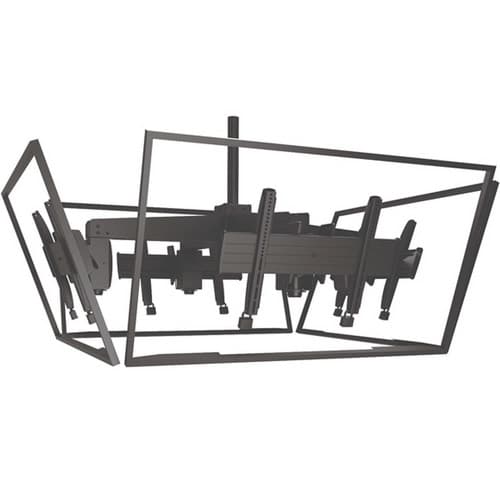

LCM Large Ceiling Multi-Directional Solutions-LCM4U
Ceiling quad-mount for 32"–65" displays, supporting 4 screens with 360-degree viewing and Centris® fingertip tilt
The Chief LCM4U is a multi-directional quad-mount system designed to support four displays from a single ceiling column drop. Part of the Fusion® Ceiling series, this mount provides 360-degree viewing capability, making it a versatile solution for high-impact digital signage or video walls. The LCM4U accommodates a typical screen size range of 32" to 65" (813–1651 mm) and supports VESA mounting patterns from 200 x 200mm to 600 x 400mm. Each of the four displays can be serviced using Centris® fingertip tilt technology, allowing for effortless adjustment. The system features a continuous tilt range of +5° to -20° with four distinct locking points to ensure precise, repeatable positioning without guesswork. This unit is UL Listed and TAA Compliant. To complete the installation, the installer must order a ceiling plate and an extension column separately. This solution is compatible with both traditional 1.5" NPT and the newer CPA pinned ceiling plate and column systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 56 in (142.2 cm) |
| Height | 18.7 in (47.5 cm) |
| Overall Dimensions | 18.7" x 56.0" x 56.0" (475 x 1422 x 1422 mm) |
| Product Weight | 109 lbs (49.4 kg) |
| Shipping Weight | 143 lbs (64.9 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 85 lbs (38.6 kg) |
| Width | 56 in (142.2 cm) |
All other specifications 12
| Adjustability | Tilt |
| Adjustments | Roll: 3° |
| Application | Ceiling |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| Tilt | +5° and - 20° |
| UPC | 841872159751 |
| VESA Mounting Pattern | 200 x 200mm - 600 x 400mm |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Architectural Spanning Adapter
CMA366$150.40
Internal Joist Mount
CMA385$135.20
Unistrut Adapter
CMA370$23.20
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate in White
CMA115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in White
CMA100W$208.00
Verified fitment
Questions about this part
Will the LCM4U fit my displays?
The LCM4U is verified against 9,868 display models from 255 manufacturers, including Samsung 320MP, LG 32CL40, and Panasonic 55VW3KD.
What else do I need to buy to complete the installation?
This SKU is a quad-mount only. You must separately purchase a Chief ceiling plate and an extension column, such as the CMS0305 adjustable column.
How do I adjust the screen angle once it is mounted?
The mount utilizes Centris® fingertip tilt technology, allowing you to adjust the display angle without specialized tools.
What is the maximum weight capacity per display?
The system has a total weight capacity of 85 lbs (38.6 kg) for the display load.
Which document should I use for submittals?
For technical drawings, refer to the LCM4U Technical Drawing (PDF) or the LCM4U FCA4U Installation Manual (PDF).
